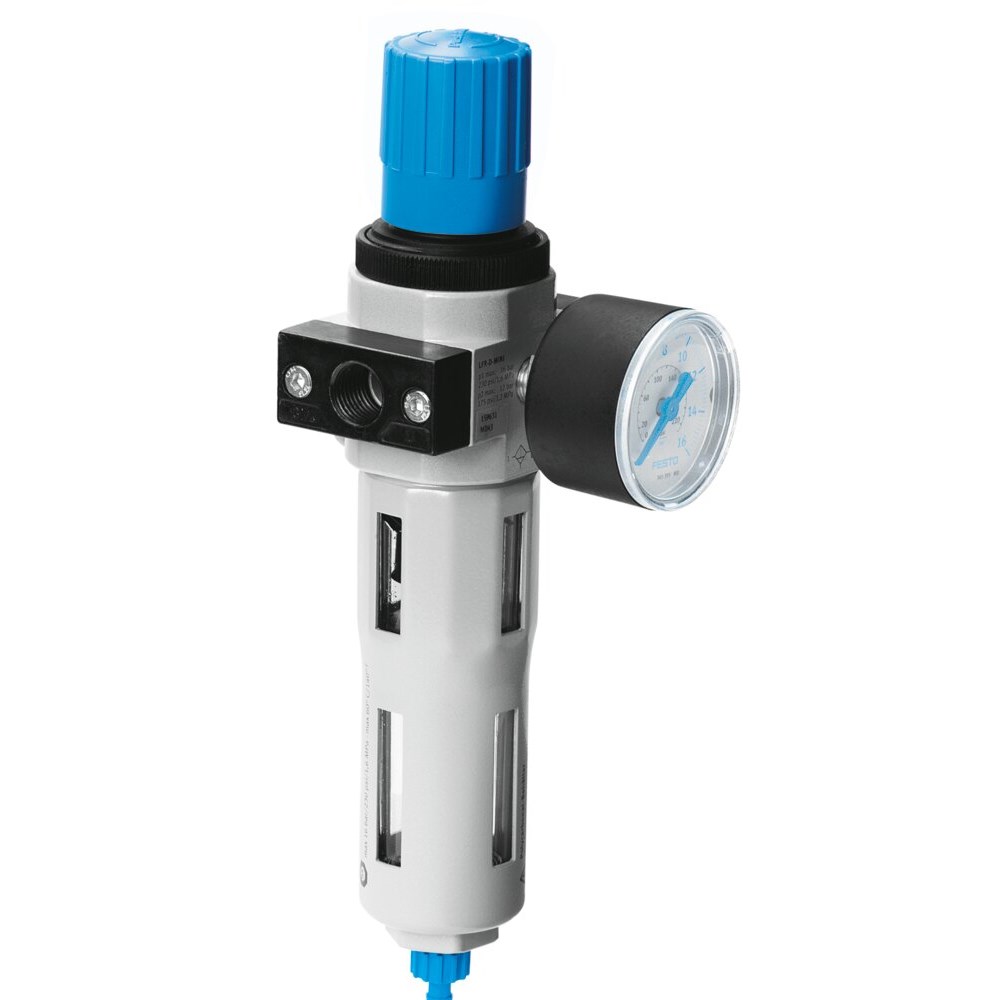

FESTO Mini Filter Regulator – LFR-1/4-D-5M-MINI-A
A compact and reliable air preparation unit designed to regulate pressure and filter contaminants, ensuring clean and consistent air supply for pneumatic systems. Featuring a built-in pressure gauge and fully automatic drain, it provides effortless monitoring and maintenance in tight machine spaces or light industrial setups.
Features
- Mini compact size
- Integrated pressure gauge
- 5 µm filtration for clean, protected air tools and components
- Fully automatic condensate drain
- Rotary locking knob for secure adjustment
- Metal bowl guard for durability and safety
- Suitable for vertical installation
Specifications
- Port Size: G1/4
- Filtration Grade: 5 µm
- Pressure Regulation Range: 0.5 to 12 bar
- Operating Pressure: 2 to 12 bar
- Flow Rate: 1200 L/min (DIN 1343)
- Max Condensate Capacity: 22 ml
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010)
- Air Quality at Outlet: ISO 8573-1:2010 [6:8:4]
- Ambient & Media Temperature: 5°C to 60°C
- Corrosion Resistance: CRC2 (Moderate)
- Housing Material: Die-cast zinc
- Bowl Material: Polycarbonate
- Mounting: In-line or with fittings
