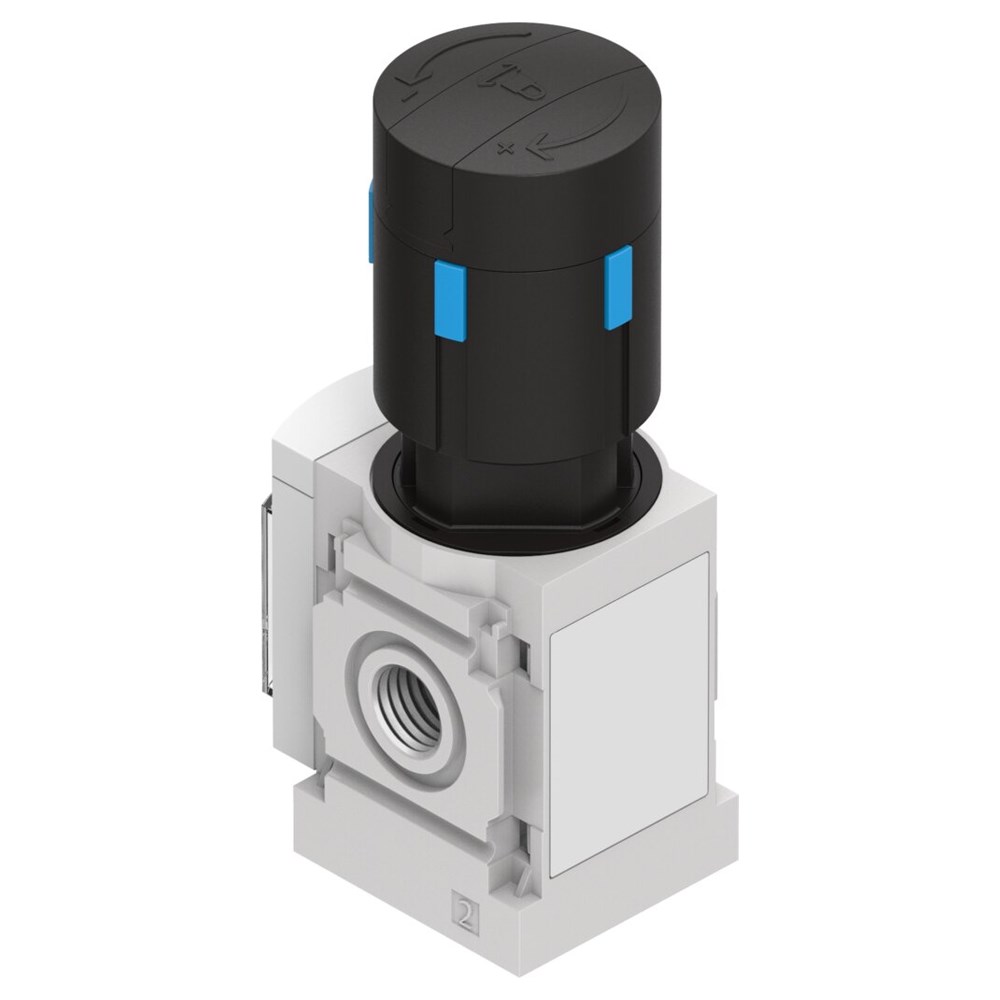

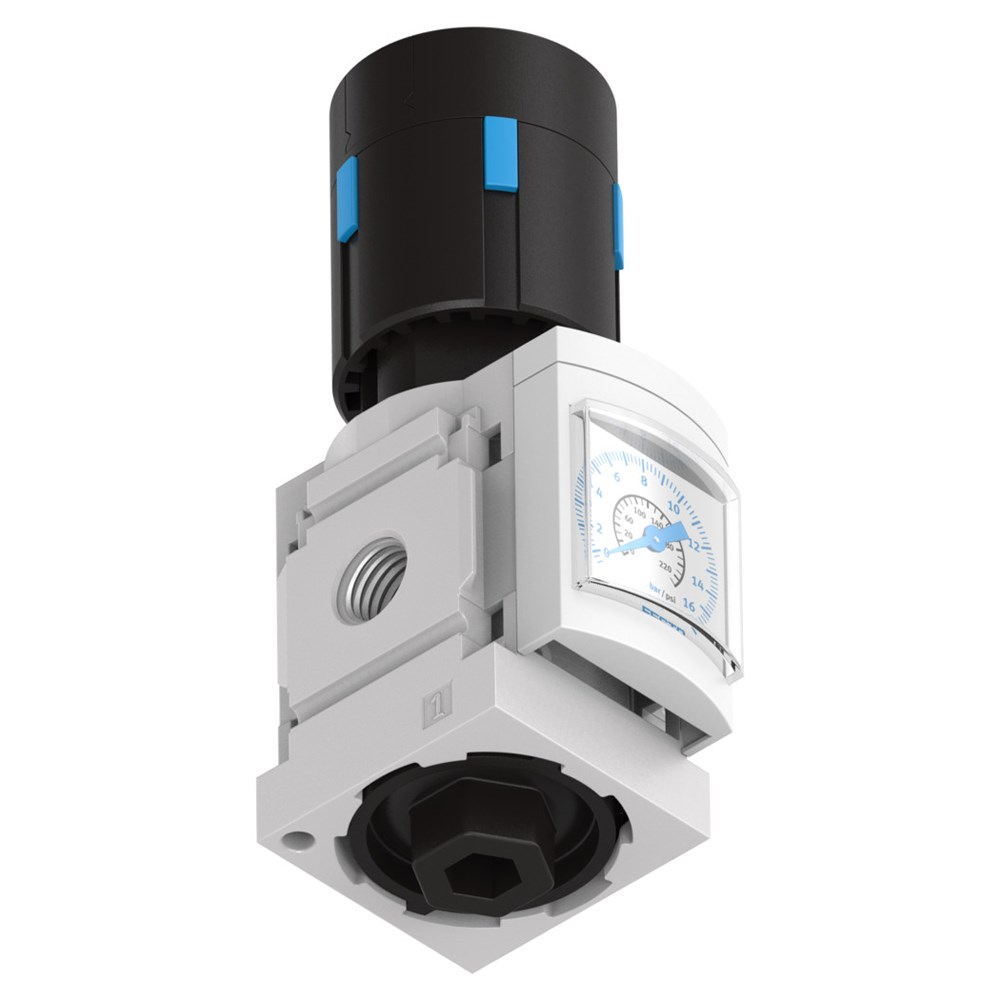

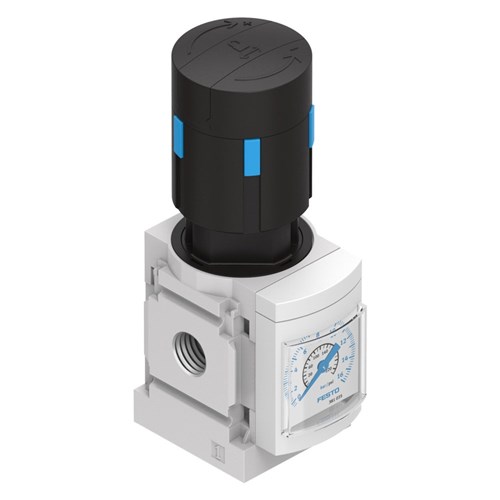

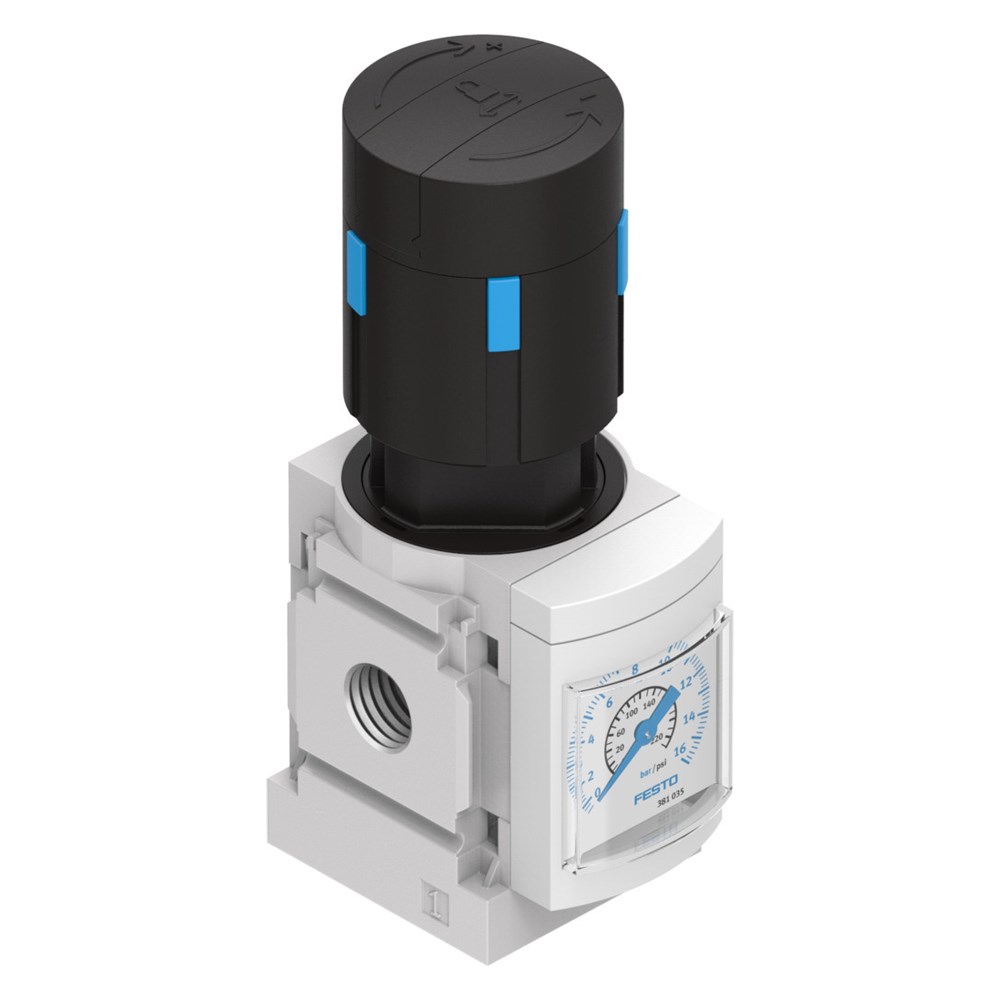

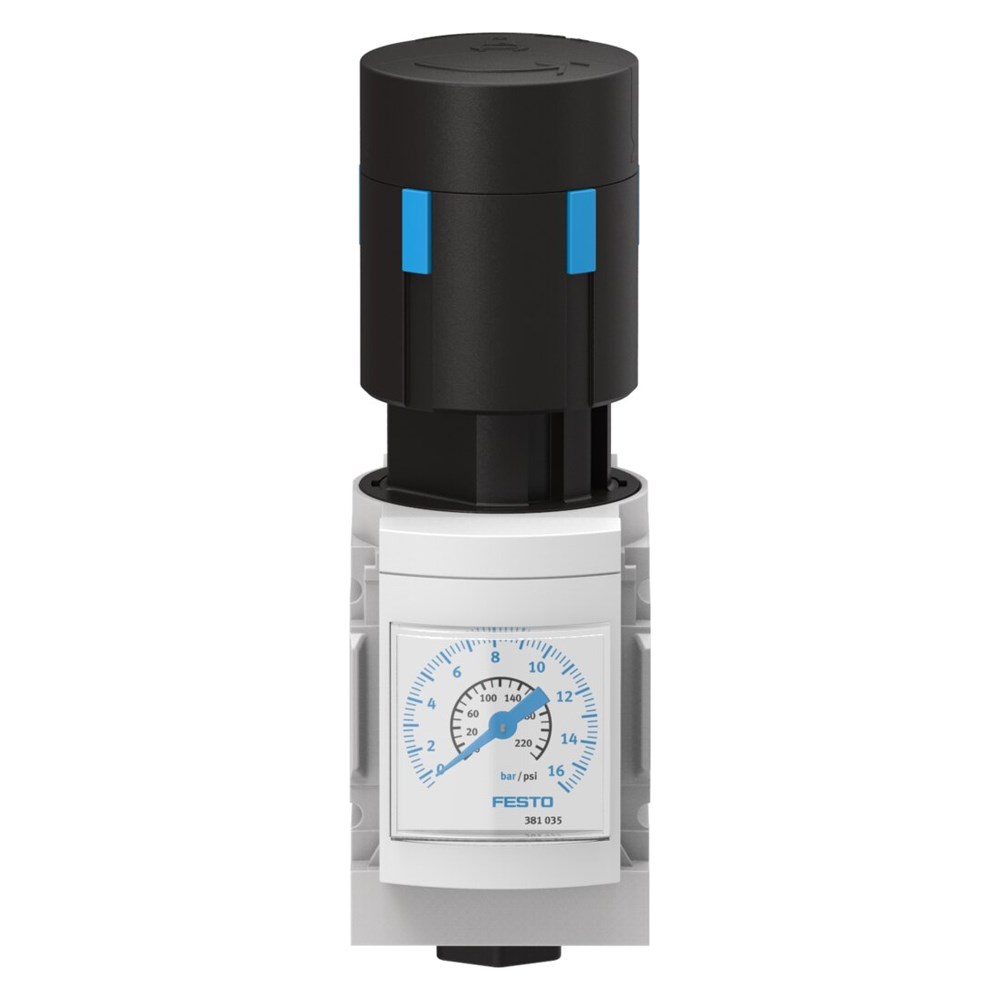

FESTO Pressure Regulator 1/8" – MS4-LR-1/8-D7-AS
Compact and precise, this directly actuated diaphragm regulator with integrated pressure gauge ensures stable and accurate pressure control for pneumatic systems. Ideal for front panel or in-line mounting, it delivers reliable performance in industrial and food-safe environments.
Features
- Directly actuated diaphragm for precise pressure control
- Rotary knob with detent for secure adjustment
- Maintains constant output pressure with secondary venting and return flow
- Integrated pressure gauge for easy monitoring
- Supports optional front panel or in-line mounting
Specifications
- Size: 4
- Series: MS
- Operating Pressure: 0.8–14 bar
- Pressure Regulation Range: 0.5–12 bar
- Flow Rate: 1000 L/min (DIN 1343)
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010 [7:4:4])
- Media & Ambient Temperature: -10°C to 60°C
- Max Pressure Hysteresis: 0.25 bar
- Corrosion Resistance: CRC2 (Moderate)
- Mounting: Front panel or in-line with accessories
- Port Size: G1/8
- Housing & Sub-base Material: Die-cast aluminium
- Control Panel Material: PA / POM
- Seals & Membrane: NBR
- Weight: 225 g
- RoHS Compliant
