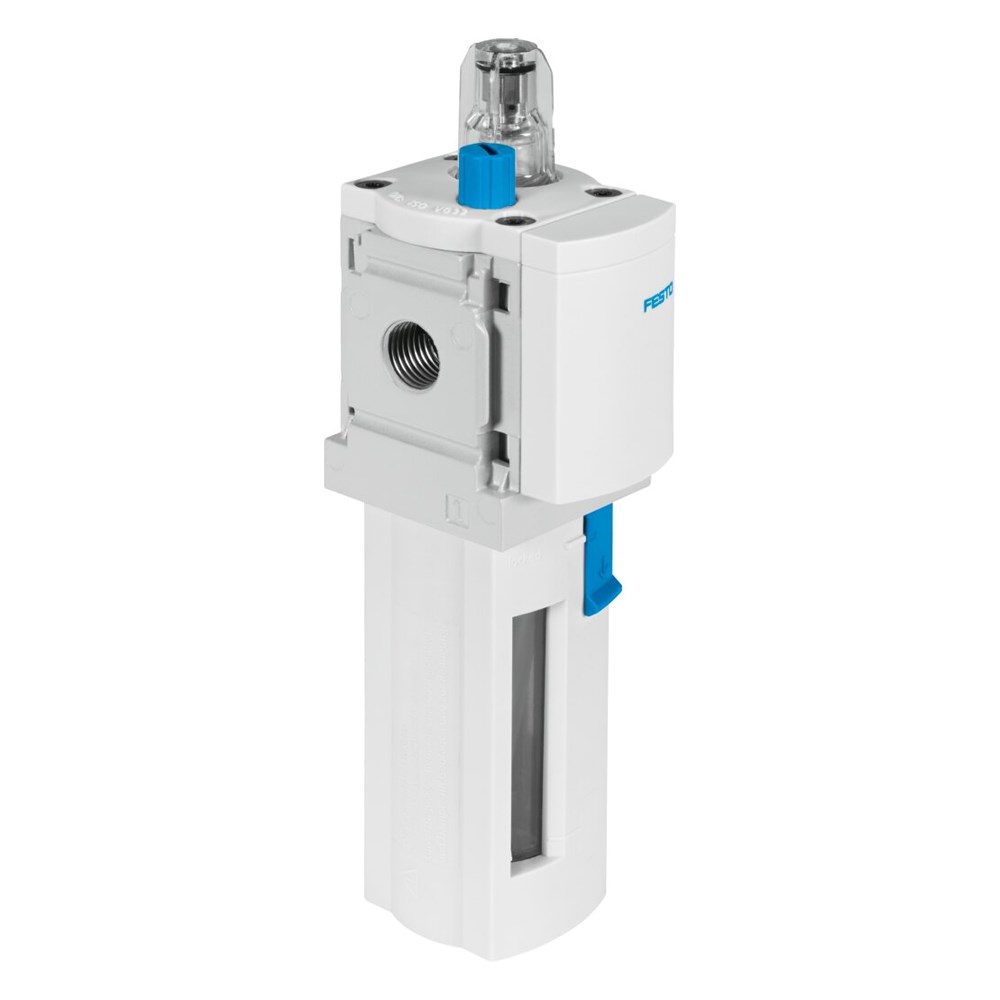

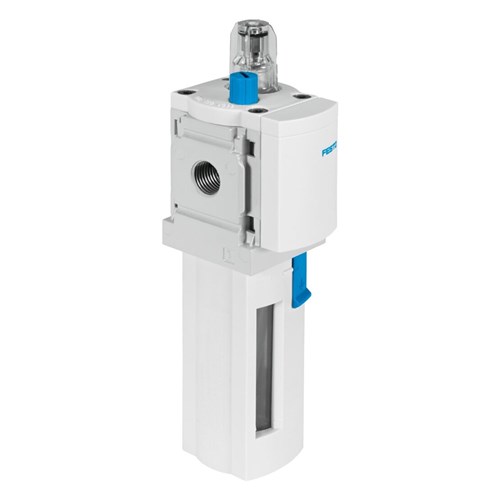

FESTO Modular Lubricator 1/4" – MS4-LOE-1/4-R
This proportional mist lubricator provides precise oil delivery to pneumatic systems, ensuring smooth operation and extended component life. Compact and versatile, it supports vertical or in-line mounting and is suitable for industrial and food-safe applications.
Features
- Proportional standard mist lubrication for consistent performance
- Max oil capacity 30 cm³ for extended operation
- Plastic bowl guard for safety and durability
- Suitable for vertical mounting
- Supports lubricated operation when required
Specifications
- Size: 4
- Series: MS
- Operating Pressure: 1–12 bar
- Flow Rate: 2200 L/min (DIN 1343)
- Min Flow Rate for Lubrication: 40 L/min
- Operating Medium: Compressed air or inert gases (ISO 8573-1:2010 [7:4:4])
- Media & Ambient Temperature: -10°C to 60°C
- Oil Viscosity: ISO VG 32
- Corrosion Resistance: CRC2 (Moderate)
- Mounting: In-line or with accessories
- Port Size: G1/4
- Housing Material: Die-cast aluminium
- Bowl Material: PC
- Weight: 194 g
- RoHS Compliant
