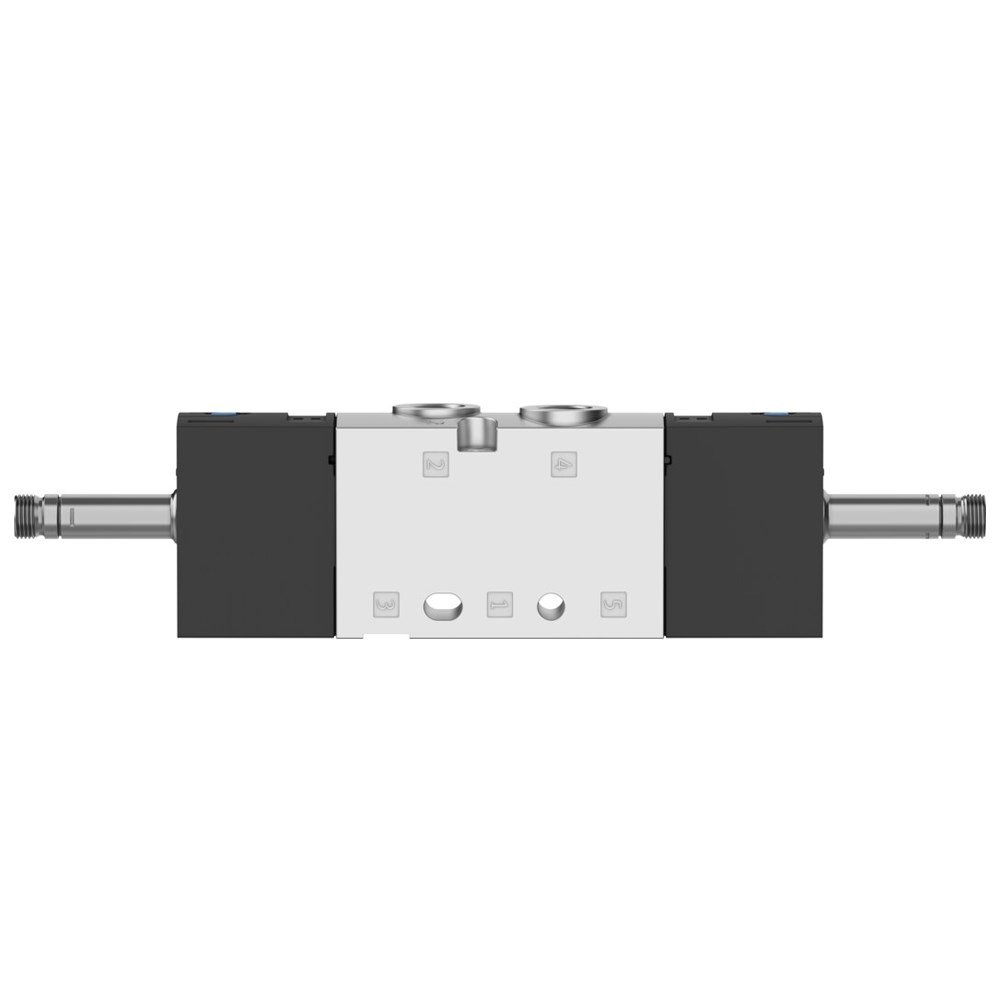

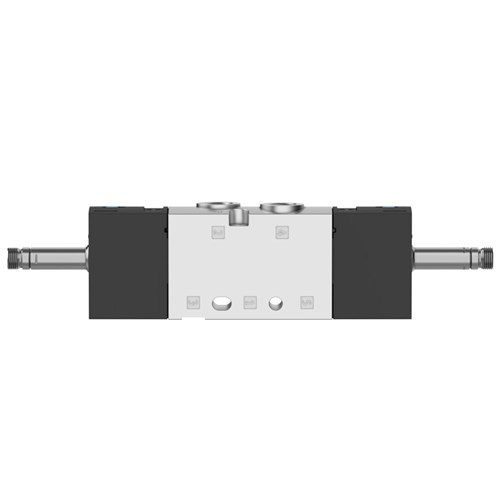

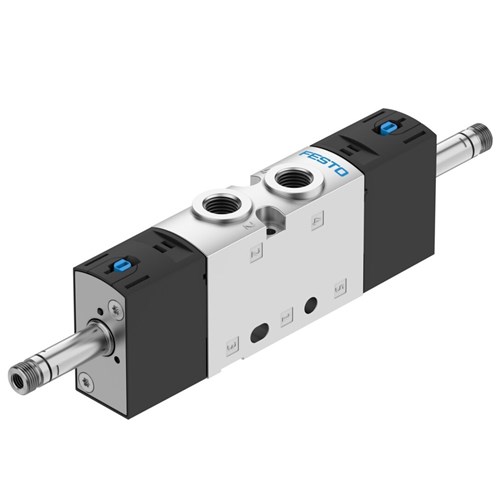

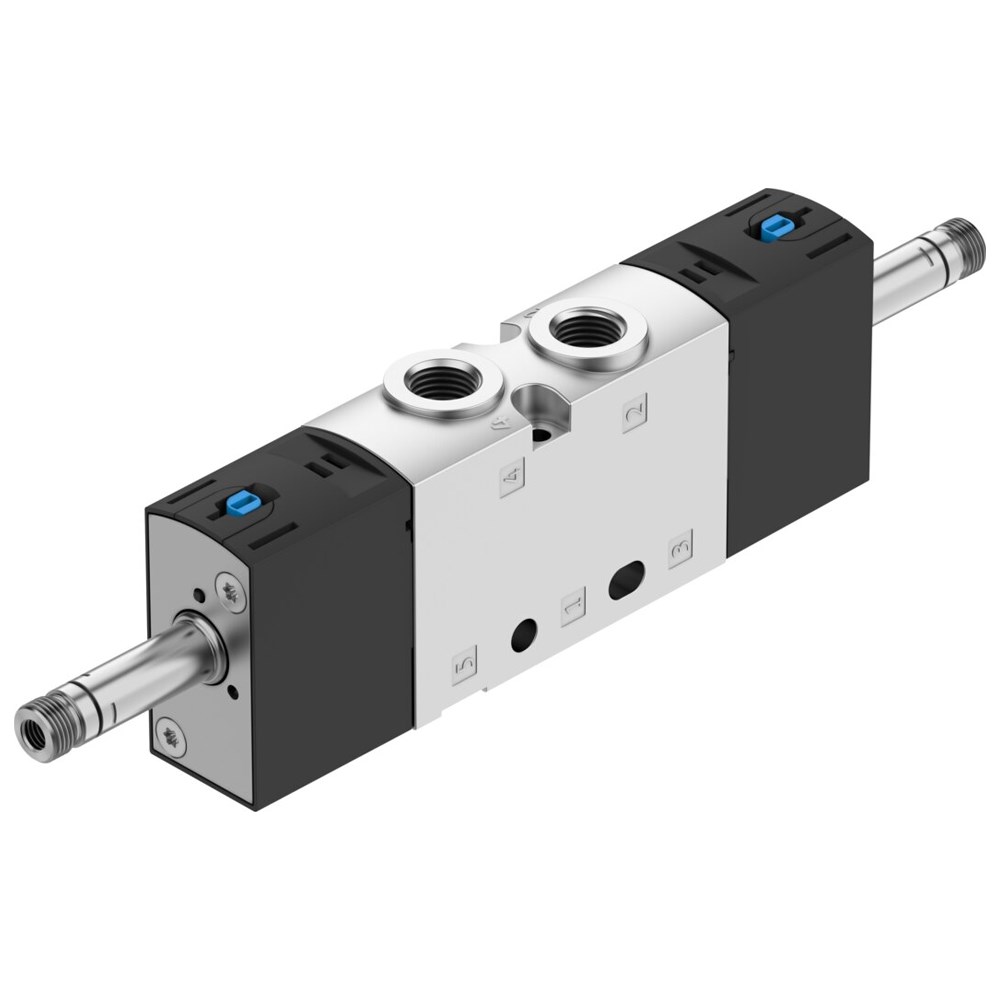

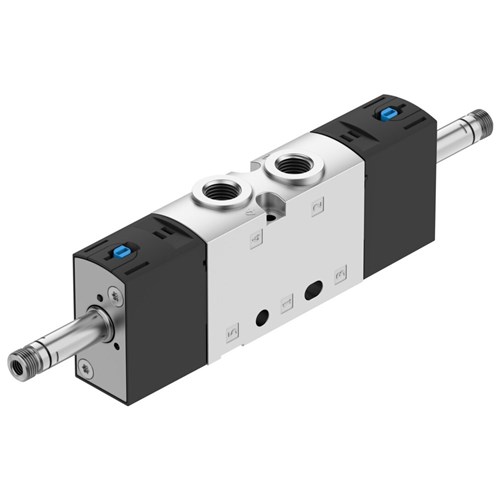

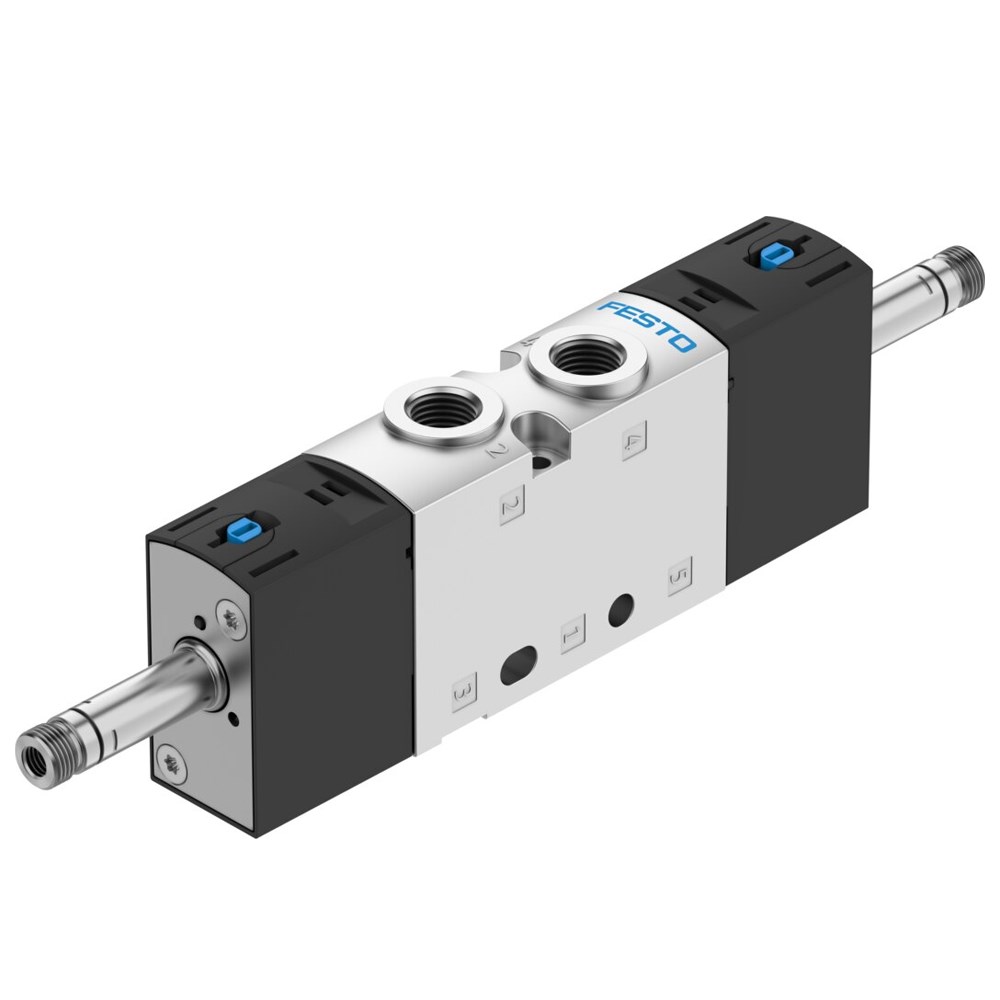

Festo VUVS-L20-P53C-MD-G18-F7 5/3 Centre Closed Solenoid Valve – 1/8" Ports (Without Coil)
The Festo 5/3 centre-closed solenoid valve is designed for precise control in industrial pneumatic systems, automation setups, and compressed air applications. With a piston gate design and soft sealing principle, this valve ensures reliable operation under moderate corrosion stress while maintaining fast switching times. Pilot-actuated and mechanically spring-reset, it is suitable for manifold or individual mounting and compatible with compressed air according to ISO 8573-1. Built for durability, it resists vibration, shock, and moderate corrosion, making it ideal for factory automation, process control, and industrial machinery.
Features

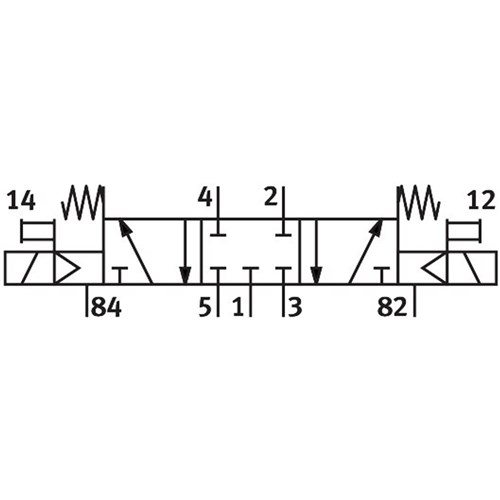

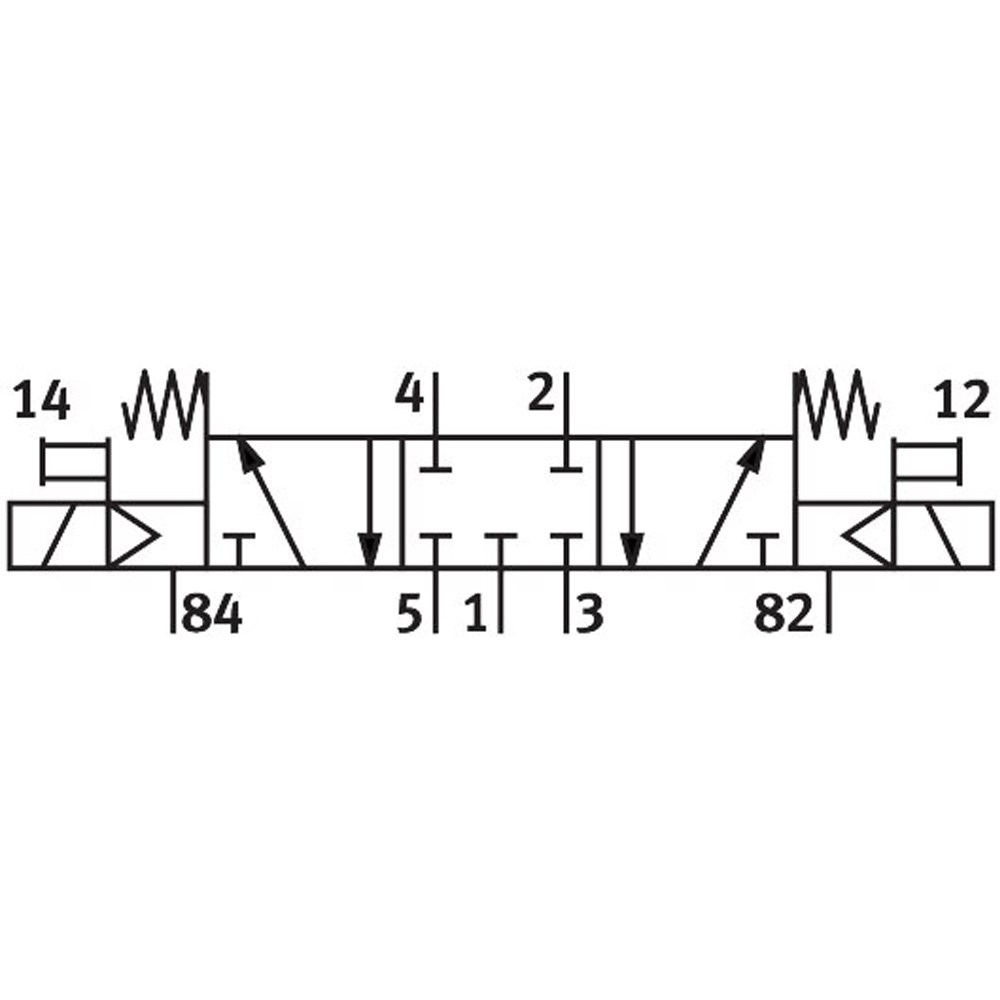

- 5/3 centre-closed valve function for precise control
- Electric actuation with pilot operation
- Soft-sealed piston gate design
- Optional detenting or non-detenting manual override
- High corrosion and shock resistance for industrial applications
- Suitable for compressed air and lubricated operation
- TÜV and UL recognized
- Cleanroom Class 6 rated
- RoHS compliant
Specifications
- Model: VUVS-L20-P53C-MD-G18-F7
- Port Size: G1/8" (Ports 1–5)
- Valve Size: 21 mm
- Nominal Flow Rate: 700 l/min (DIN 1343)
- Operating Pressure: 0.25 – 1 MPa / 2.5 – 10 bar
- Flow Direction: Non-reversible
- Switching Times: On 13 ms / Off 42 ms / Reversal 24 ms
- C Value: 2.9 l/s·bar
- B Value: 0.35
- Type of Reset: Mechanical spring
- Pilot Medium: Compressed air (ISO 8573-1:2010 [7:4:4])
- Media Temperature: -10 °C to 60 °C
- Ambient Temperature: -10 °C to 60 °C
- Mounting: On manifold rail or with through-hole
- Weight: 229 g
- Material Housing: Painted
- Seals: HNBR / NBR
- Piston Slide: High-alloy stainless steel
- Screws: Galvanised steel
- Pilot Exhaust Ports: 82M5, 84M5
- Approvals: c UL us – Recognized
- Certifications: VDMA24364-B1/B2-L, RoHS compliant
