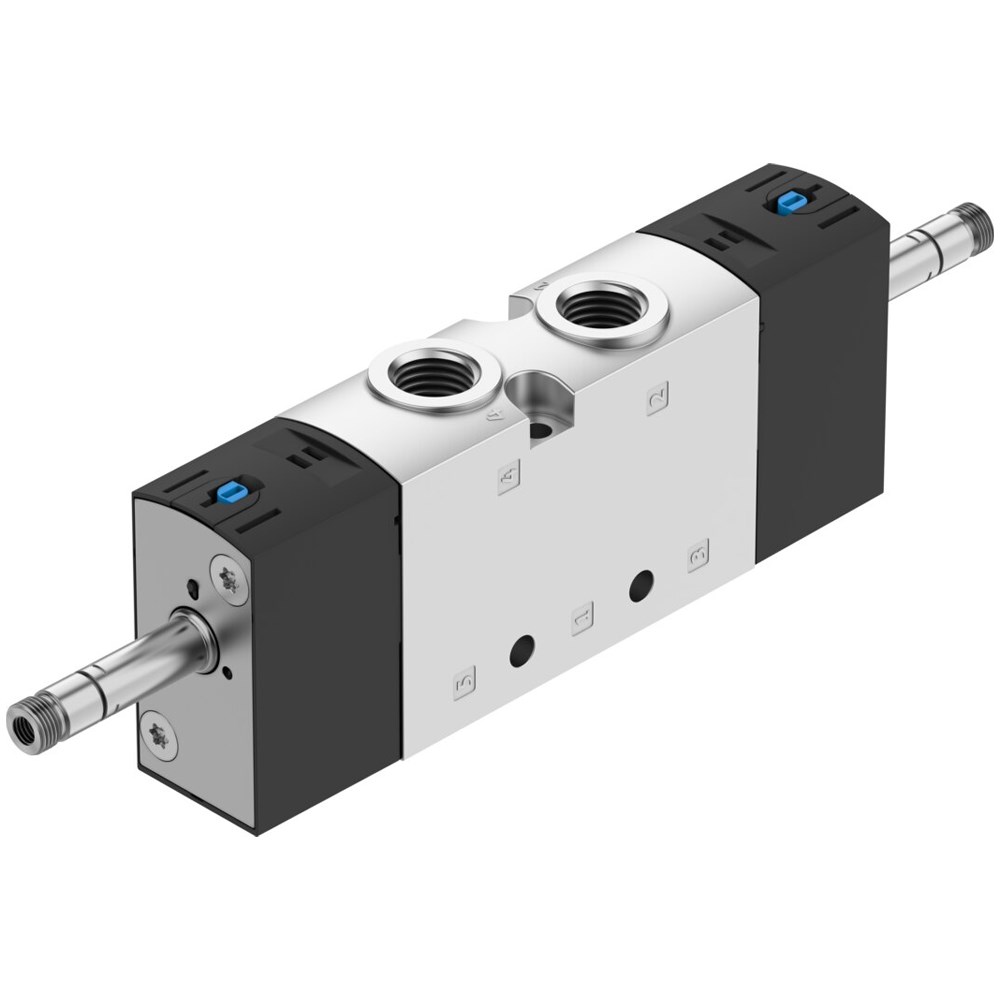

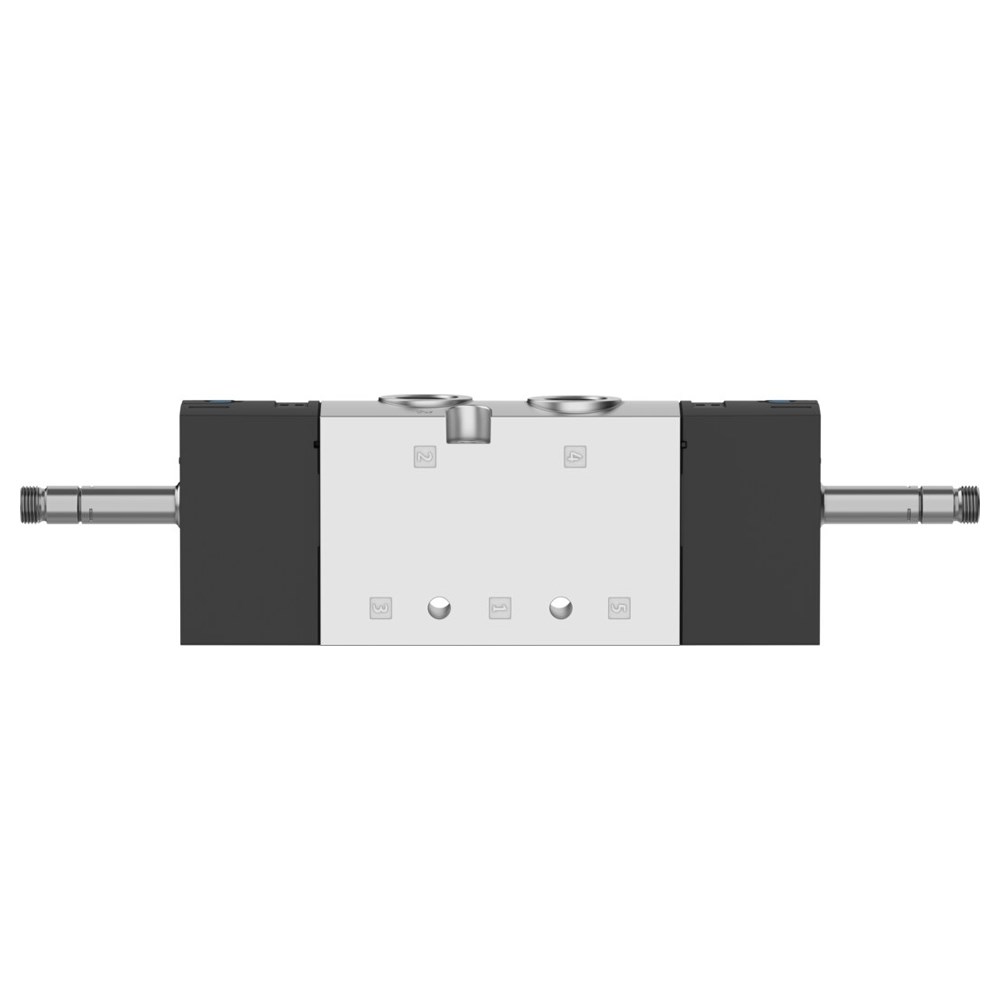

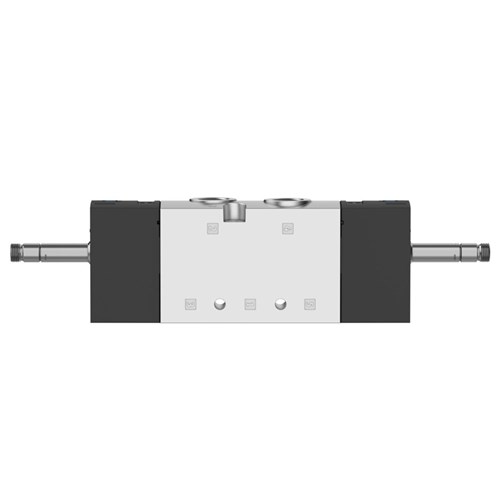

Festo VUVS-L25-P53U-MD-G14-F8 5/3 Pressure Solenoid Valve – 1/4" Ports (Without Coil)
The Festo 5/3-way pressurised solenoid valve is engineered for industrial automation, pneumatic control systems, and compressed air applications requiring reliable pressure maintenance. Featuring a piston gate design with soft sealing, this valve ensures accurate flow control, fast switching times, and durable performance. Pilot-actuated and mechanically spring-reset, it supports manifold or individual mounting and is built to withstand moderate corrosion, vibration, and shock. Ideal for factory automation, machinery, and process control.
Features

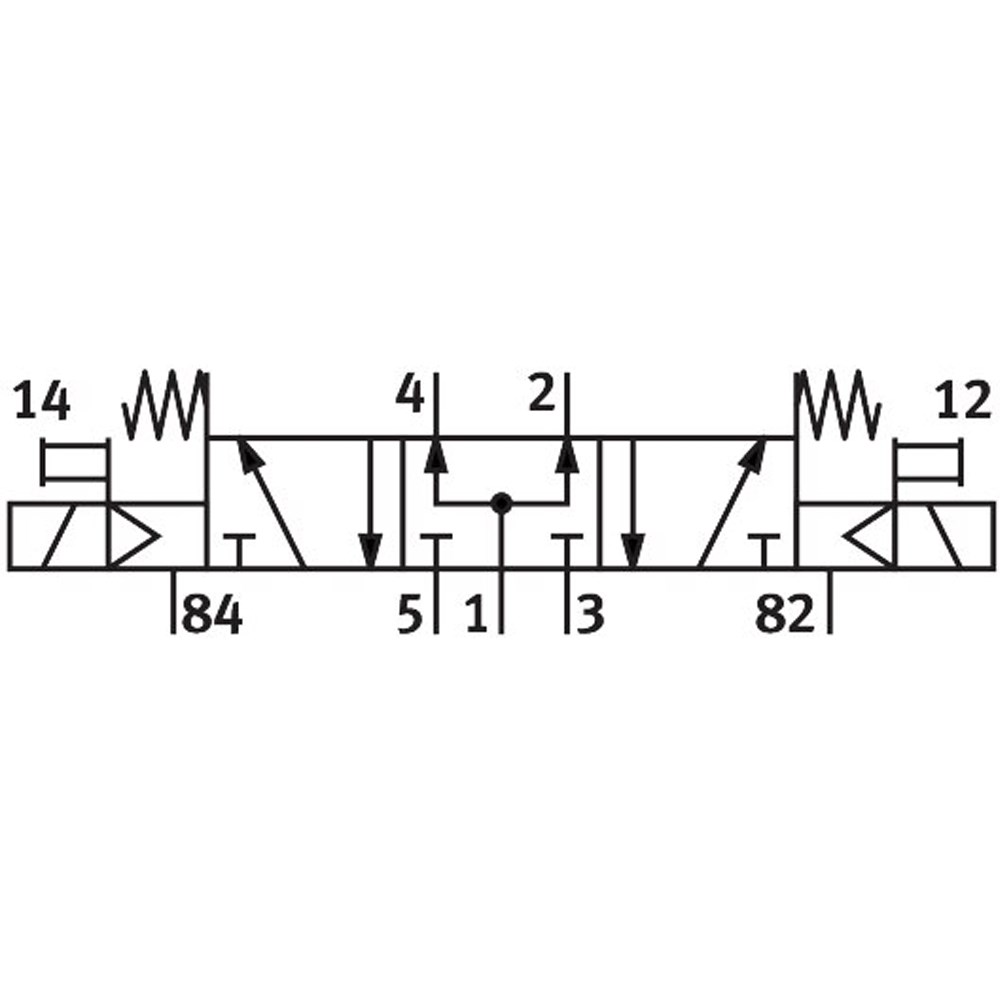

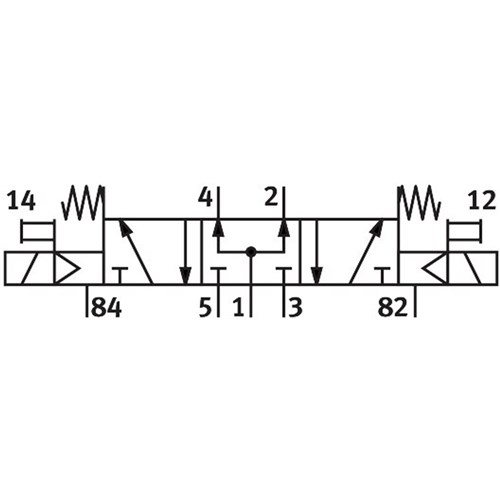

- 5/3-way pressurised valve function for precise pneumatic control
- Electric actuation with internal pilot air supply
- Soft-sealed piston gate design
- Optional detenting or non-detenting manual override
- High corrosion, vibration, and shock resistance
- Suitable for compressed air and lubricated operation
- c UL us recognized and DNVGL maritime classification
- Cleanroom Class 6 rated
- RoHS compliant
Specifications
- Model: VUVS-L25-P53U-MD-G14-F8
- Port Size: G1/4" (Ports 1–5)
- Valve Size: 26.5 mm
- Nominal Flow Rate: 1000 l/min (DIN 1343)
- Operating Pressure: 0.25 – 1 MPa / 2.5 – 10 bar
- Flow Direction: Non-reversible
- Switching Times: On 14 ms / Off 48 ms / Reversal 25 ms
- C Value: 4.3 l/s·bar
- B Value: 0.4
- Type of Reset: Mechanical spring
- Pilot Medium: Compressed air (ISO 8573-1:2010 [7:4:4])
- Media Temperature: -10 °C to 60 °C
- Ambient Temperature: -10 °C to 60 °C
- Mounting: On manifold rail or with through-hole
- Weight: 324 g
- Material Housing: Painted
- Seals: HNBR / NBR
- Piston Slide: Wrought aluminium alloy
- Screws: Galvanised steel
- Pilot Exhaust Ports: 82M5, 84M5
- Certifications: c UL us – Recognized, DNVGL maritime classification, RoHS compliant
