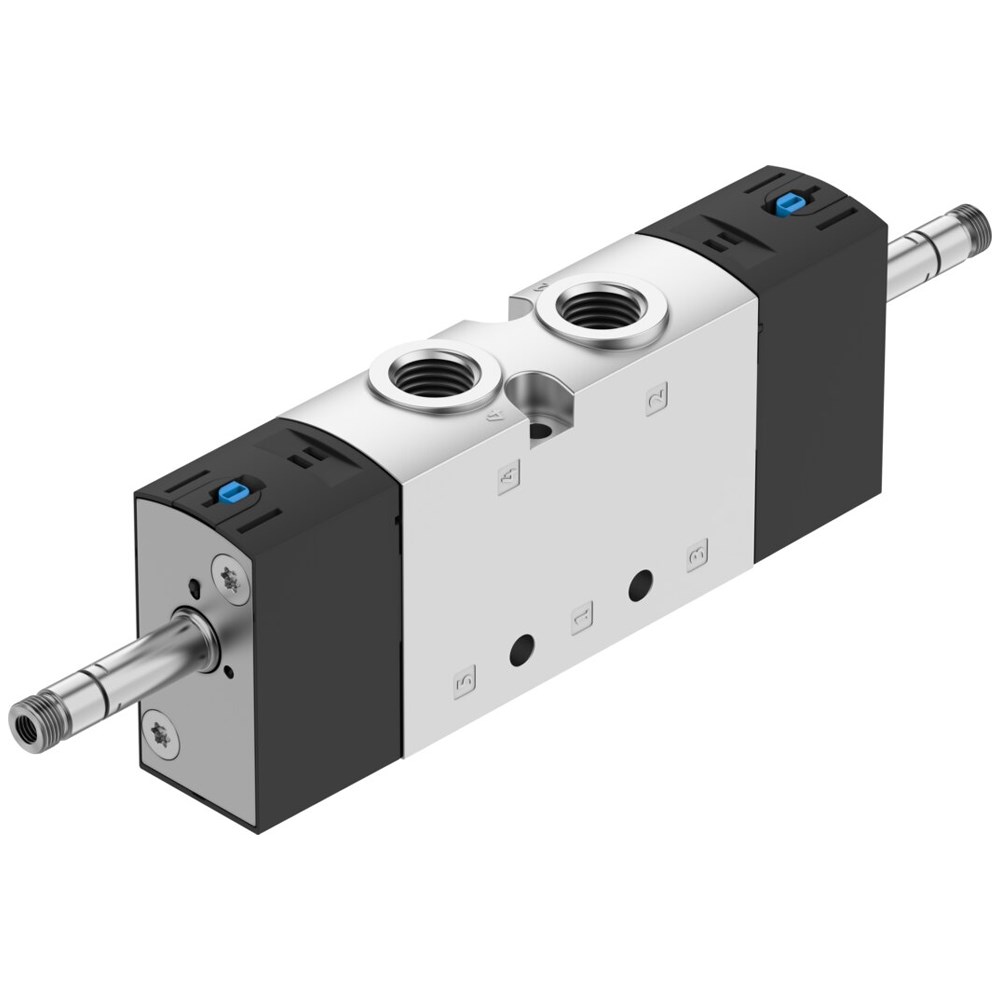

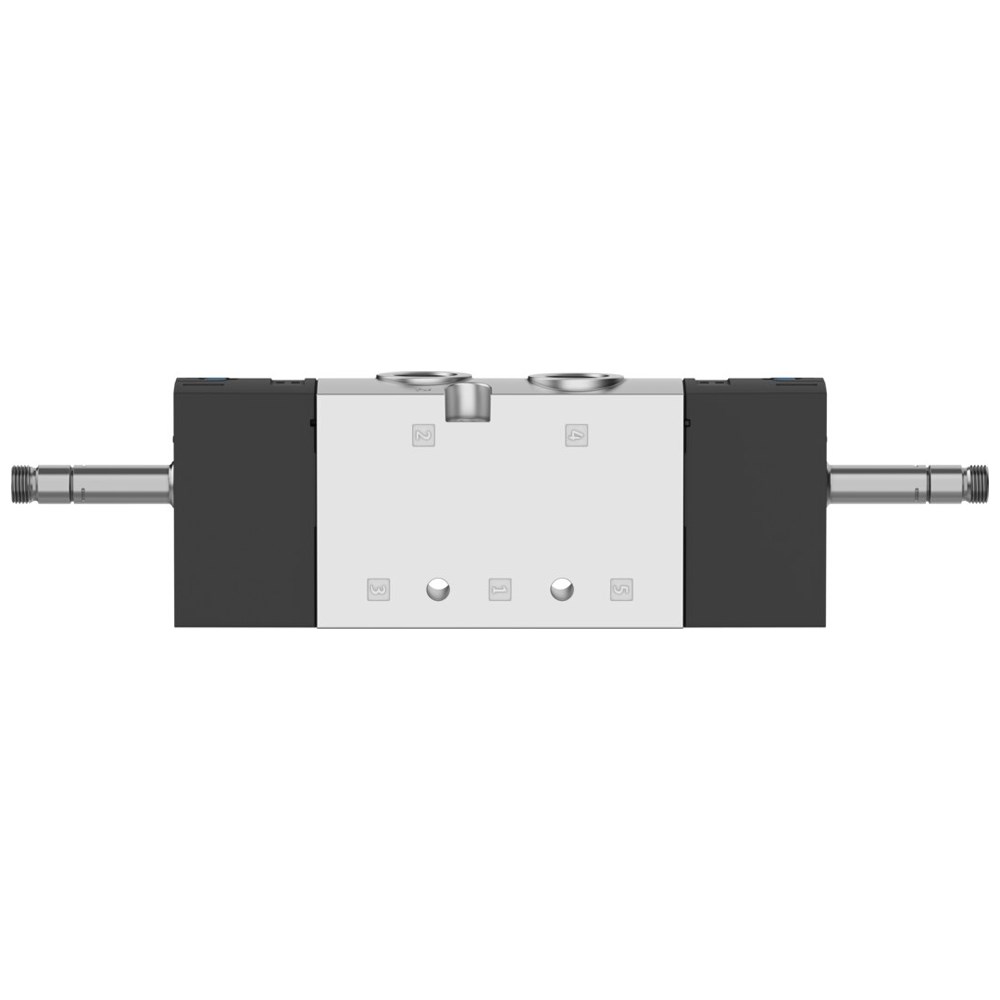

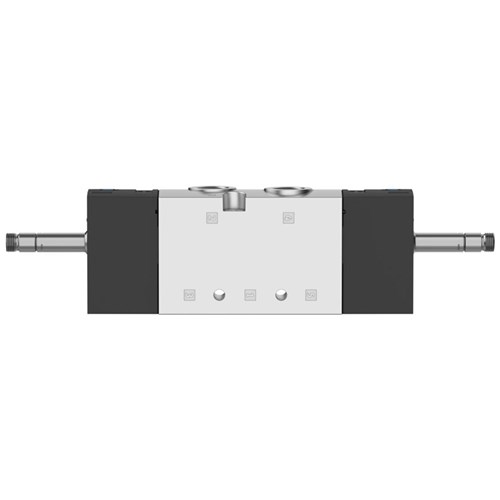

Festo VUVS-L25-P53C-MD-G14-F8 5/3 Centre Closed Solenoid Valve – 1/4" Ports (Without Coil)
The Festo 5/3 centre-closed solenoid valve is engineered for industrial automation, pneumatic control systems, and compressed air applications. Featuring a piston gate design and soft sealing principle, it delivers reliable operation with fast switching times and precise flow control. Pilot-actuated and mechanically spring-reset, this valve is suitable for manifold or individual mounting. Built to withstand moderate corrosion, vibration, and shock, it is ideal for demanding environments in factory automation, machinery, and process control.
Features

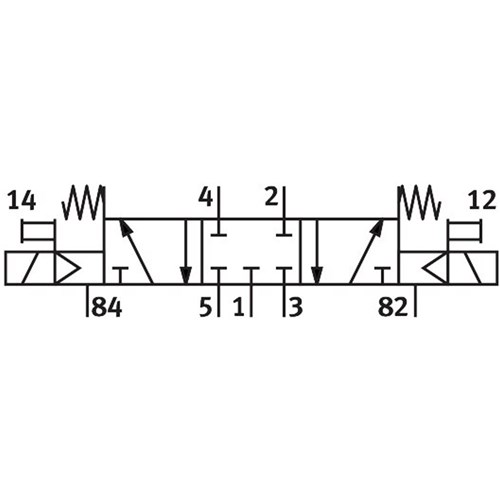

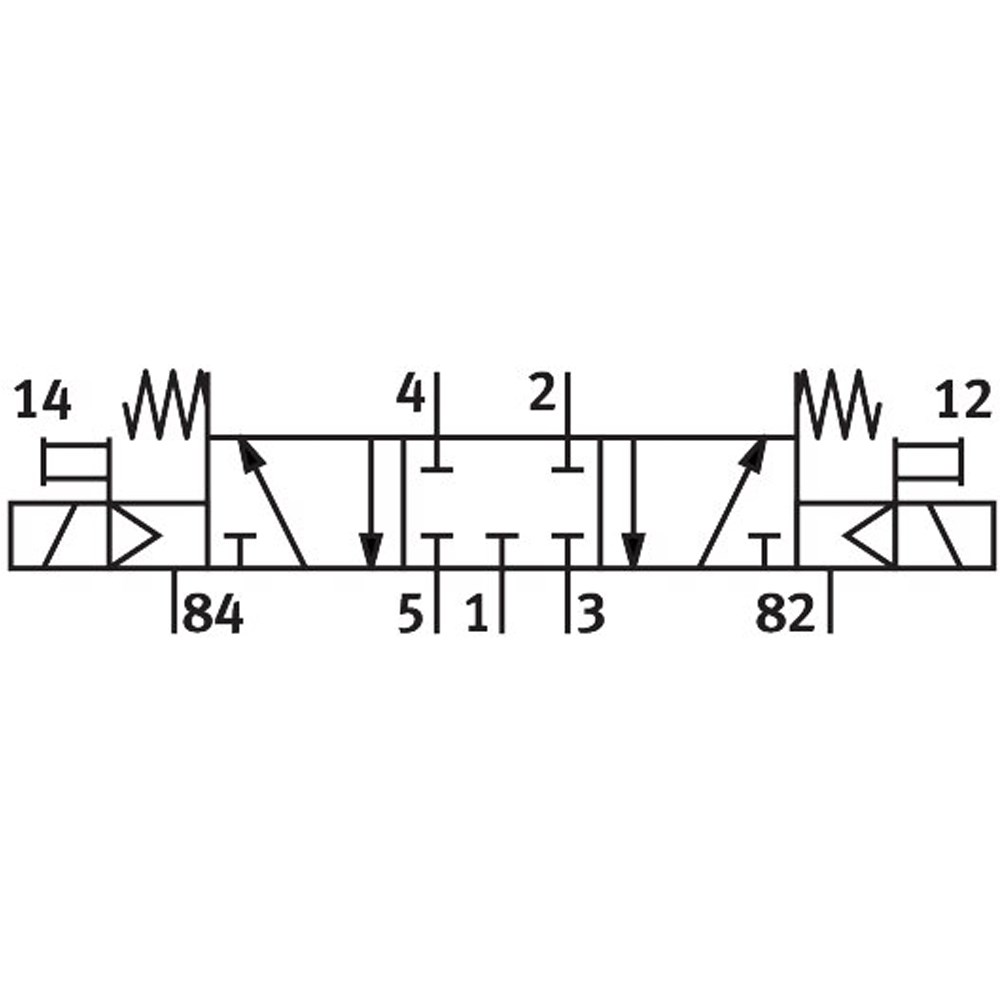

- 5/3 centre-closed valve function for precise pneumatic control
- Electric actuation with internal pilot air supply
- Soft-sealed piston gate design
- Optional detenting or non-detenting manual override
- High corrosion, vibration, and shock resistance
- Suitable for compressed air and lubricated operation
- c UL us recognized and DNVGL maritime classification
- Cleanroom Class 6 rated
- RoHS compliant
Specifications
- Model: VUVS-L25-P53C-MD-G14-F8
- Port Size: G1/4" (Ports 1–5)
- Valve Size: 26.5 mm
- Nominal Flow Rate: 1200 l/min (DIN 1343)
- Operating Pressure: 0.25 – 1 MPa / 2.5 – 10 bar
- Flow Direction: Non-reversible
- Switching Times: On 13 ms / Off 42 ms / Reversal 26 ms
- C Value: 5.2 l/s·bar
- B Value: 0.4
- Type of Reset: Mechanical spring
- Pilot Medium: Compressed air (ISO 8573-1:2010 [7:4:4])
- Media Temperature: -10 °C to 60 °C
- Ambient Temperature: -10 °C to 60 °C
- Mounting: On manifold rail or with through-hole
- Weight: 430 g
- Material Housing: Painted
- Seals: HNBR / NBR
- Piston Slide: Wrought aluminium alloy
- Screws: Galvanised steel
- Pilot Exhaust Ports: 82M5, 84M5
- Certifications: c UL us – Recognized, DNVGL maritime classification, RoHS compliant
