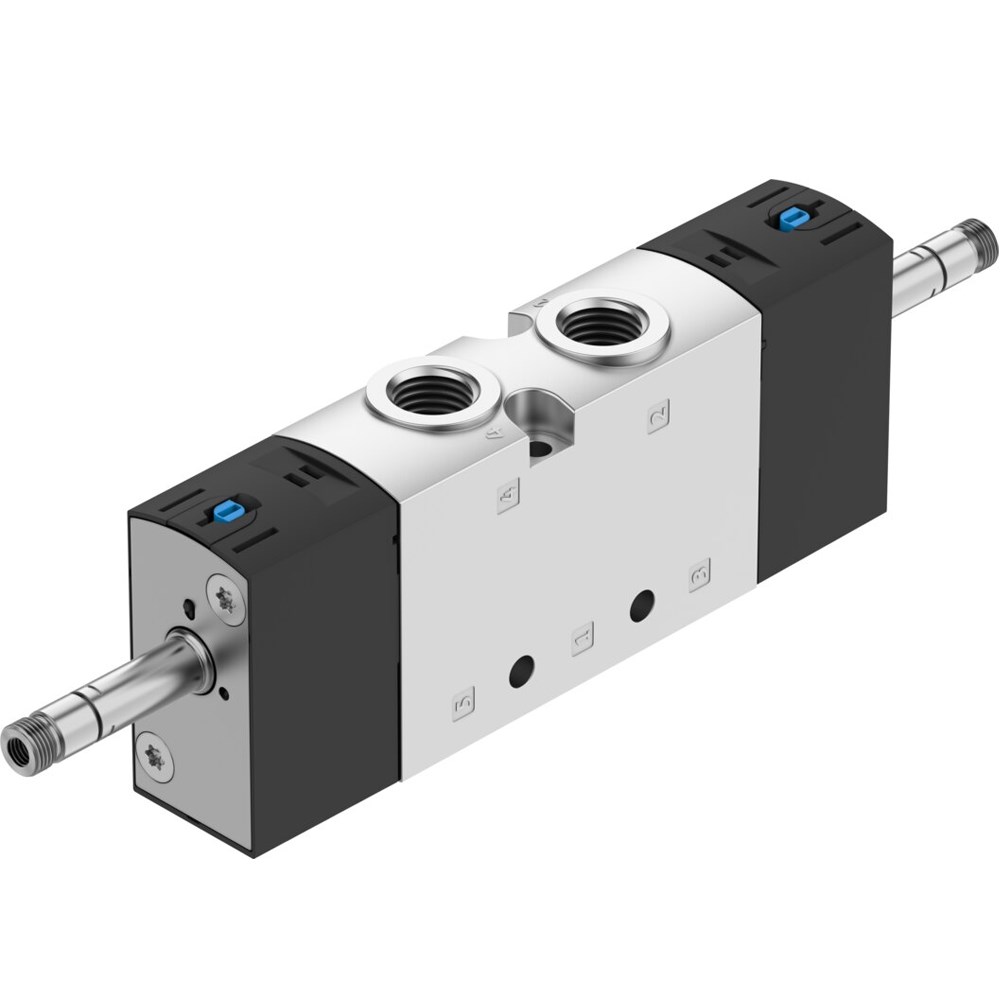

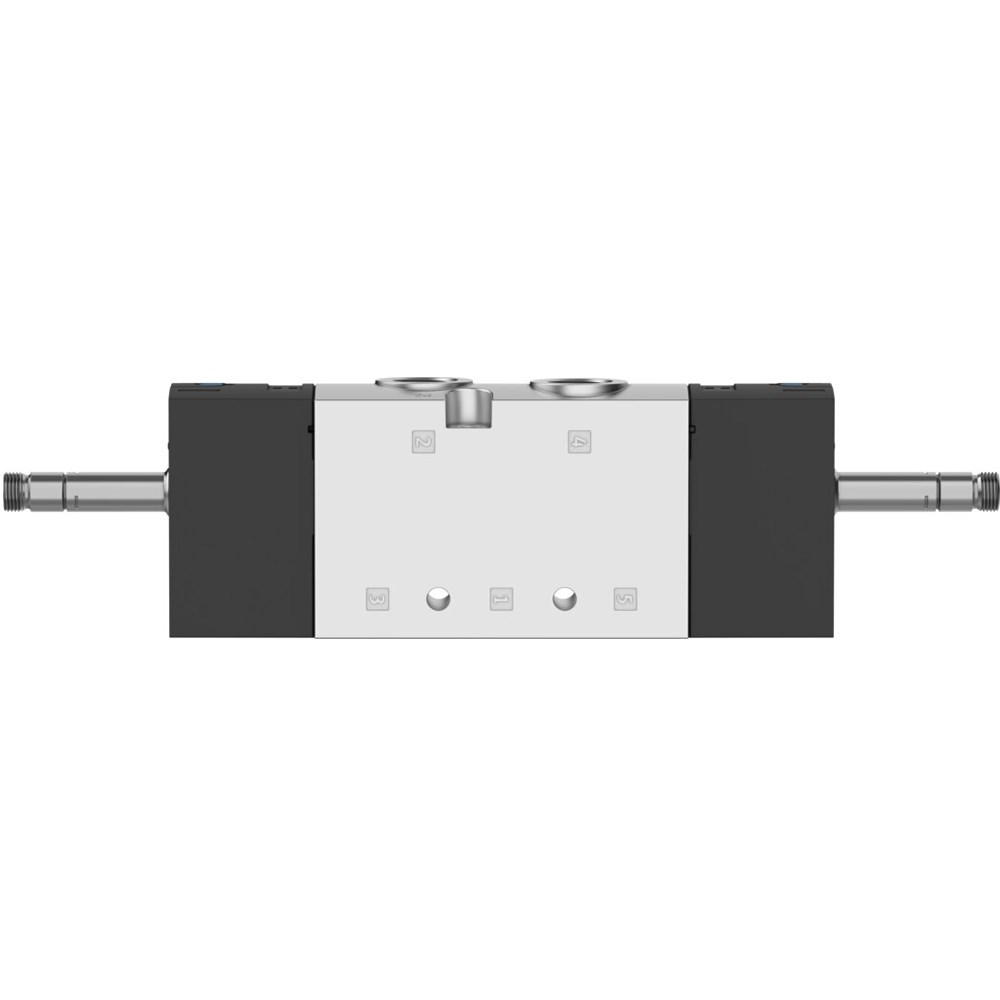

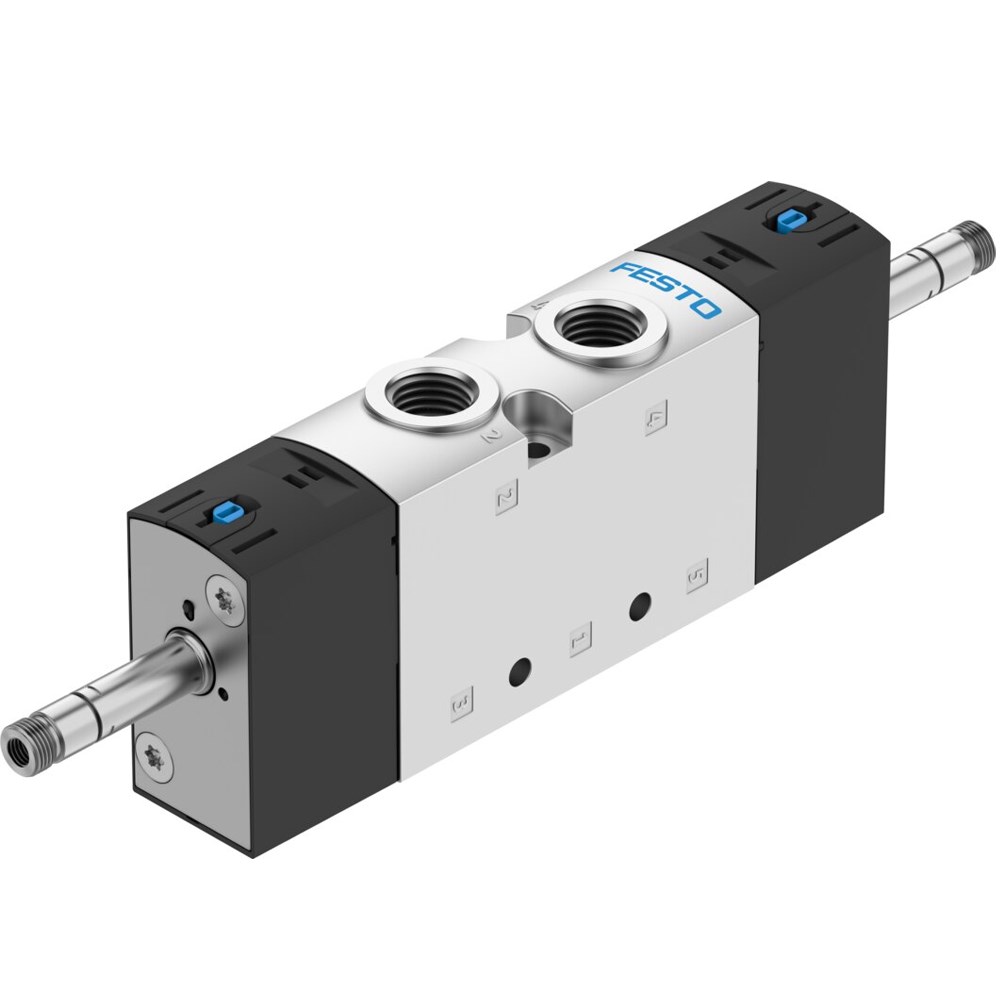

Festo VUVS-L25-P53E-MD-G14-F8 5/3 Centre Exhaust Solenoid Valve – 1/4" Ports (Without Coil)
The Festo 5/3-way centre-exhaust solenoid valve is designed for industrial automation, pneumatic control systems, and compressed air applications requiring reliable venting and precise flow control. With a piston gate design and soft sealing principle, it delivers fast switching times, durable performance, and consistent operation. Pilot-actuated and mechanically spring-reset, this valve is suitable for manifold or individual mounting and is built to handle moderate corrosion, vibration, and shock, making it ideal for factory automation, machinery, and process control.
Features

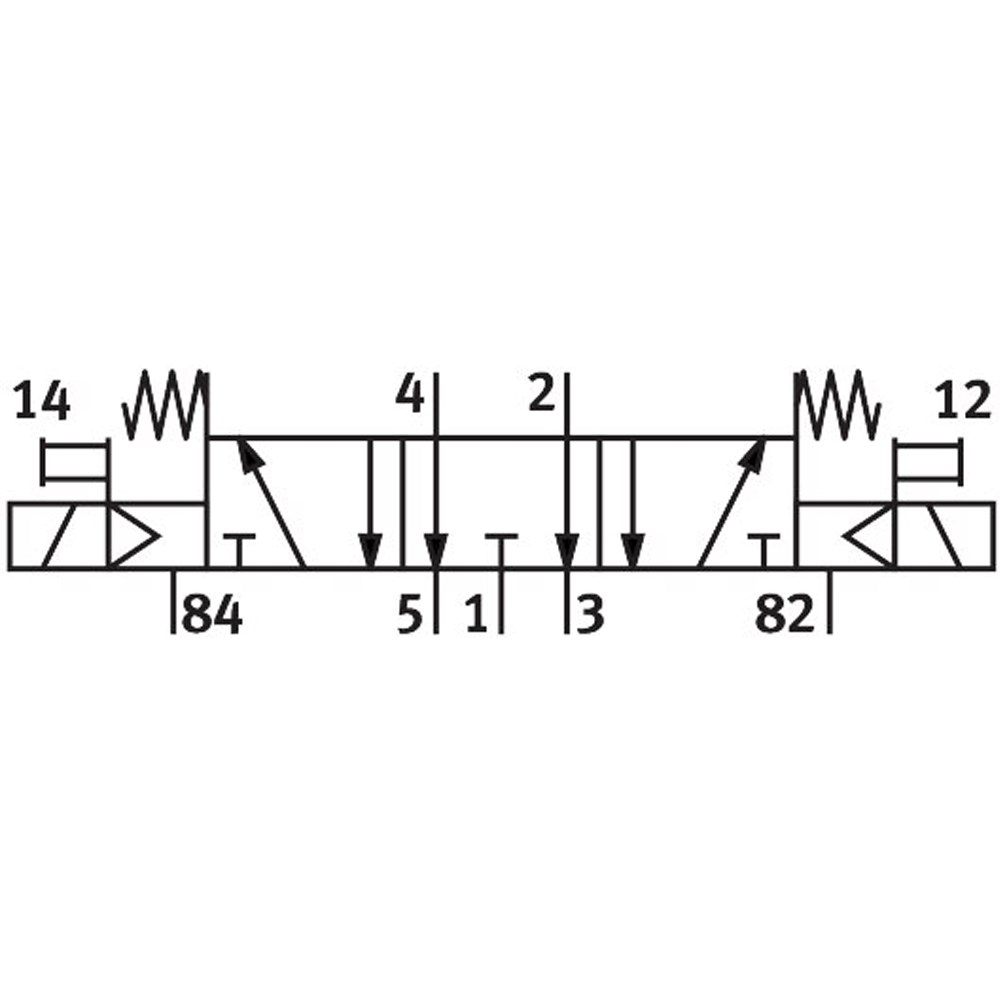

- 5/3-way centre-exhaust valve function for accurate pneumatic control
- Electric actuation with internal pilot air supply
- Soft-sealed piston gate design
- Optional detenting or non-detenting manual override
- High resistance to corrosion, vibration, and shock
- Suitable for compressed air and lubricated operation
- c UL us recognized and DNVGL maritime classification
- Cleanroom Class 6 rated
- RoHS compliant
Specifications
- Model: VUVS-L25-P53E-MD-G14-F8
- Port Size: G1/4" (Ports 1–5)
- Valve Size: 26.5 mm
- Nominal Flow Rate: 1000 l/min (DIN 1343)
- Operating Pressure: 0.25 – 1 MPa / 2.5 – 10 bar
- Flow Direction: Non-reversible
- Switching Times: On 14 ms / Off 48 ms / Reversal 25 ms
- C Value: 4.3 l/s·bar
- B Value: 0.4
- Type of Reset: Mechanical spring
- Pilot Medium: Compressed air (ISO 8573-1:2010 [7:4:4])
- Media Temperature: -10 °C to 60 °C
- Ambient Temperature: -10 °C to 60 °C
- Mounting: On manifold rail or with through-hole
- Weight: 324 g
- Material Housing: Painted
- Seals: HNBR / NBR
- Piston Slide: Wrought aluminium alloy
- Screws: Galvanised steel
- Pilot Exhaust Ports: 82M5, 84M5
- Certifications: c UL us – Recognized, DNVGL maritime classification, RoHS compliant
