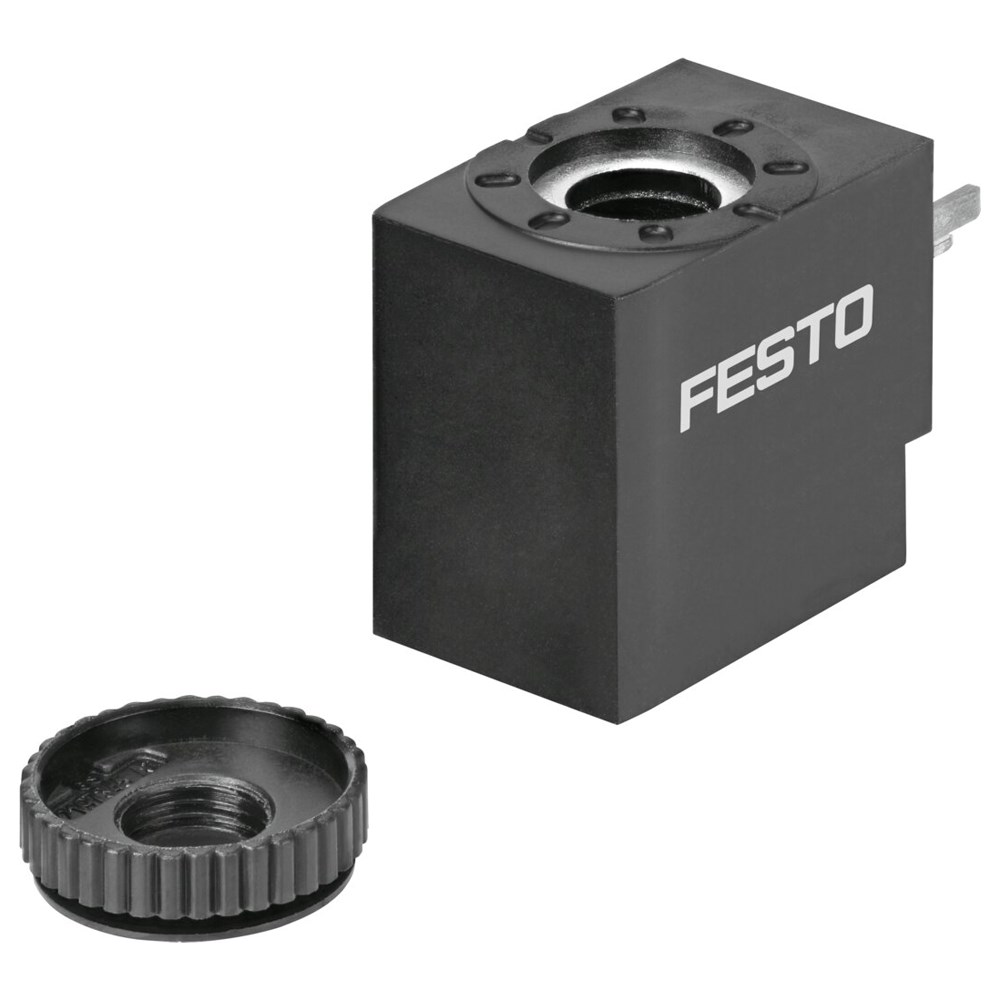

FESTO SOLENOID COIL 24V DC FOR F7 ARMATURE VALVE 2.6W – TYPE C (VACS-C-C1-1)
A reliable and durable solenoid coil designed for F7 armature valves, providing precise actuation in hydraulic and pneumatic systems. Operating at 24V DC with a power rating of 2.6 W, it supports continuous 100% duty cycles and maintains performance under moderate corrosion conditions. The coil features a Type C electrical connection compliant with EN 175301-803 and is mounted via a knurled nut for easy installation. Built with copper windings and a steel housing, it offers IP65 protection and meets international safety standards.
Features
- 24V DC, 2.6 W coil for F7 armature valves
- Supports 100% duty cycle for continuous operation
- Permissible voltage fluctuations of ±10%
- Type C electrical connection to EN 175301-803
- Moderate corrosion resistance (CRC2) for industrial environments
- IP65 protection for reliable performance in harsh conditions
- RoHS-compliant materials with durable steel and thermoplastic housing
Specifications
- Mounting: Via knurled nut, optional position
- Insulation Class: H
- Operational Voltage: 24V DC
- Duty Cycle: 100%
- Degree of Protection: IP65
- Ambient Temperature: -10°C to 60°C
- Media Temperature: -10°C to 50°C
- Material: Copper winding, Steel and Thermoplastic housing
- Approval: c UL us Recognized (UL MH18122)
- Weight: 35.2 g
- Compliance: VDMA24364-B1/B2-L LABS Conformity, RoHS
