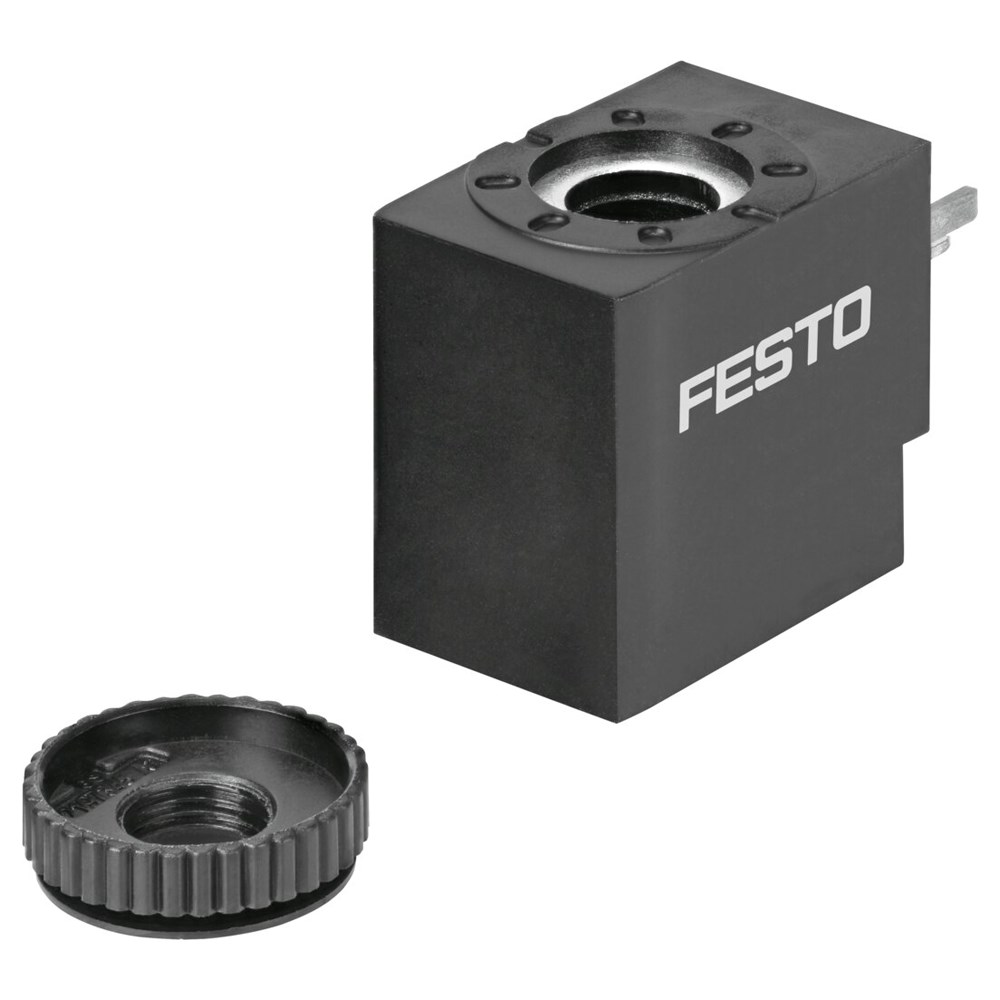

FESTO SOLENOID COIL 240V AC FOR F7 ARMATURE VALVE 2.3VA – TYPE C (VACS-C-C1-3W)
A high-performance solenoid coil designed for F7 armature valves, providing precise actuation for hydraulic and pneumatic systems. Operating at 230–240V AC, 50/60 Hz, it features a pick-up power of 3.0 VA and holding power of 2.3 VA, supporting continuous 100% duty cycles. The coil offers Type C electrical connection to EN 175301-803 and mounts via a knurled nut for easy installation. With a robust steel and thermoplastic housing, copper windings, IP65 protection, and moderate corrosion resistance, it is built to perform reliably in demanding industrial environments.
Features
- 240V AC coil with 2.3VA holding power for F7 armature valves
- Supports 100% continuous duty cycle
- Pick-up power of 3.0 VA for reliable actuation
- Type C electrical connection to EN 175301-803
- Moderate corrosion resistance (CRC2) for industrial use
- IP65 protection ensures performance in harsh conditions
- RoHS-compliant materials with durable steel and thermoplastic housing
Specifications
- Mounting: Via knurled nut, optional position
- Insulation Class: H
- Operational Voltage: 230–240V AC, 50/60 Hz
- Pick-up Power: 3.0 VA
- Holding Power: 2.3 VA
- Surge Immunity: 4 kV
- Pollution Degree: 3
- Degree of Protection: IP65
- Ambient Temperature: -10°C to 60°C
- Media Temperature: -10°C to 50°C
- Material: Copper winding, Steel and Thermoplastic housing
- Approval: c UL us Recognized (UL MH18122), CE, UKCA
- Weight: 34.6 g
- Compliance: VDMA24364-B1/B2-L LABS Conformity, RoHS
