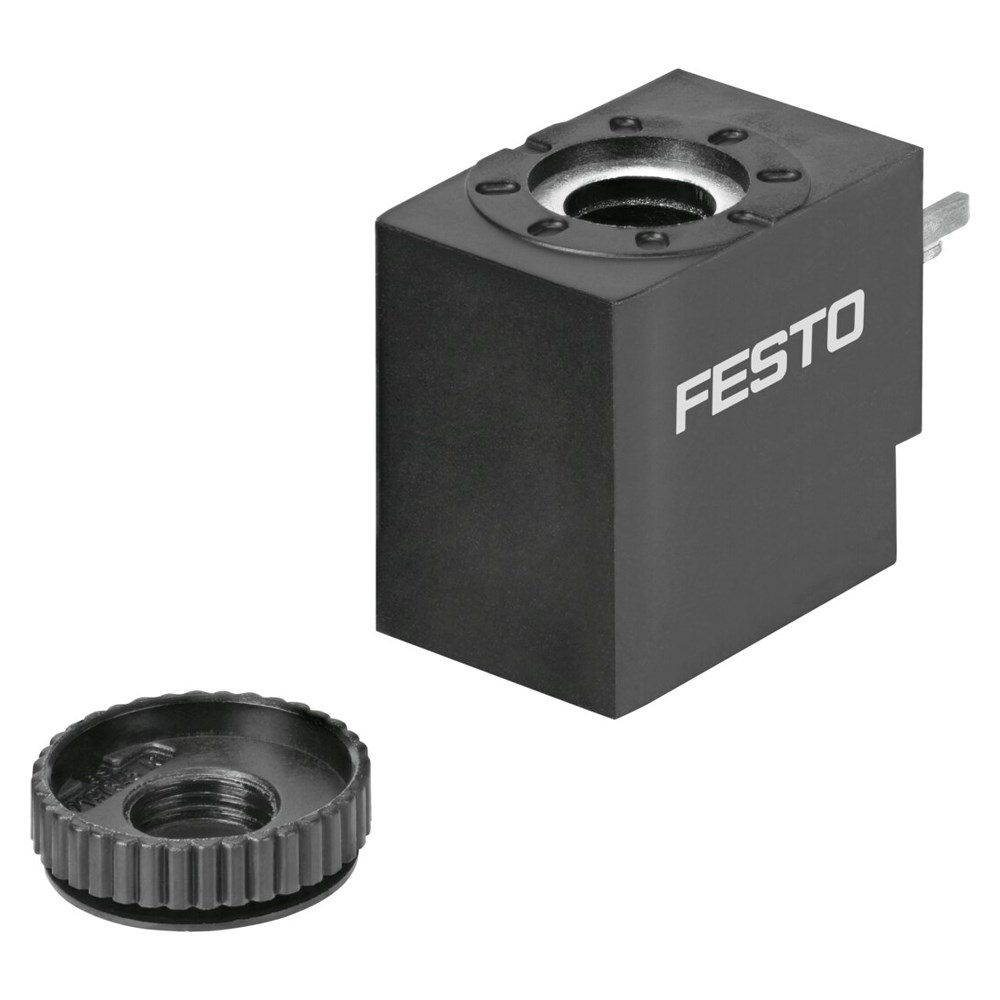

FESTO SOLENOID COIL 24V DC FOR F8 ARMATURE VALVE 3.4W – VACF-B-B2-1
A reliable solenoid coil designed for F8 armature valves, providing precise actuation for hydraulic and pneumatic systems. Operating at 24V DC with a power rating of 3.3 W, it supports continuous 100% duty cycles and maintains performance under moderate corrosion conditions. The coil features a Type B electrical connection (11 mm standard) and mounts via a knurled nut for easy installation. Built with copper windings inside a steel and thermoplastic housing, it offers IP65 protection and is suitable for both industrial and maritime environments.
Features
- 24V DC, 3.3 W coil for F8 armature valves
- Supports continuous 100% duty cycle
- Permissible voltage fluctuations of ±10%
- Type B electrical connection to industry standard (11 mm)
- Moderate corrosion resistance (CRC2) for industrial use
- IP65 protection ensures reliable operation in harsh conditions
- RoHS-compliant materials with durable steel and thermoplastic housing
Specifications
- Mounting: Via knurled nut, optional position
- Insulation Class: H
- Operational Voltage: 24V DC
- Duty Cycle: 100%
- Degree of Protection: IP65
- Ambient Temperature: -20°C to 60°C
- Media Temperature: -20°C to 50°C
- Material: Copper winding, Steel and Thermoplastic housing
- Approval: c UL us Recognized (UL MH18122), DNVGL Maritime Certification
- Weight: 56.5 g
- Compliance: VDMA24364-B1/B2-L LABS Conformity, RoHS
