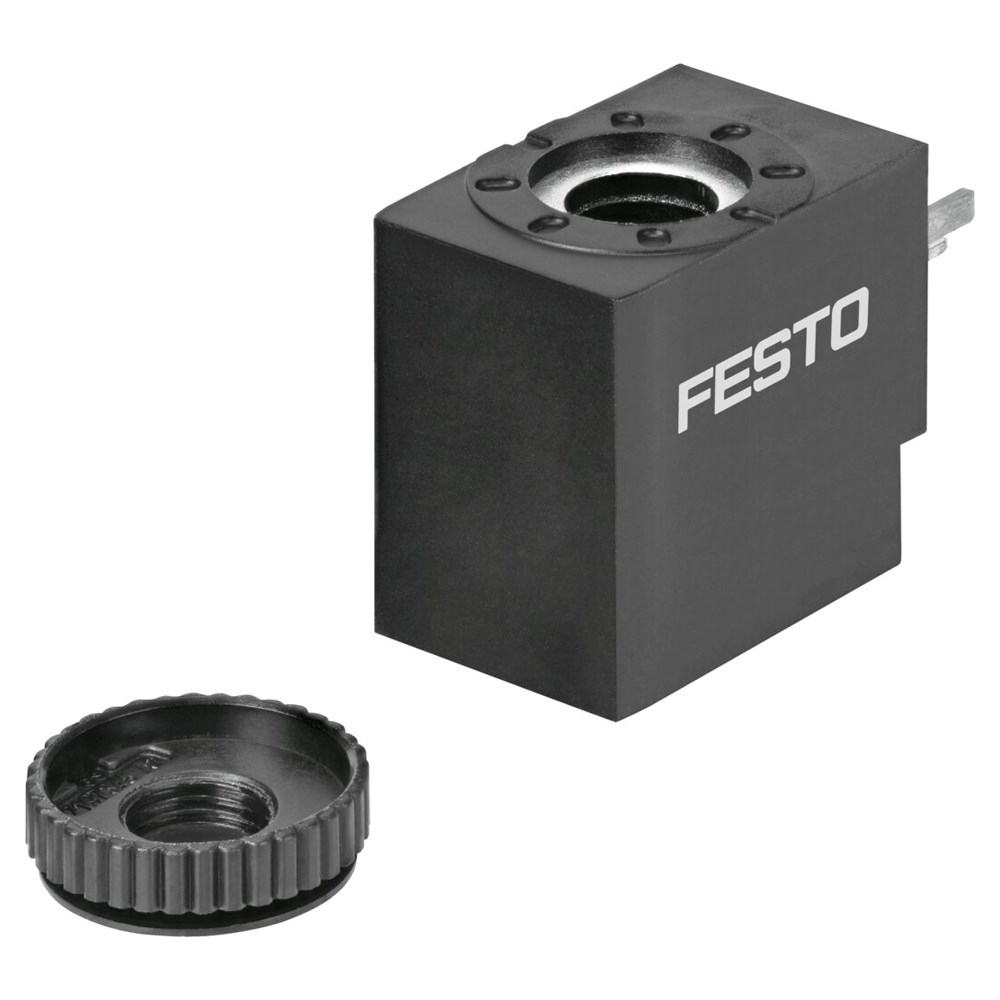

FESTO SOLENOID COIL 24V AC FOR F7 ARMATURE VALVE 1.8VA – TYPE C (VACS-C-C1-1A)
A reliable solenoid coil for F7 armature valves, engineered for precise actuation in hydraulic and pneumatic systems. Operating at 24V AC (50/60 Hz) with a pick-up power of 2.5 VA and holding power of 1.8 VA, it supports continuous 100% duty cycles. The coil features a Type C electrical connection to EN 175301-803 and mounts via a knurled nut for simple installation. Constructed from copper windings within a steel and thermoplastic housing, it provides IP65 protection and moderate corrosion resistance for demanding industrial applications.
Features
- 24V AC coil with 1.8VA holding power for F7 armature valves
- Supports continuous 100% duty cycle
- Permissible voltage fluctuations of ±10%
- Type C electrical connection to EN 175301-803
- Moderate corrosion resistance (CRC2) for industrial environments
- IP65 protection ensures reliable operation in harsh conditions
- RoHS-compliant materials with durable steel and thermoplastic housing
Specifications
- Mounting: Via knurled nut, optional position
- Insulation Class: H
- Operational Voltage: 24V AC, 50/60 Hz
- Pick-up Power: 2.5 VA
- Holding Power: 1.8 VA
- Degree of Protection: IP65
- Ambient Temperature: -10°C to 60°C
- Media Temperature: -10°C to 50°C
- Material: Copper winding, Steel and Thermoplastic housing
- Approval: c UL us Recognized (UL MH18122)
- Weight: 35.8 g
- Compliance: VDMA24364-B1/B2-L LABS Conformity, RoHS
