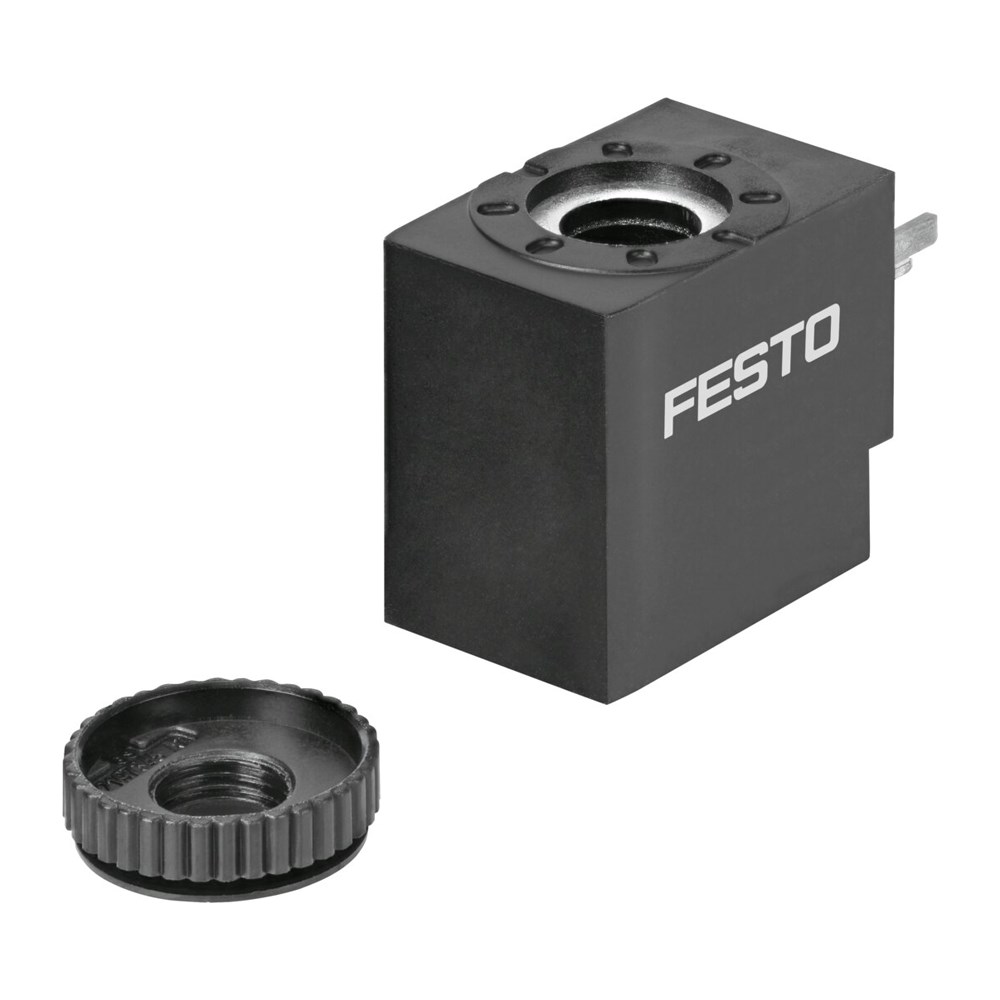

FESTO SOLENOID COIL 240V AC FOR F8 ARMATURE VALVE 4.6VA – VACF-B-B2-3W
A high-performance solenoid coil for F8 armature valves, engineered to deliver precise actuation in hydraulic and pneumatic systems. Operating at 230–240V AC, 50/60 Hz, it features a pick-up power of 5.8 VA and holding power of 4.6 VA, supporting continuous 100% duty cycles. The coil is equipped with a Type B electrical connection (11 mm standard) and mounts via a knurled nut for straightforward installation. With copper windings housed in durable steel and thermoplastic, it provides IP65 protection and moderate corrosion resistance, making it suitable for industrial and maritime applications.
Features
- 240V AC coil with 4.6VA holding power for F8 armature valves
- Supports continuous 100% duty cycle
- Pick-up power of 5.8 VA for reliable actuation
- Type B electrical connection to industry standard (11 mm)
- Moderate corrosion resistance (CRC2) for industrial use
- IP65 protection for dependable operation in harsh environments
- RoHS-compliant materials with steel and thermoplastic housing
Specifications
- Mounting: Via knurled nut, optional position
- Insulation Class: H
- Operational Voltage: 230–240V AC, 50/60 Hz
- Pick-up Power: 5.8 VA
- Holding Power: 4.6 VA
- Surge Immunity: 4 kV
- Pollution Degree: 3
- Degree of Protection: IP65
- Ambient Temperature: -20°C to 60°C
- Media Temperature: -20°C to 50°C
- Material: Copper winding, Steel and Thermoplastic housing
- Approval: c UL us Recognized (UL MH18122), DNVGL Maritime Certification, CE, UKCA
- Weight: 53 g
- Compliance: VDMA24364-B1/B2-L LABS Conformity, RoHS
