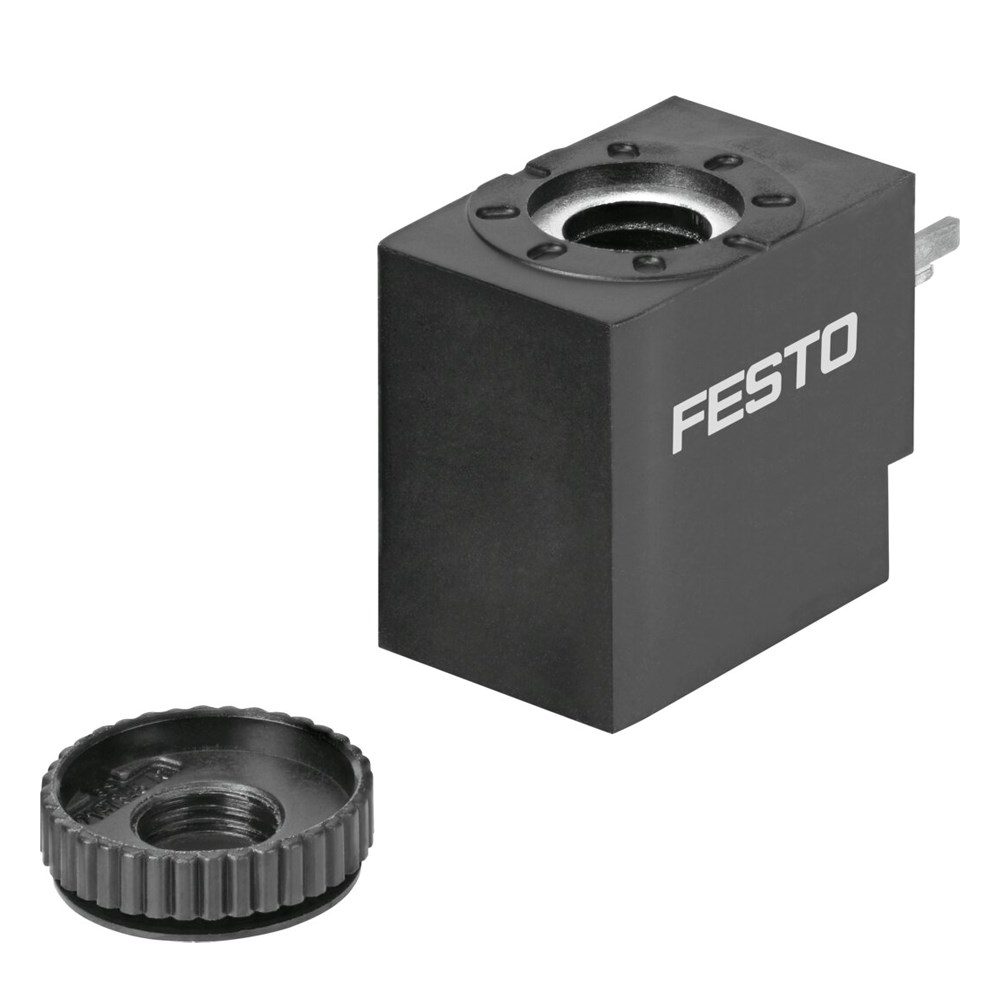

FESTO SOLENOID COIL 24V AC FOR F8 ARMATURE VALVE 2.6VA – VACF-B-B2-1A
A dependable solenoid coil designed for F8 armature valves, providing precise actuation in hydraulic and pneumatic systems. Operating at 24V AC (50/60 Hz) with a pick-up power of 3.9 VA and holding power of 2.6 VA, it supports continuous 100% duty cycles. The coil features a Type B electrical connection (11 mm standard) and mounts via a knurled nut for easy installation. Constructed with copper windings within a steel and thermoplastic housing, it offers IP65 protection and moderate corrosion resistance, suitable for industrial and maritime applications.
Features
- 24V AC coil with 2.6VA holding power for F8 armature valves
- Supports continuous 100% duty cycle
- Pick-up power of 3.9 VA for reliable actuation
- Type B electrical connection to industry standard (11 mm)
- Moderate corrosion resistance (CRC2) for industrial environments
- IP65 protection ensures dependable operation in harsh conditions
- RoHS-compliant materials with steel and thermoplastic housing
Specifications
- Mounting: Via knurled nut, optional position
- Insulation Class: H
- Operational Voltage: 24V AC, 50/60 Hz
- Pick-up Power: 3.9 VA
- Holding Power: 2.6 VA
- Degree of Protection: IP65
- Ambient Temperature: -20°C to 60°C
- Media Temperature: -20°C to 50°C
- Material: Copper winding, Steel and Thermoplastic housing
- Approval: c UL us Recognized (UL MH18122), DNVGL Maritime Certification
- Weight: 55.8 g
- Compliance: VDMA24364-B1/B2-L LABS Conformity, RoHS
