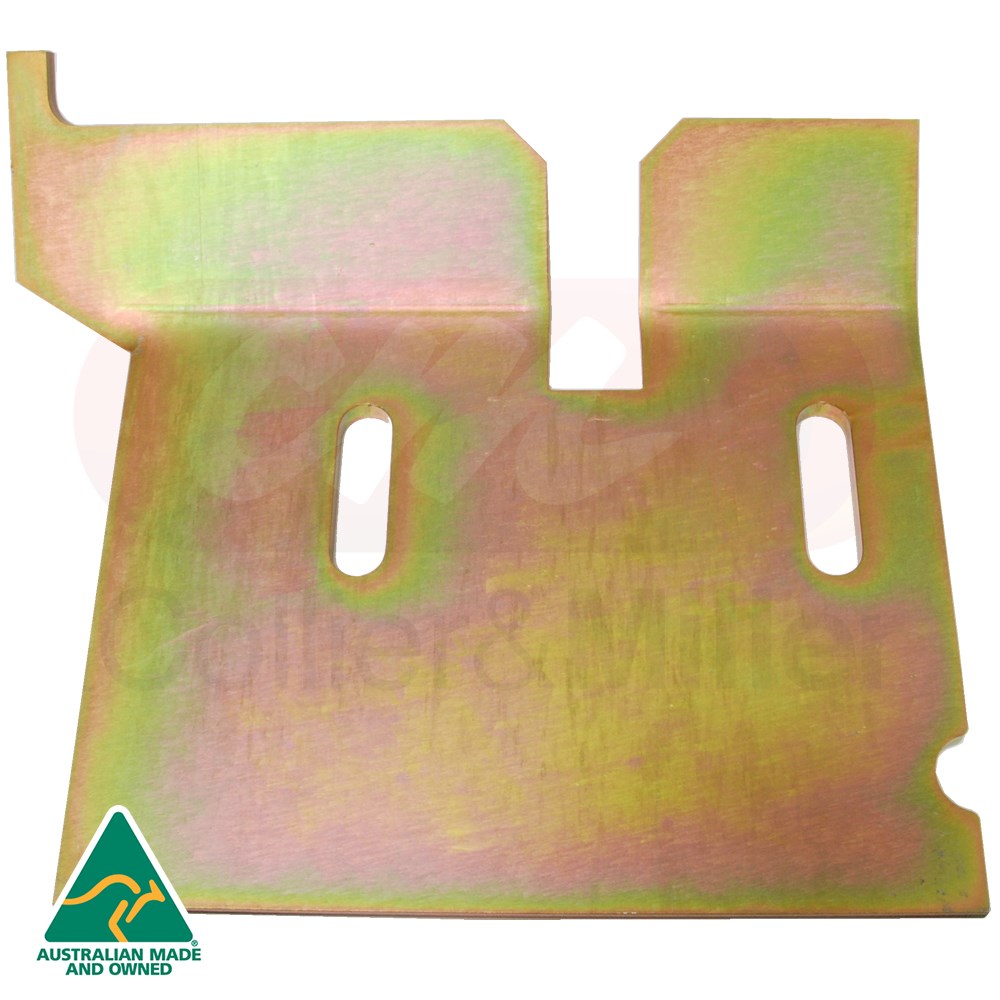

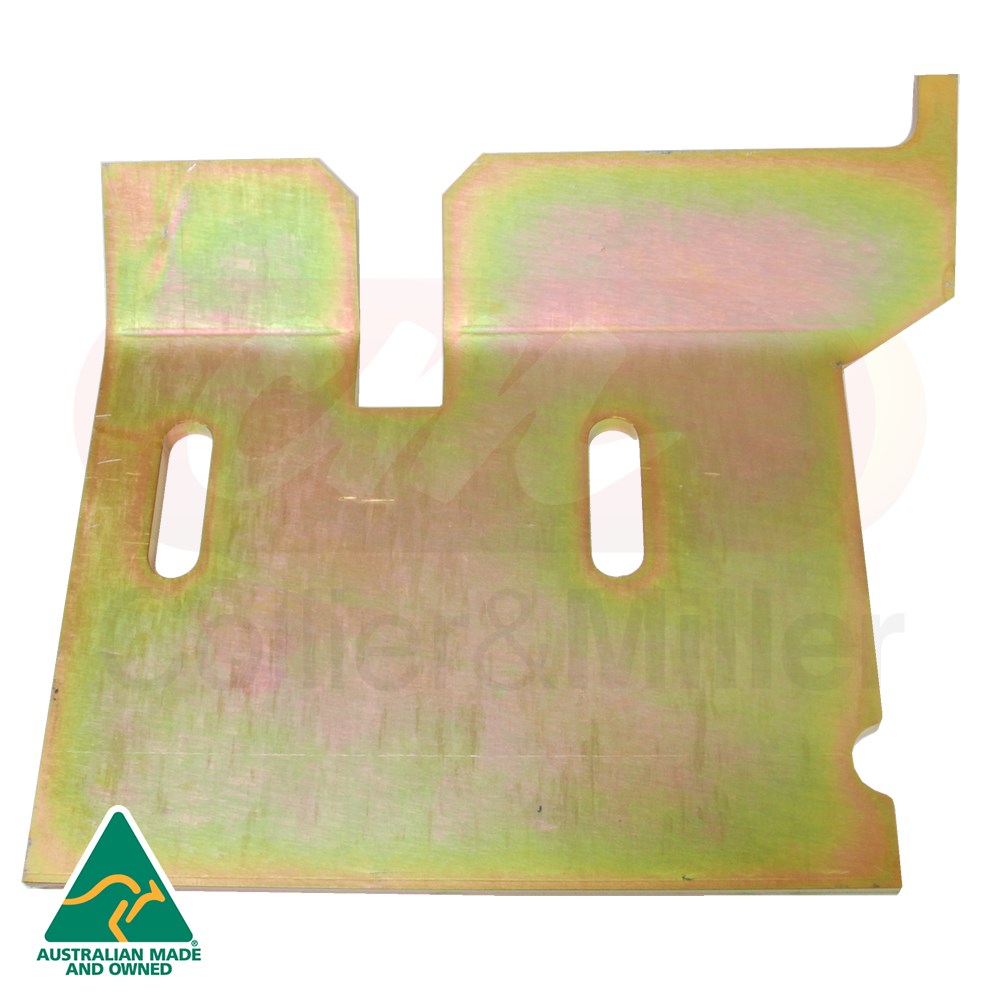

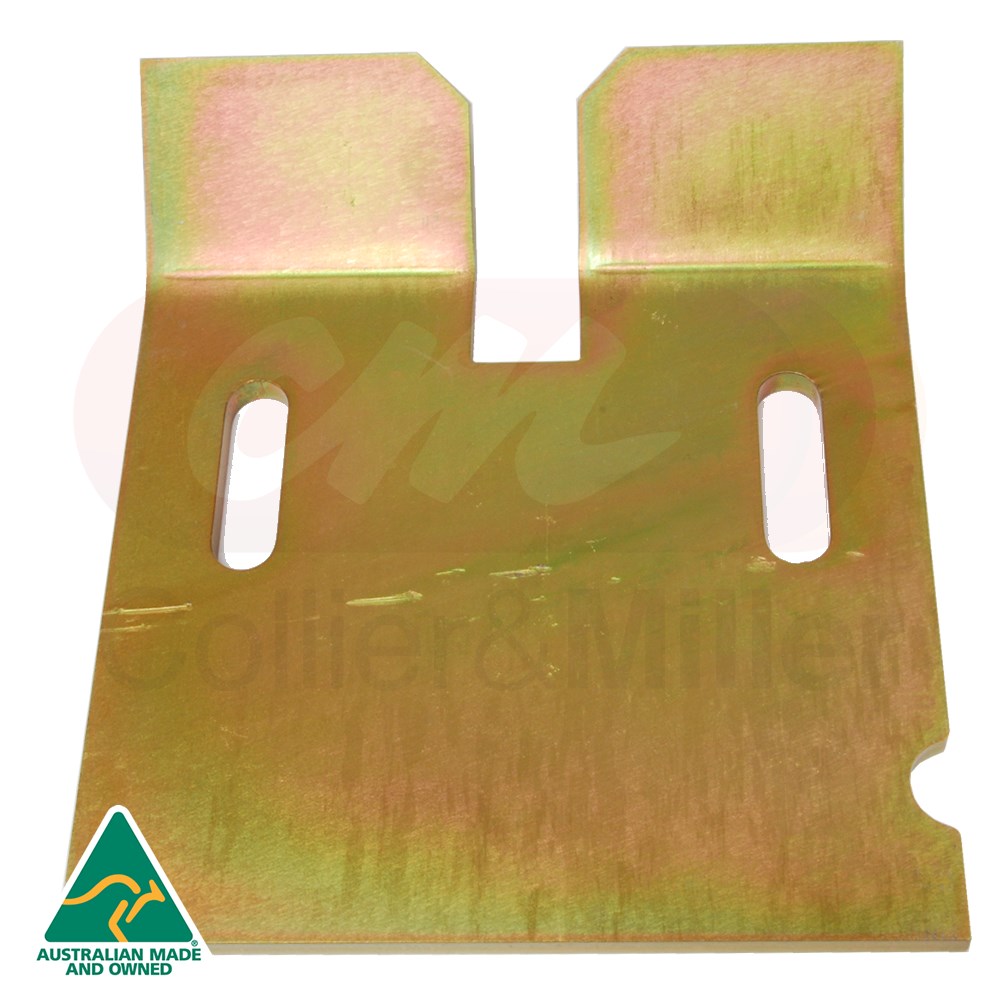

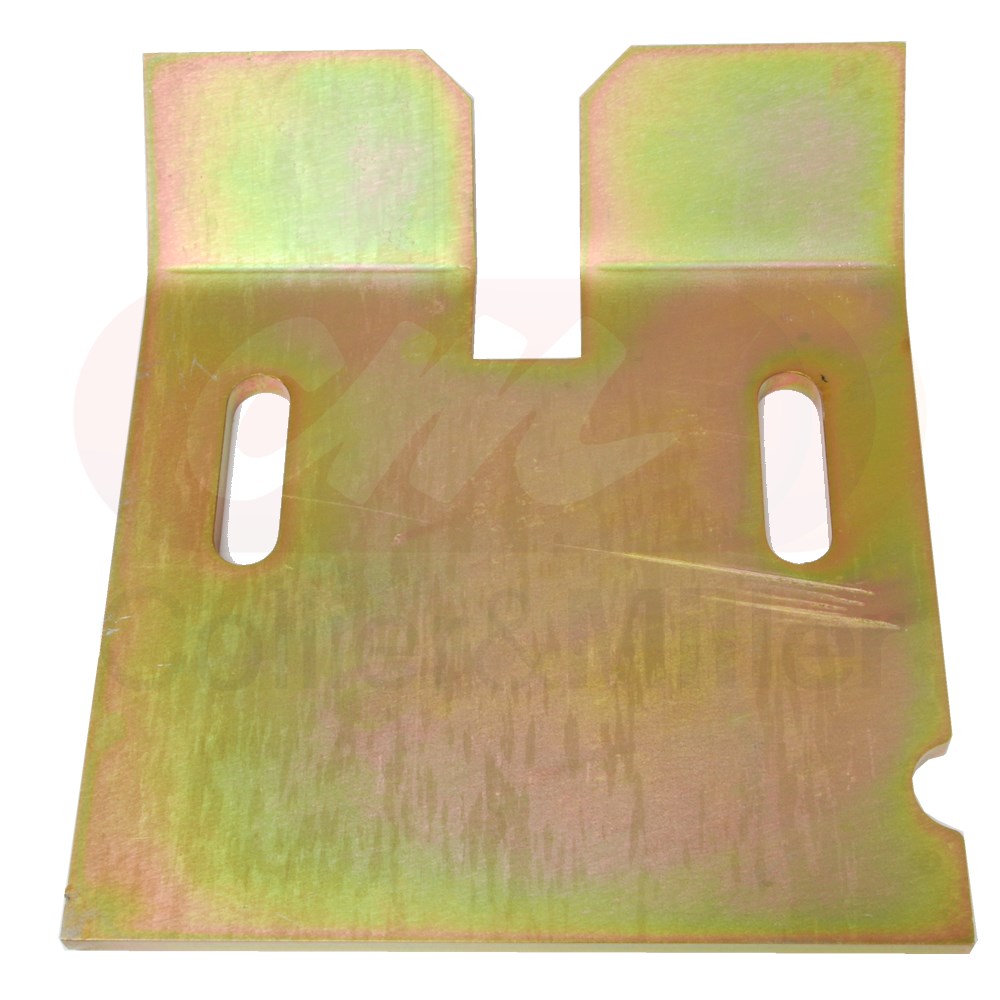

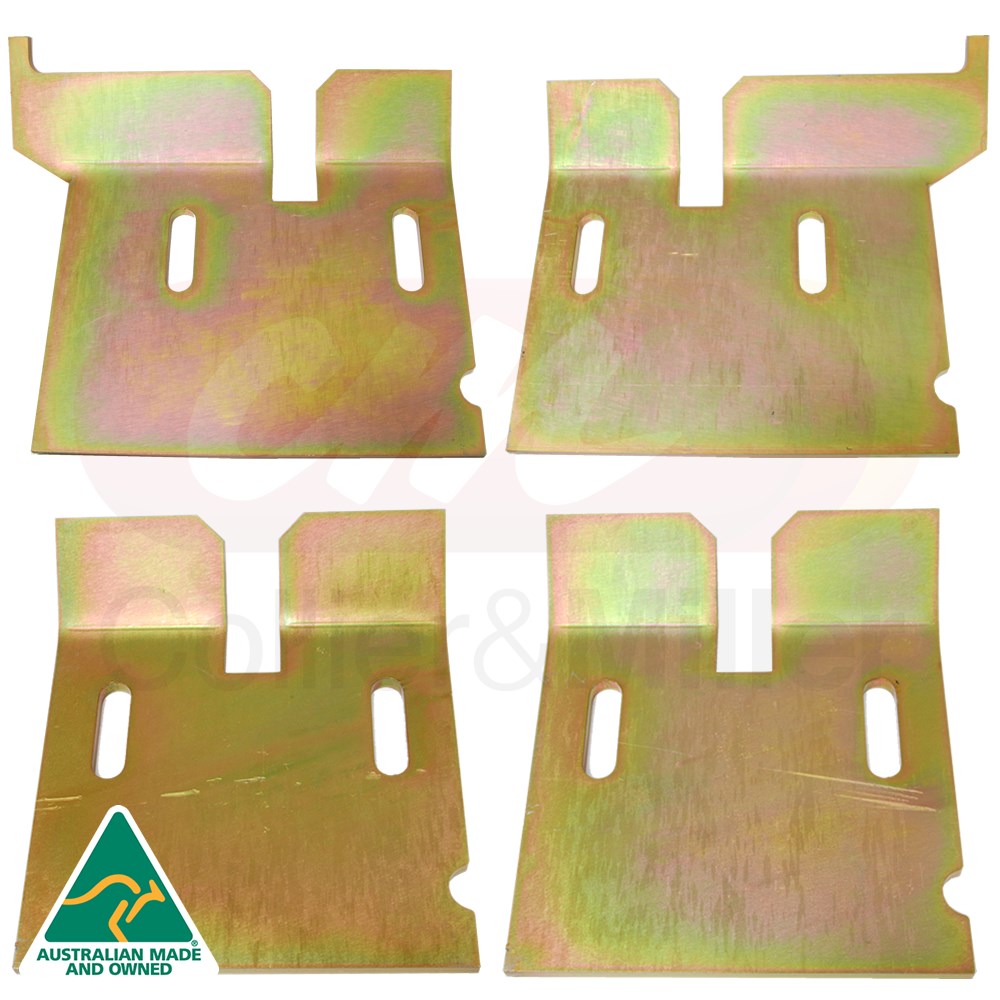

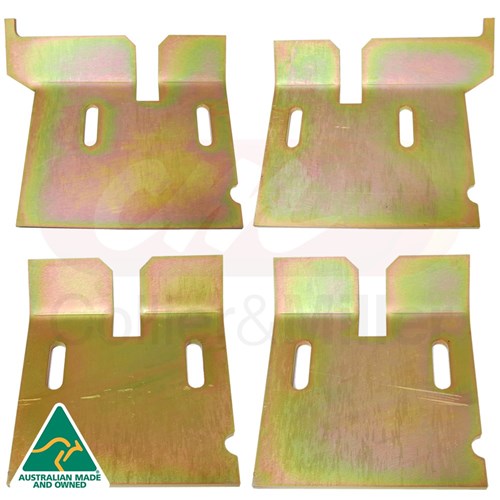

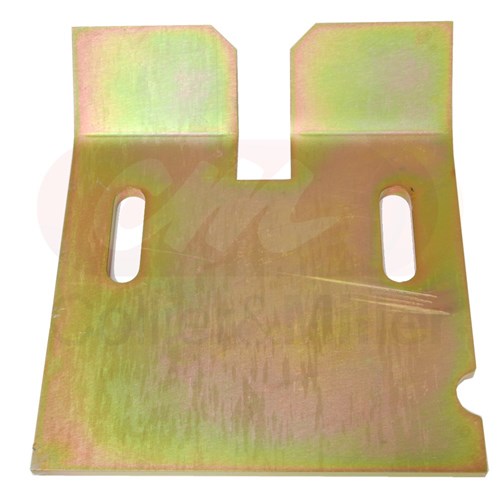

Case-IH® Compatible Feeder House Stripper Plate Set (4 Piece)
Maintain the operation of your product feeding system with this premium C&M Australian-made feeder house stripper plate set. Specifically engineered for Case-IH® 120 Series Flagship combine harvesters, these plates are the professional solution for repairing worn components situated directly under the top feeder sprocket.
Manufactured in our Griffith factory from G250 plate, this set of four plates provides essential where crop material can tangle around feeder sprockets and shaft. Each plate features a gold passivated finish, offering superior surface protection and a professional presentation. By preventing material from wrapping around the top drive sprockets, these stripper plates ensure consistent crop flow and protect the drive assembly, keeping your feeder house system in top condition for a significantly longer service life.
Case-IH® OEM Cross-Reference
| Location |
Replaces OEM Part Numbers |
| Right Hand Pivot |
84219816, 87691662 |
| Left Hand Pivot |
84219812, 87691660 |
| Center Pivot (2 Included) |
84219814, 87691658 |
Model Compatibility
Stripper Plate Compatibility: Case IH Flagship 120 Series
| Series |
Models |
Serial Range |
| Case 120 Series |
7120, 8120, 9120 |
Serial Number Y9G207601 and onwards |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: Precision-cut G250 plate for maximum structural integrity.
- Finish: Gold passivated for enhanced protection and abrasion resistance.
- Kit Contents: Complete set of 4 plates (1 x LH, 1 x RH, 2 x Center).
- Application: Direct replacement for the product feeding area under the top drive sprocket.
- Wear Rating: Extended wear configuration to withstand high-volume crop transition.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The feeder house stripper plates perform the critical task of "stripping" crop material from the feeder chain slats and sprockets. Over time, constant material contact causes abrasion thinning, allowing material to "slug" or wrap around the top shaft. We recommend inspecting the clearance between the stripper plates and the sprocket teeth during every preventative maintenance check to identify worn components before they lead to drive failure.
Upgrading to this high-performance C&M set is a strategic choice to save money on major feeder house repairs. The gold passivated surface maintains its profile far longer than standard painted steel, ensuring your product feeding assembly remains in top condition and providing a longer service life for your feeder chain assembly.
Installation Tip: Precision Alignment
When installing your new G230 high-strength stripper plates, ensure the mounting bolts are tightened to the correct torque to prevent "chatter." This is the ideal time to check your top feeder house sprockets for tooth wear. Correct alignment across all four plates is vital to ensure uniform clearance and efficient material transition into the threshing rotor.
