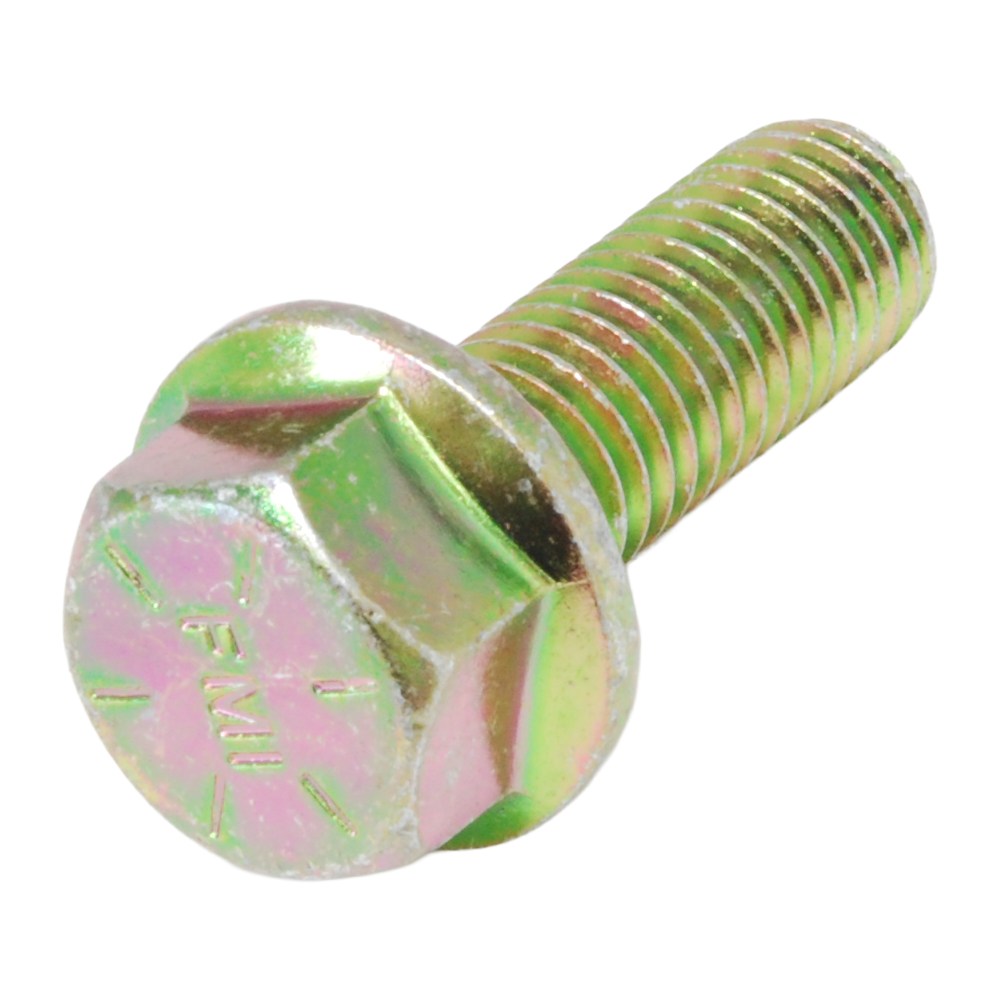

Case-IH® Compatible Rasp Bar Flange Bolt - 1/2-13 UNC x 1-1/2"
Secure rotor rasp bars correctly with this quality aftermarket Grade 8 flange head bolt for compatible Case-IH® Axial-Flow combine harvesters. Manufactured in the common 1/2-13 UNC x 1-1/2" imperial size, this high-tensile fastener is suitable for many earlier Case-IH® rotor applications through to the 2388 series.
The serrated flange head provides a broad clamping surface and helps resist loosening under the vibration and loading generated through the threshing rotor. The 1-1/2" bolt length is slightly longer than the original 1-1/4" bolt used in some applications; however, sufficient clearance is available for correct installation.
Case-IH® OEM Cross-Reference
Replaces OEM Part Number: 87302717
Machine Compatibility

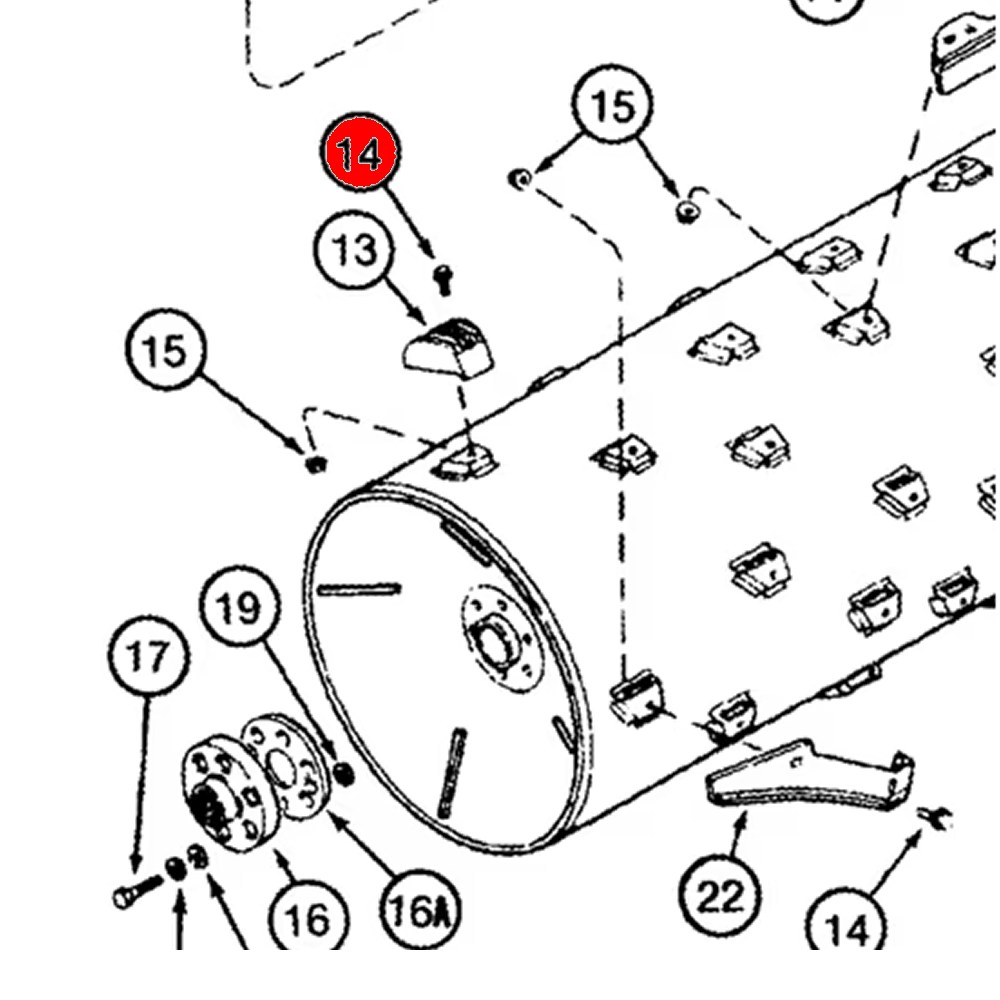

Case-IH compatible rasp bar flange bolt machine fitment
| Series |
Models |
Serial/Year |
| Case-IH® 1400 Series |
1460, 1480 |
- |
| Case-IH® 1600 Series |
1620, 1640, 1640E, 1644, 1660, 1666, 1670, 1680, 1688 |
- |
| Case-IH® 2100 Series |
2144, 2166, 2188 |
- |
| Case-IH® 2300 Series |
2344, 2366, 2377, 2388 |
- |
Technical Specifications & Features
- Thread: 1/2-13 UNC
- Length: 1-1/2"
- Grade 8 high-tensile construction
- Flange head design
- Serrated underside helps resist loosening
- Suitable for securing rotor rasp bars
- Longer than the original 1-1/4" bolt used in some applications, with adequate installation clearance
- 3/4" AF Head Size
Expert Maintenance Review
Rasp bar bolts operate in a high-vibration, high-load environment and should be inspected whenever rasp bars are serviced or replaced. Replace bolts showing damaged threads, rounded heads, stretched shanks or worn serrations. Correctly securing each rasp bar helps maintain rotor balance and prevents movement during operation.
Installation Tip
Inspect the rasp bar mounting holes and mating surfaces before installation. Tighten fasteners to the machine manufacturer's recommended procedure and recheck all rotor hardware before returning the combine to service.
The C&M Difference
Collier & Miller supplies quality aftermarket combine harvester parts selected for correct fitment, dependable performance and practical value. Our agricultural parts team supports Australian growers with replacement threshing and rotor components for a wide range of Case-IH® Axial-Flow combines.
Australia-wide shipping available.
Case-IH® is a registered trademark of its respective owner. OEM names and part numbers are quoted for identification and cross-reference purposes only. This product is an aftermarket replacement and is not manufactured or endorsed by the original equipment manufacturer. Verify machine compatibility before ordering.
