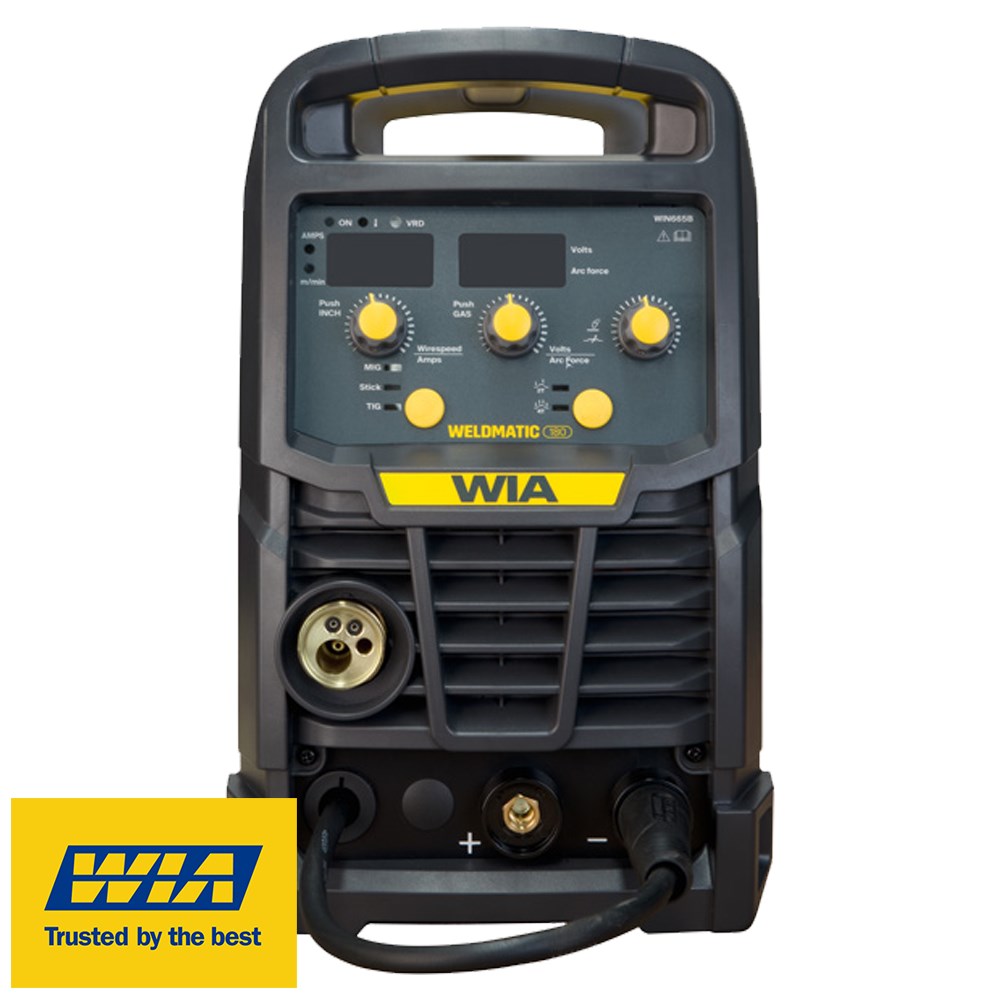

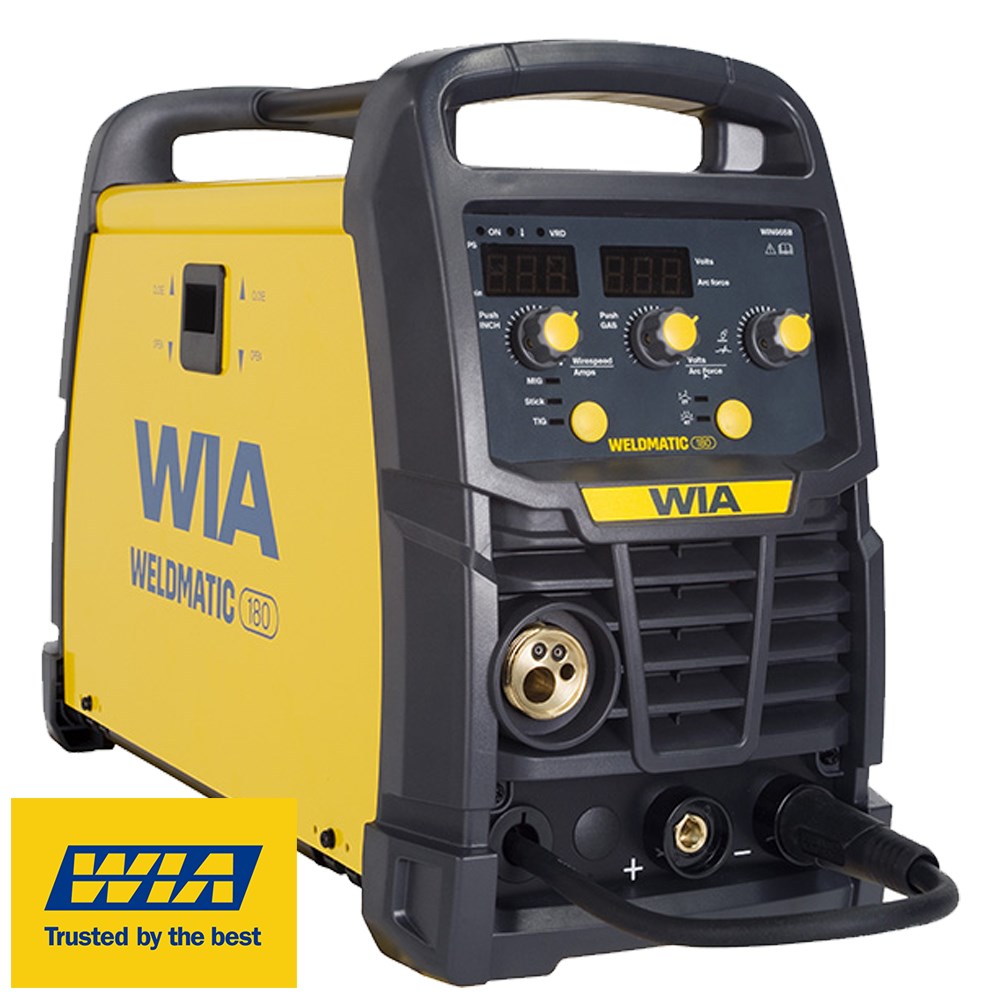

WIA Weldmatic 180 Single Phase MIG/ Stick/ Tig Welder

The Weldmatic 180 is a perfect solution for trade welding or welding hobbyists after one welder that can MIG, Stick and TIG weld with ease. For workshop jobs to outdoor repairs, the Weldmatic 180 is lightweight making it easy to pick up and transport.

Equipped with the latest technology, the 180 offers digital meters making adjusting parameters  easier, plus it’s IP23S rated, providing extra protection in harsh environments. Built with quality components and manufactured with 3 years warranty, compared to others in its class you’ll get more than just a quality welder at a great price.

Features

• 180 A single phase MIG, Stick & TIG welder
• 180 A at 23 V 10% Duty Cycle

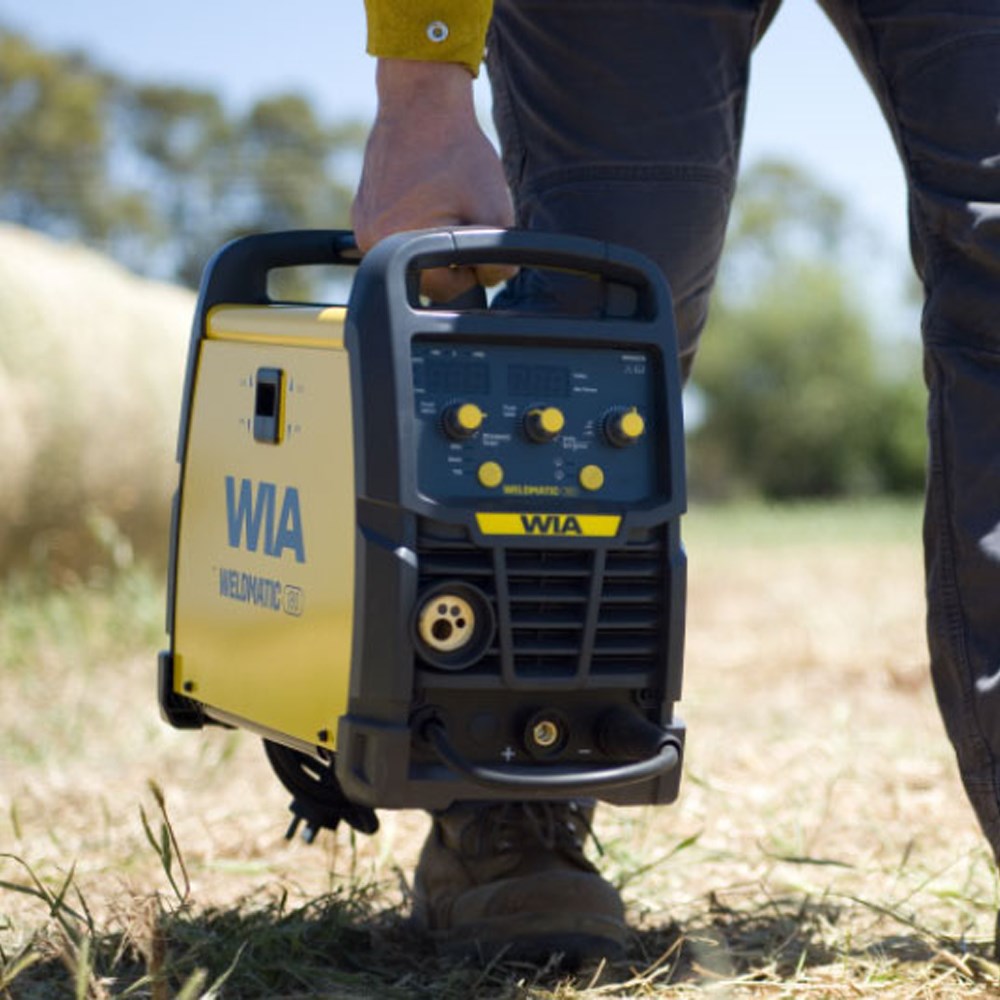

• Portable – Only 11kg
• Integrated wire feeder – Makes it compact and lightweight

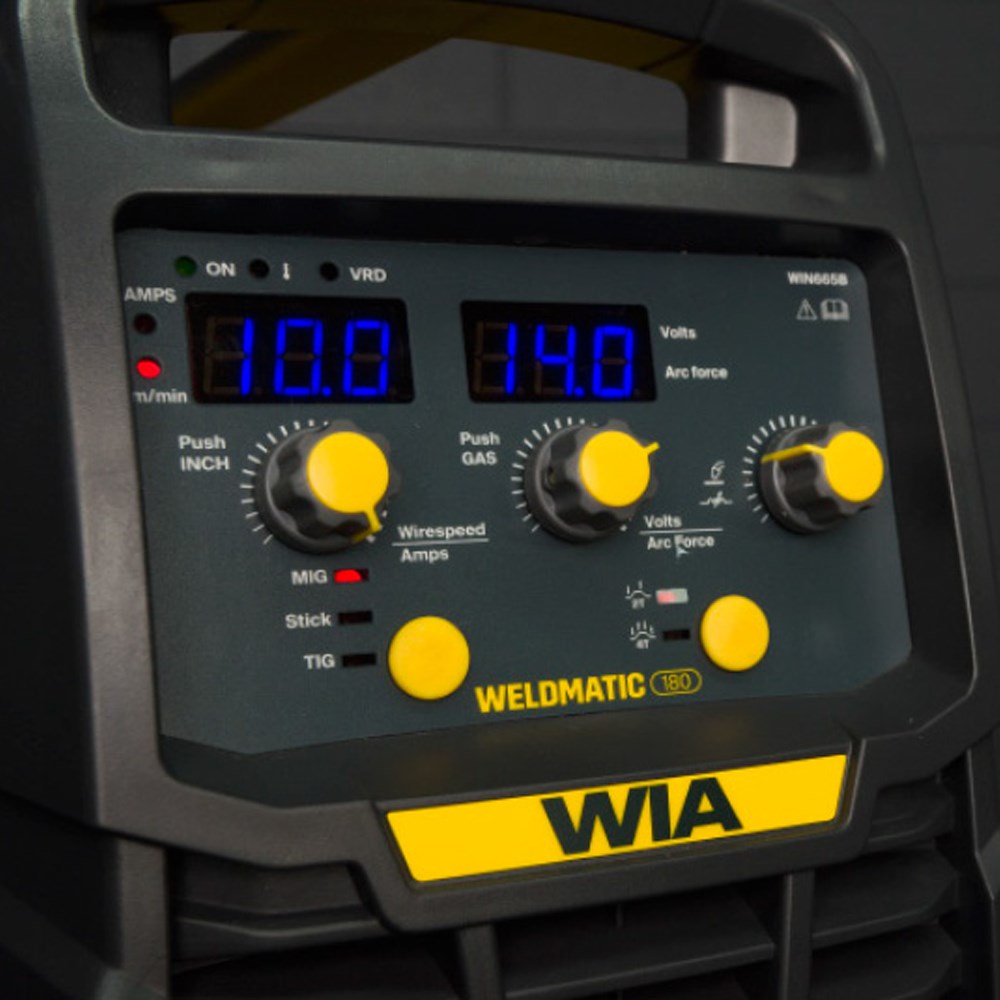

• Digital Meters – Easy to read and easy to adjust parameters
• Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
• Arc Force – Provides a more stable arc and prevents electrode sticking
• Hot Start – For better, easier arc starting
• Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
• Suitable wires - Gas-shielded and gasless flux-cored wires

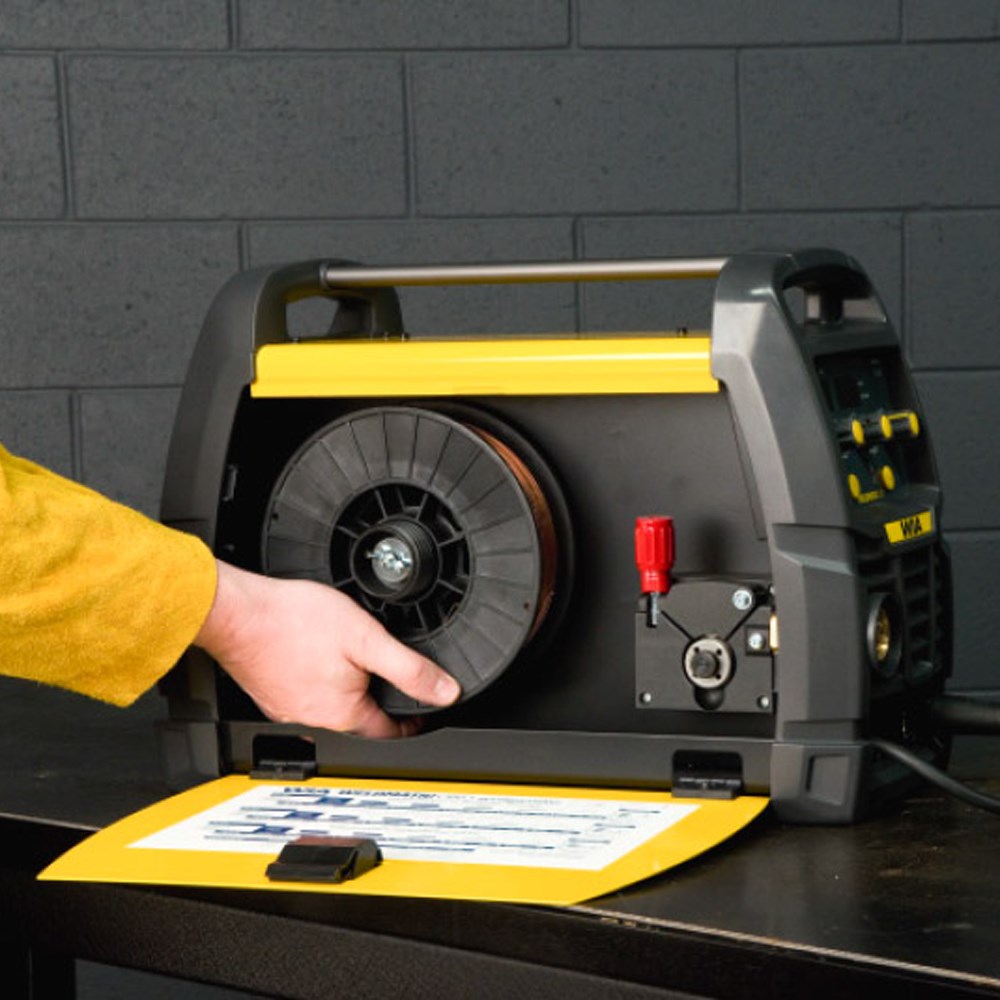

• Spool capacity - Takes 1kg and 5kg spools
• VRD (Voltage Reduction Device)
• IP23S rated – Provides extra protection in harsh environments
• Generator Compatible – 10 kVa

Includes

• WIA Weldmatic 180 Welder
• 3m Euro Gun Cable
• 3m Work Lead
• Gas Regulator
• Drive Rollers 0.6/0.8mm V Groove; 0.9/1.2mm Knurled (Gasless)
• 3 x Tips (0.6/0.8/0.9mm)
• 3m Industrial Twist Lock Electrode Holder
• Austfil T-11 Gasless Sample Wire (0.9mm)
• ES6 Steel Sample Wire (0.8mm)

Specifications

• Primary Voltage: 240 VAC-50/60Hz
• Rated Primary Current: 10 Amps
• Max Primary Current: 31 Amps
• Recommended Generator Power: 10 kVa
• Supply Plug: 10 Amp
• Standards Compliance: AS60974.1 & AS1674.2 (VRD)
• IP Rating: IP23S
• Weight: 11kg
• Warranty: 3 Years
