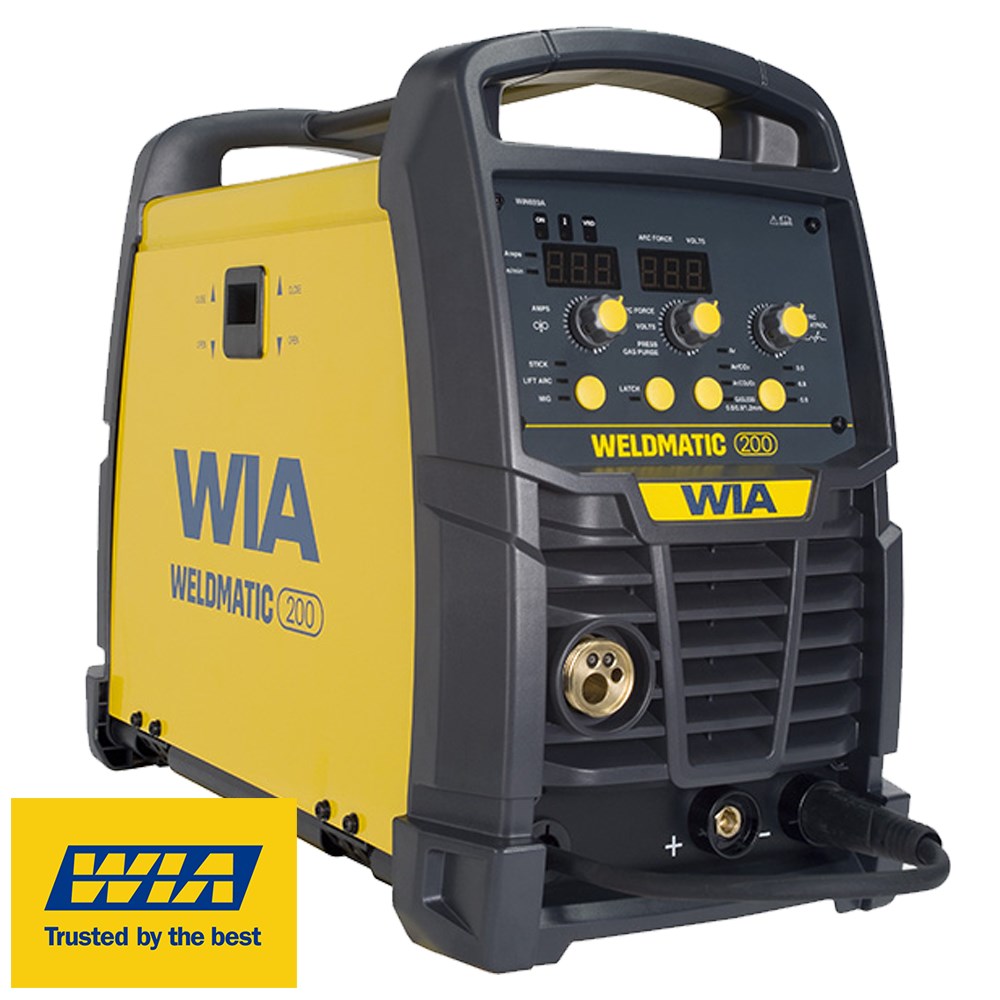

WIA Weldmatic 200 Single Phase MIG/ Stick/ Tig Welder
Want a transportable machine capable of MIG, TIG and Stick welding? From the workshop to on-site, the Weldmatic 200 can go where you go. It takes both 1kg & 5kg spools making it perfect for smaller welding jobs, and comes equipped with digital meters for easier parameter adjustment.
Built with quality components and manufactured with 3 years warranty, the Weldmatic 200 delivers on reliability and performance making it the perfect portable choice for intermediate and professional welders.
Features
- 200 A single phase MIG, Stick & TIG welder
- 200 A at 24 V 15% Duty Cycle
- Portable – Only 15kg
- Integrated wire feeder – Makes it compact and lightweight

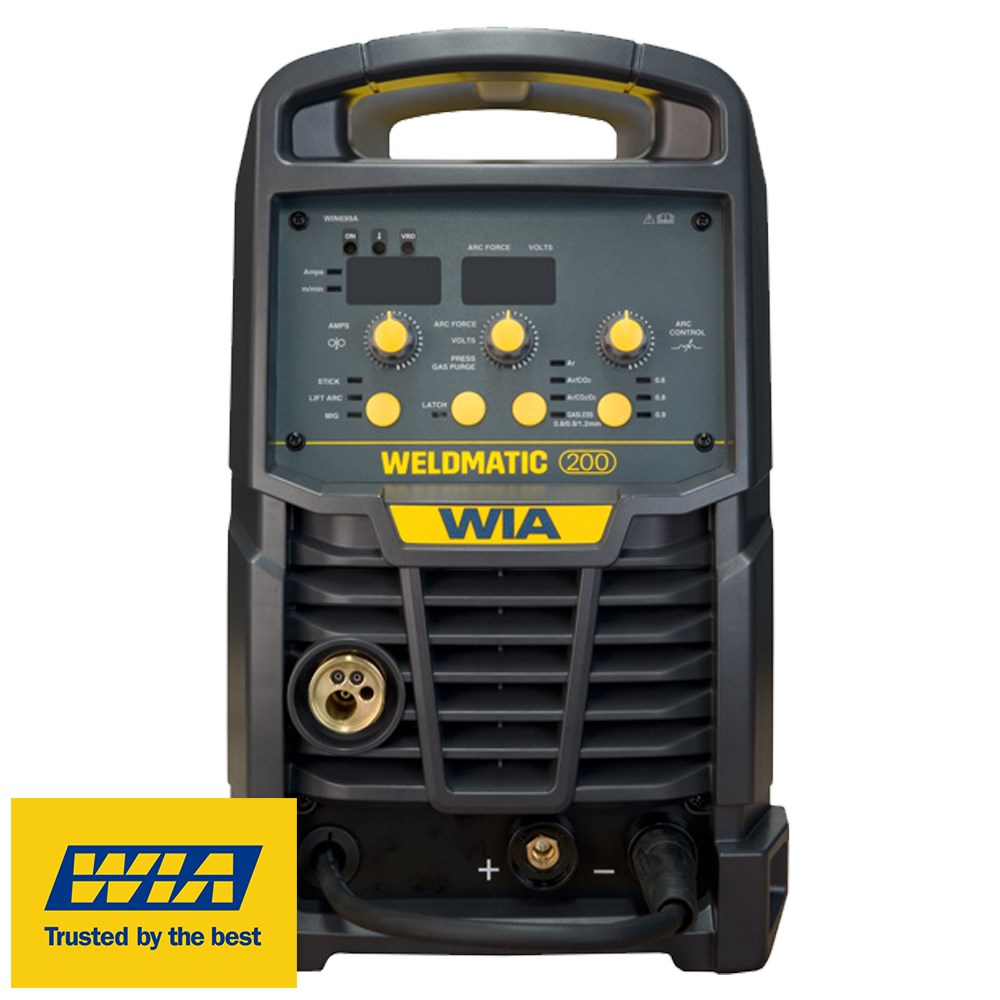

- Digital Meters - Easy to read and easy to adjust parameters
- Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
- Arc Force – Provides a more stable arc and prevents electrode sticking
- Hot Start – For better, easier arc starting
- Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
- Suitable wires - Gas-shielded and gasless flux-cored wires

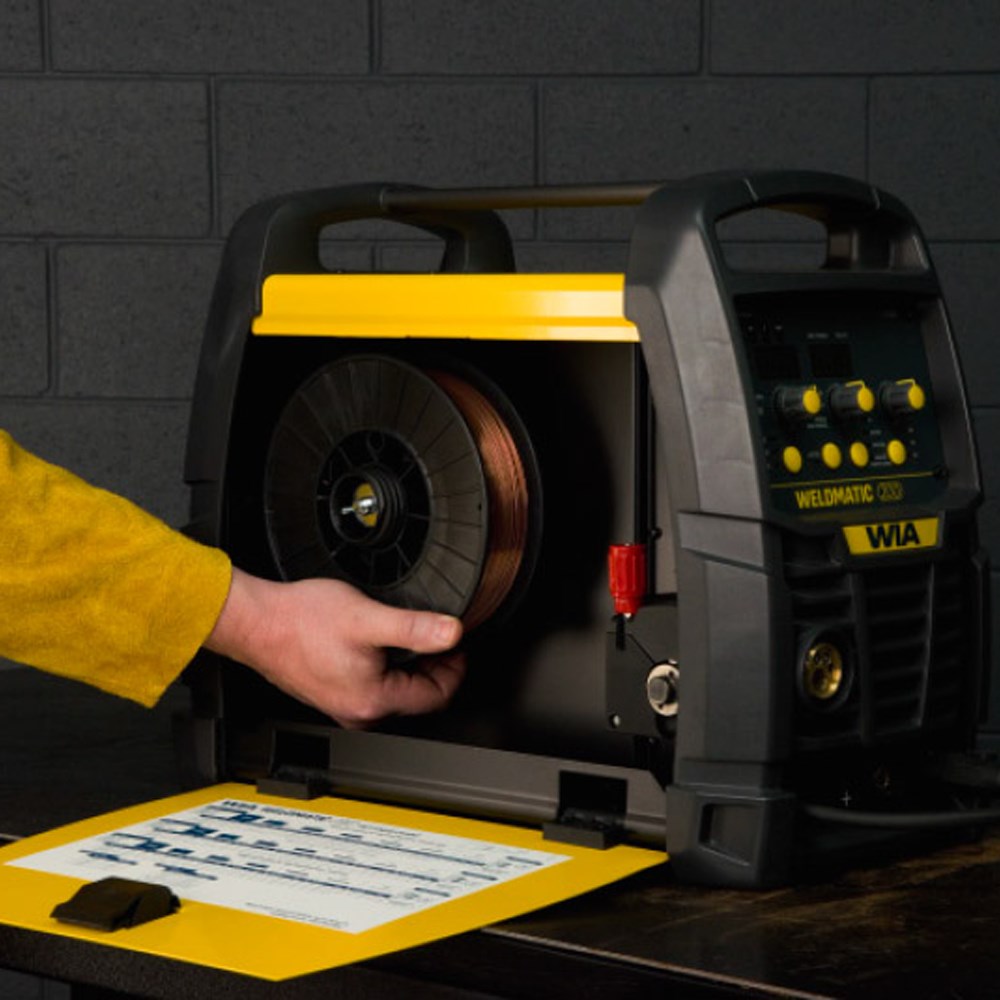

- Spool capacity - Takes 1kg and 5kg spools
- VRD (Voltage Reduction Device)
- IP21S rated
- Generator compatible – 12 kVa
Includes
- WIA Weldmatic 200 Welder
- 3m Euro Gun Cable
- 3m Work Lead
- Gas Regulator
- ES6 Steel Sample Wire (0.8mm)
- Drive Rollers 0.6/0.8mm V Groove; 0.9/1.2mm Knurled (Gasless)
- 4 x Tips (0.6/0.8/0.9/1.2mm)
- 3m Industrial Twist Lock Electrode Holder
- Austfil T-11 Gasless Sample Wire (0.9mm)
Specifications
- Primary Voltage: 240 VAC-50/60Hz
- Rated Primary Current: 14 Amps
- Max Primary Current: 36 Amps
- Recommended Generator Power: 12 kVa
- Supply Plug: 15 Amp
- Standards Compliance: AS60974.1 & AS1674.2 (VRD)
- IP Rating: IP21S
- Weight: 15Kg
- Warranty: 3 Years
