WIA WELDMATIC 500 MIG STICK TIG WELDER THREE PHASE 32AMP WITH 4 ROLL WIRE FEEDER

TIG WELDER THREE PHASE 32AMP WITH 4 ROLL WIRE FEEDER

Product Code: CP1451

Product Detail
Downloads

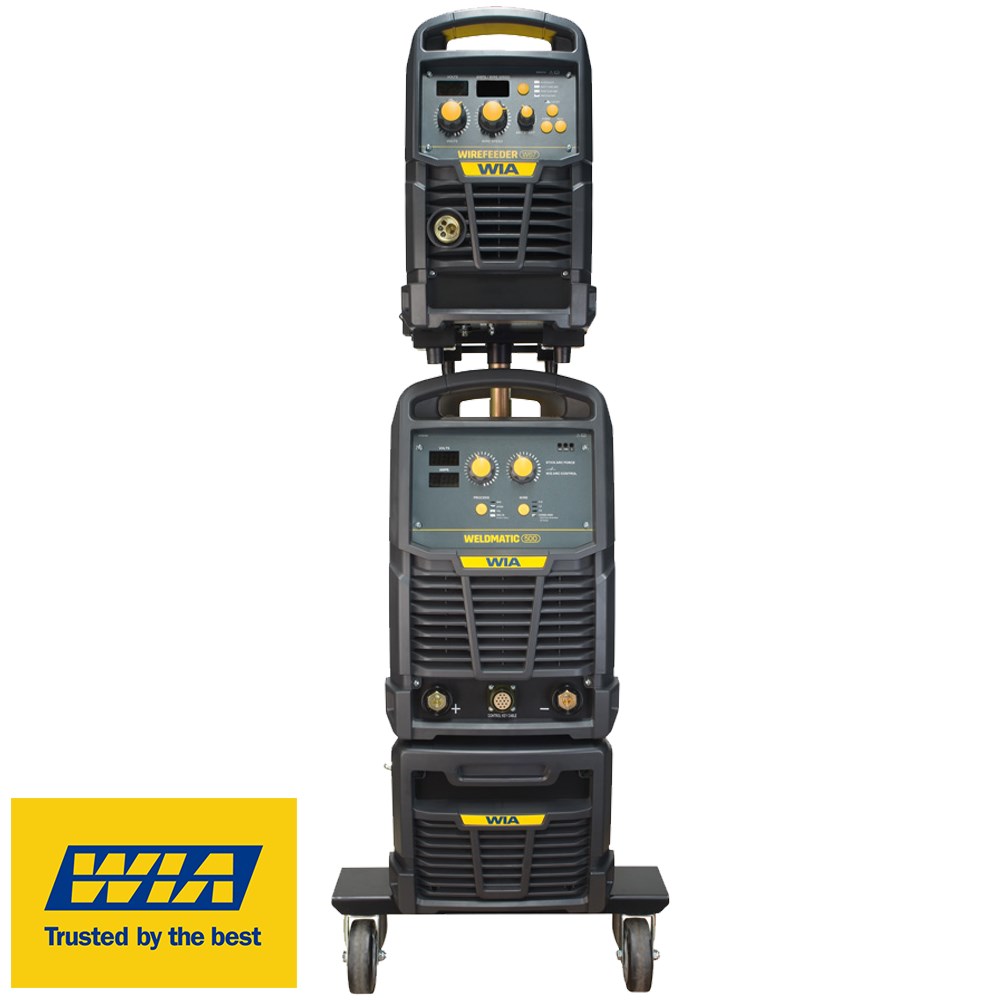

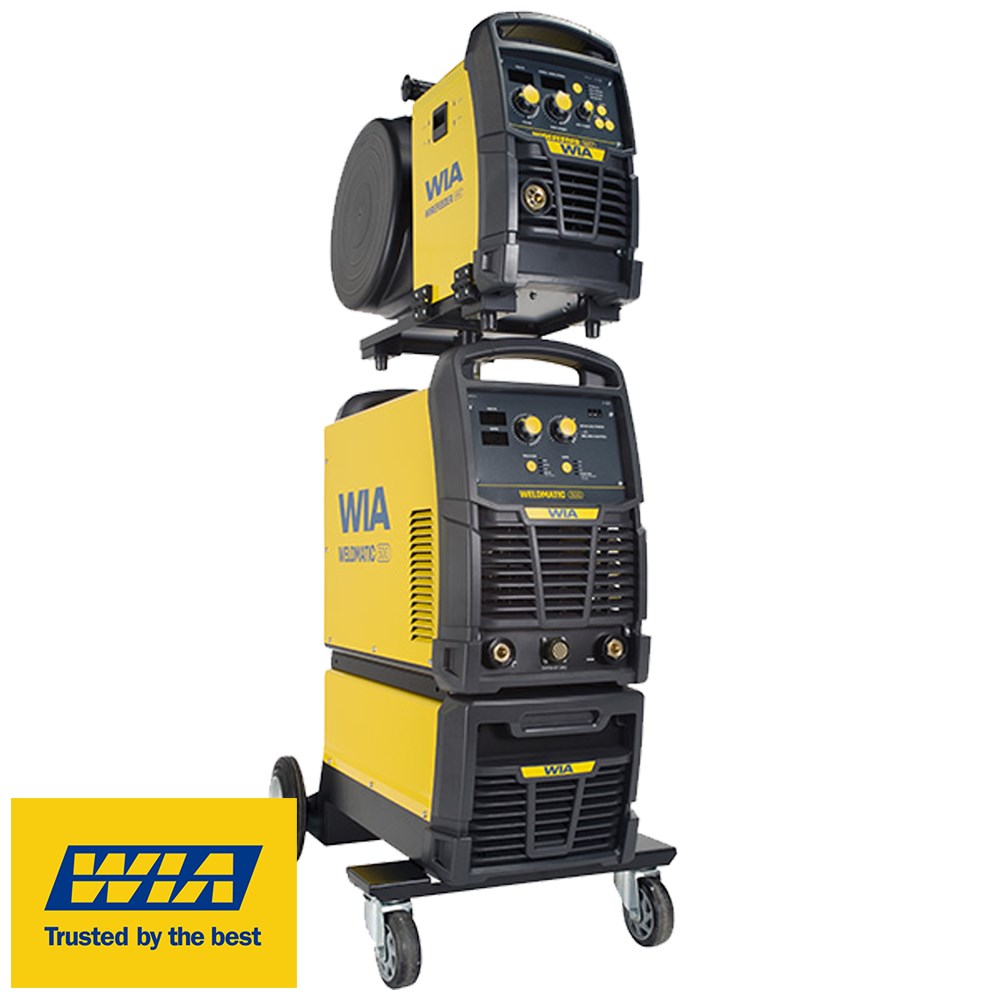

WIA Weldmatic 500 Three Phase MIG/ Stick/ Tig Welder

The Weldmatic 500 is a powerful and robust multi-process machine built to perform for professional fabrication applications. Capable of MIG, TIG and Stick welding, it offers optimal weld characteristics that provide high quality results.

Featuring Digital Volt and Amp meters, the 500 allows for easy and precise set up by retaining last weld information. Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 500 offers reliability and performance that’s second to none.

Features

500 A three phase MIG, Stick & TIG welder
500 A at 40 V 60% Duty Cycle
Digital Meters - Easy to read and easy to adjust parameters
Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone

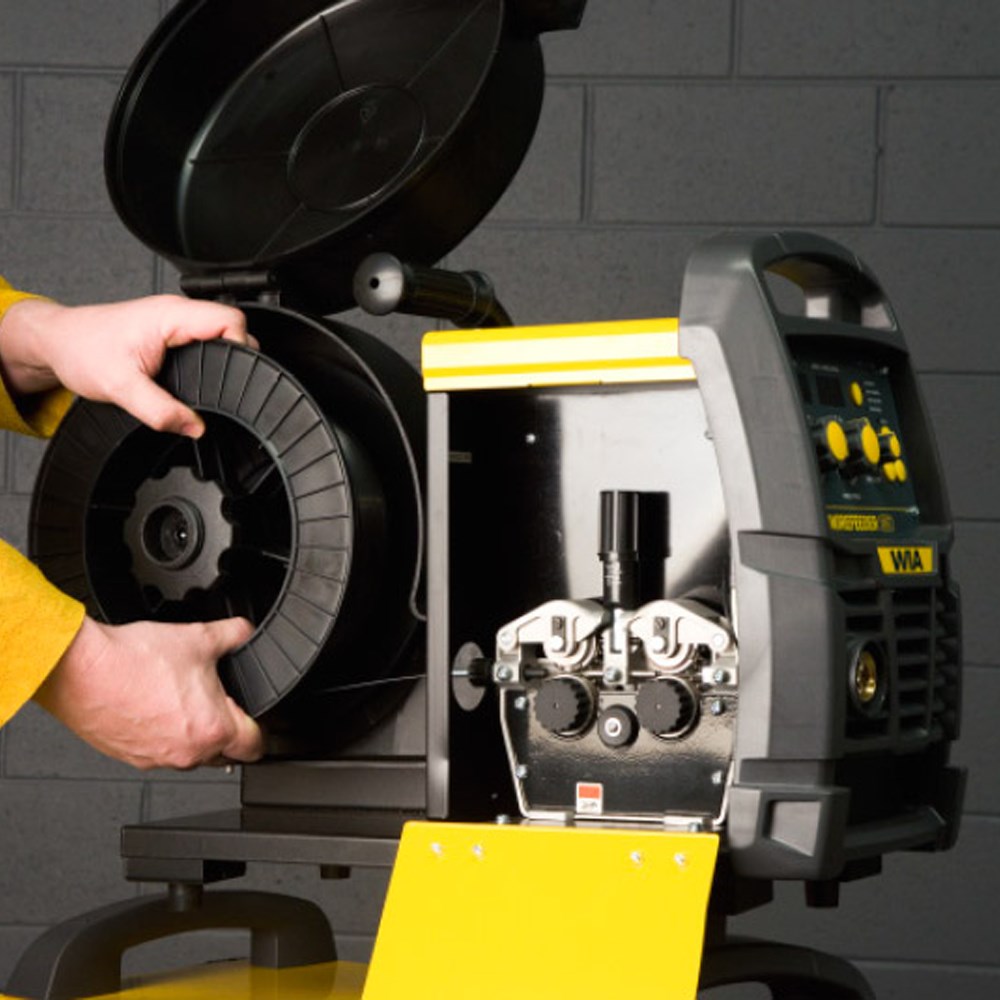

Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
Spot Timer - Provides short weld times for repetitive spot welds
Creep Mode - Provides slow wire speed until weld starts - ideal for aluminum starts
Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
Suitable wires - Gas-shielded and gasless flux-cored wires
Spool capacity - Takes 5kg and 15kg spools
VRD (Voltage Reduction Device)
IP21S rated
Generator compatible – 35 kVa
