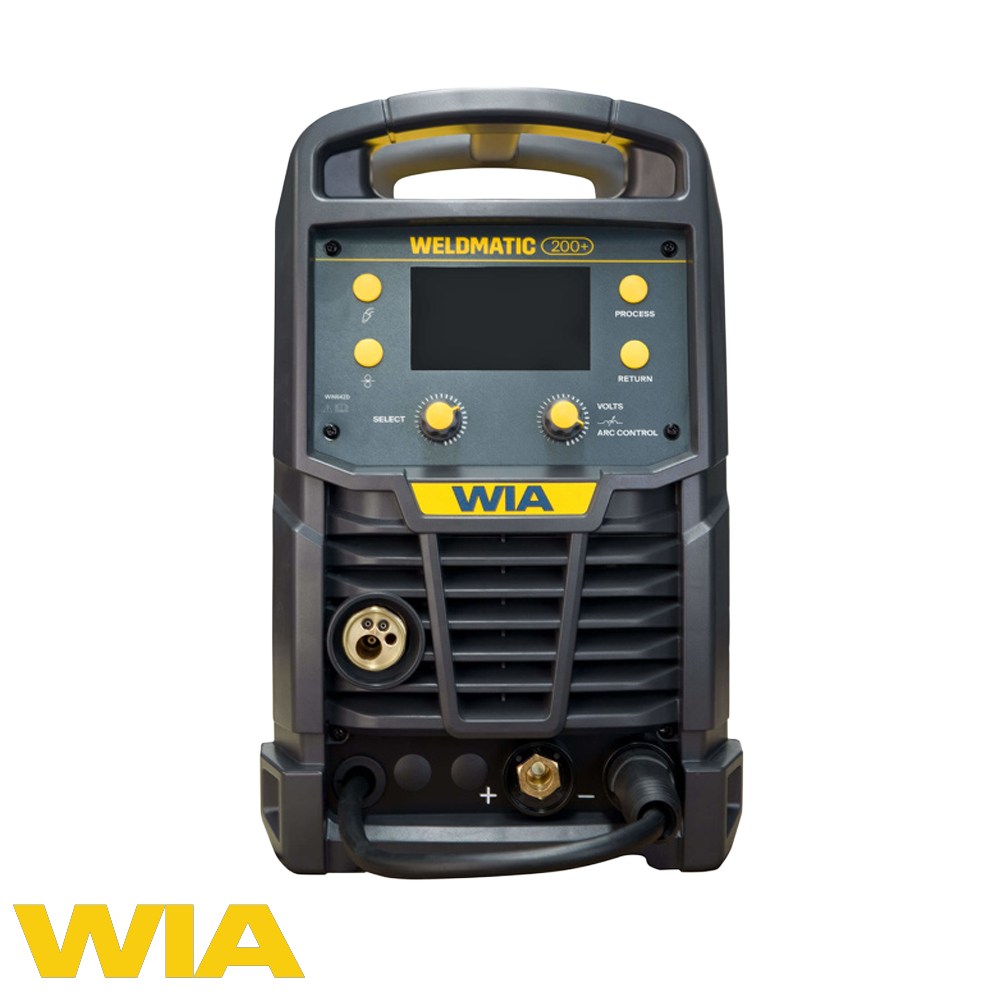

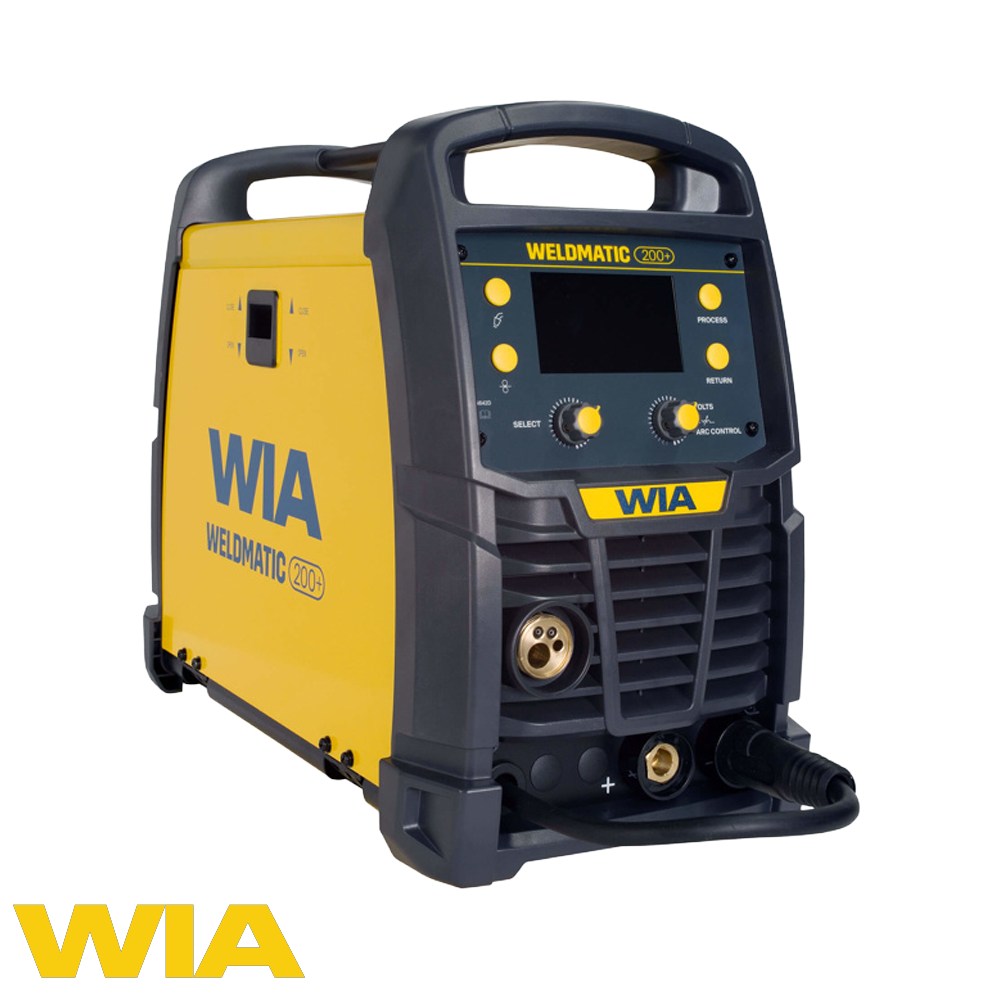

WIA Weldmatic 200+ Multi-Process Welder
Compact, versatile and workshop-ready, the WIA Weldmatic 200+ makes MIG, Stick and TIG welding simple. Featuring an intuitive digital LCD interface with pre-set parameters and memory selection, it allows fast setup and consistent results across a range of materials. Lightweight yet powerful, this 17kg unit is built for portability without compromising performance — ideal for both workshop use and on-site jobs. Manufactured with quality components and backed by a 3-year warranty, the Weldmatic 200+ delivers professional reliability in a compact, easy-to-use package.
Features
- Multi-process capability – MIG, Stick and TIG welding
- Digital LCD interface with pre-set parameters and memory selection
- Portable design weighing just 17kg
- Integrated wire feeder suits 1kg and 5kg spools
- Compatible with gas shielded and gasless wires
- Burnback control for clean wire finish
- Welds steel, stainless steel and aluminium
- Welds up to 8mm steel plate in a single pass

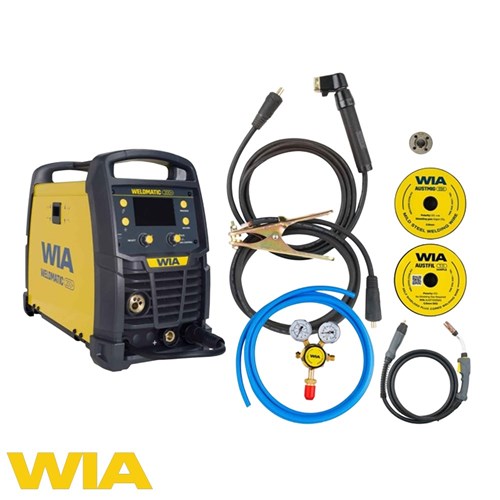

Includes
- 3m Euro gun cable
- 3m work lead
- 3m industrial twist lock electrode holder
- Gas regulator
- ES6 0.8mm steel sample wire
- Austfil T-11 0.9mm gasless sample wire
- 0.6/0.8mm V groove drive rollers
- 0.9/1.2mm knurled drive rollers (gasless)
- 0.6/0.8/0.9/1.2mm contact tips
Specifications
- Primary voltage 240 VAC 50/60Hz
- Rated primary current 13.4 Amps
- Max primary current 34.5 Amps
- Recommended generator power 8.3 kVa
- Supply plug 15 Amp
- Weldable materials steel, stainless steel, aluminium
- Stick current range 10A/20.4V – 180A/27.2V
- Rated output @ 40°C (10min) 180A/27.2V @ 15%
- 90A/23.6V @ 60%
- 70A/22.8V @ 100%
- MIG output range 40A/16V – 200A/24V
- Rated output @ 40°C (10min) 200A/24V @ 15%
- 100A/19V @ 60%
- 77A/17.9V @ 100%
- Wire size range 0.6/0.8/0.9/1.2mm
- Material thickness range up to 8mm steel plate, single passTIG current range 10A/10.4V – 180A/17.2V
- Rated output @ 40°C (10min) 180A/17.2V @ 15%
- 90A/13.6V @ 60%
- 70A/12.8V @ 100%
