CASE-IH® Compatible 7120 Feeder House Chain & Sprocket Kit (Non Rock-Trap)
Keep your
product feeding system in top condition with this premium Australian-made feeder house overhaul kit. Specifically engineered for Case IH® 7120 flagship combines without a rock trap, this comprehensive kit ensures efficient crop transition and an
extended service life for your feeder house assembly.

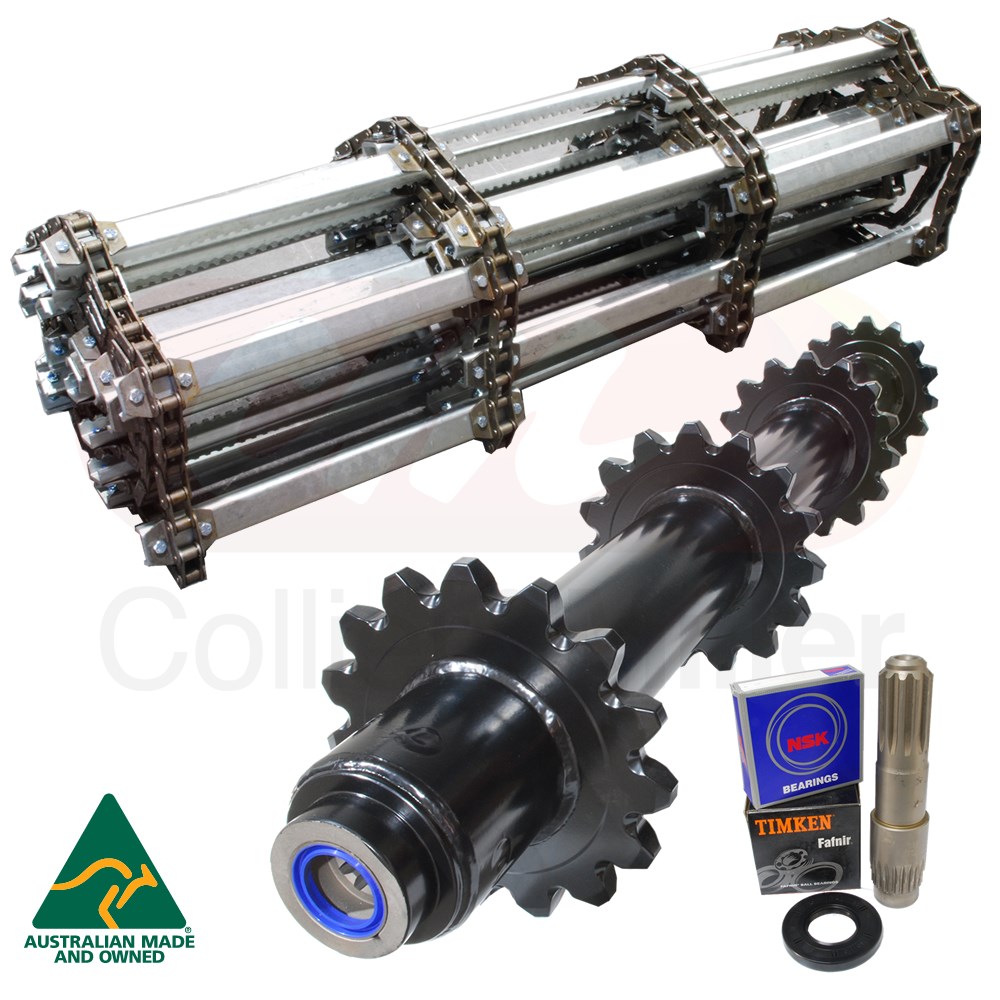

This high-performance kit includes a complete 4-strand feeder chain assembly with premium chrome pin chain and 6mm roll-serrated U-bars, alongside a heavy-duty tube-style sprocket assembly. By replacing all critical feeder house parts , you implement the gold standard in
preventative maintenance, ensuring all components maintain peak
feeder house efficiency.
Important Fitment Note: This kit is specifically designed for 7120 models without a rock trap. The included sprocket assembly does not feature a radial pin clutch and is not recommended for use in rocky conditions.
CASE-IH® OEM Cross-Reference Kit Details

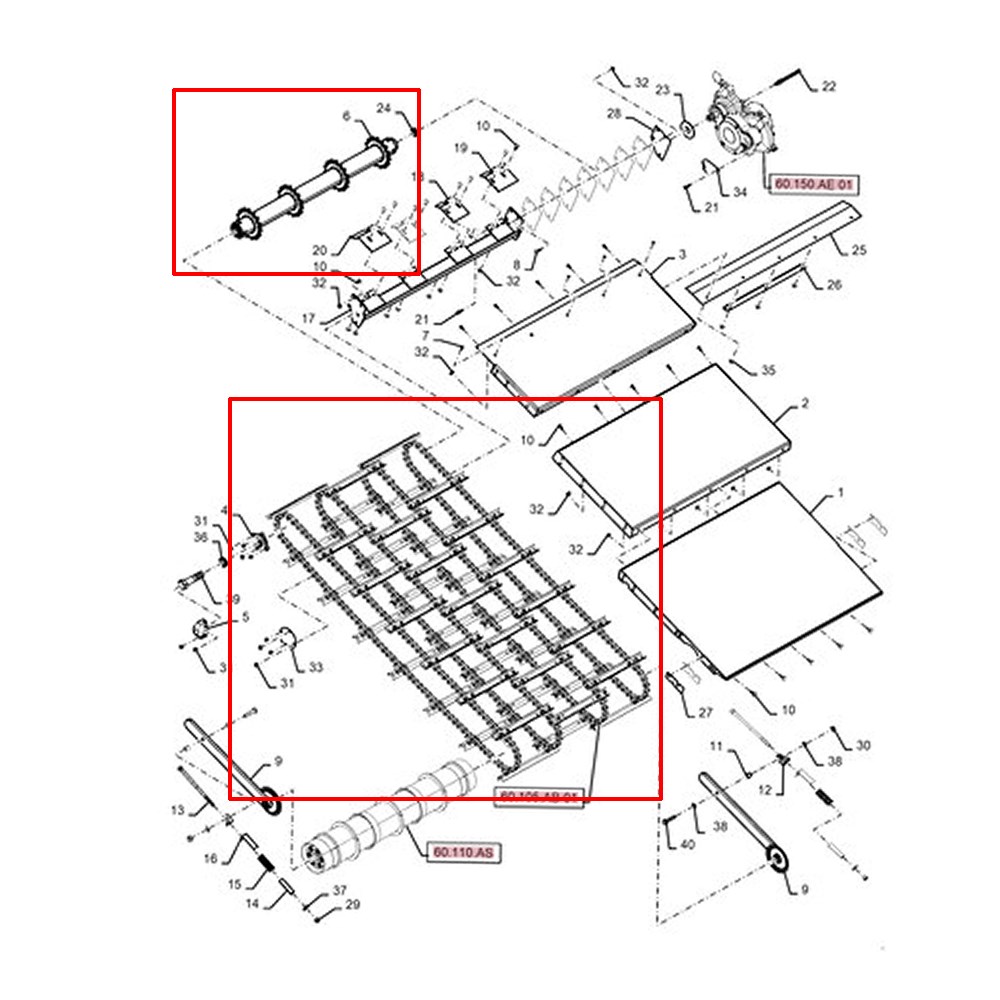

Feeder House Overhaul Kit for Case IH 7120 (Non Rock-Trap) featuring 84179642 and 84296465
| Component |
C&M Part No. |
OEM Part No. |
Technical Specification |

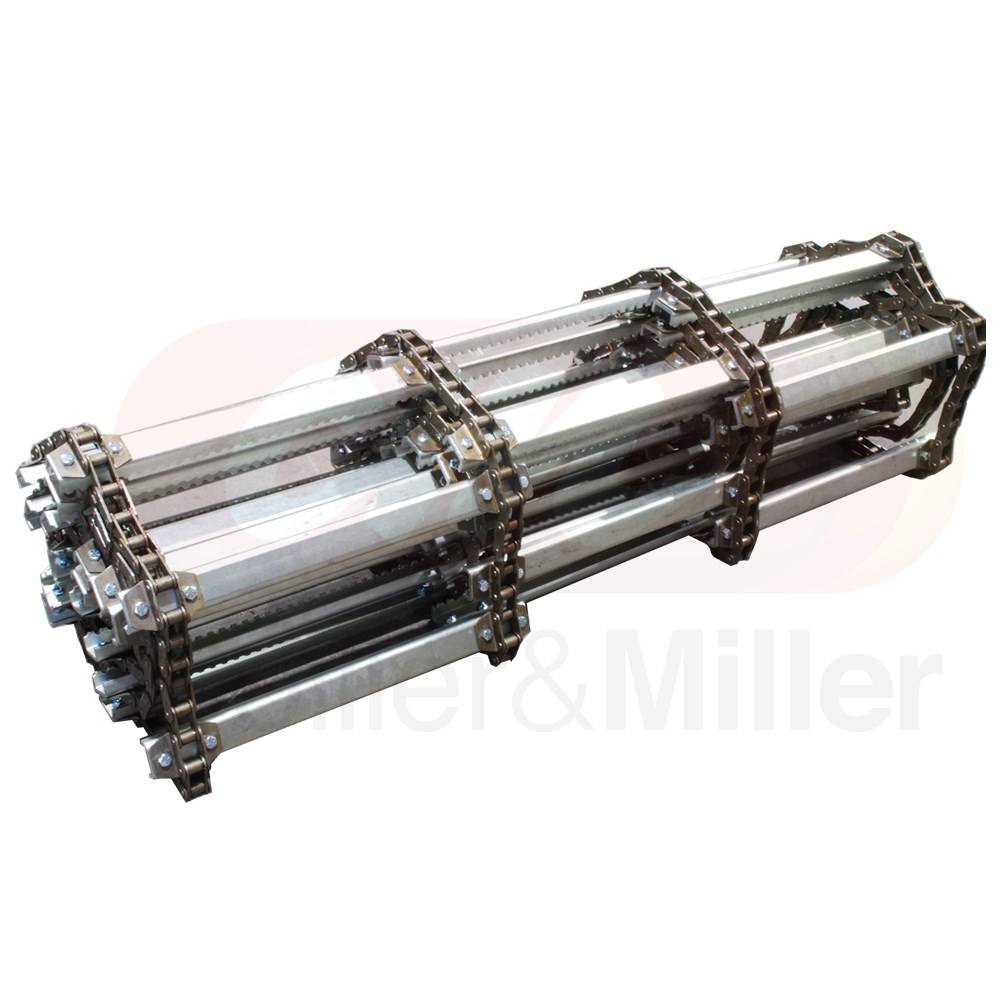

| Feeder Chain Assy |
CM039OEMCP |
84179642 |
4-Strand | 113 Links | Chrome Pin | 6mm U-Bars |

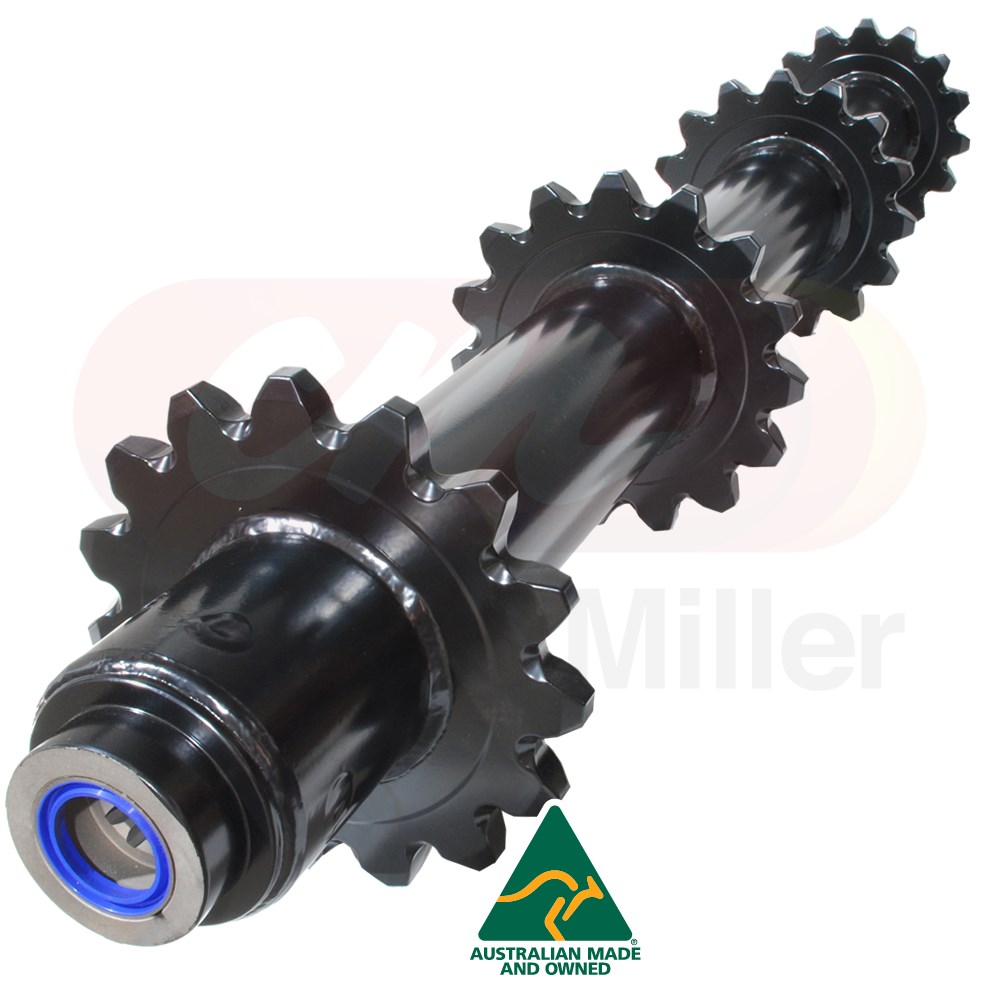

| Sprocket Assy |
WI89KIT |
84296465 |
Tube Style | Grade 1045 Steel | Greasable Spline |

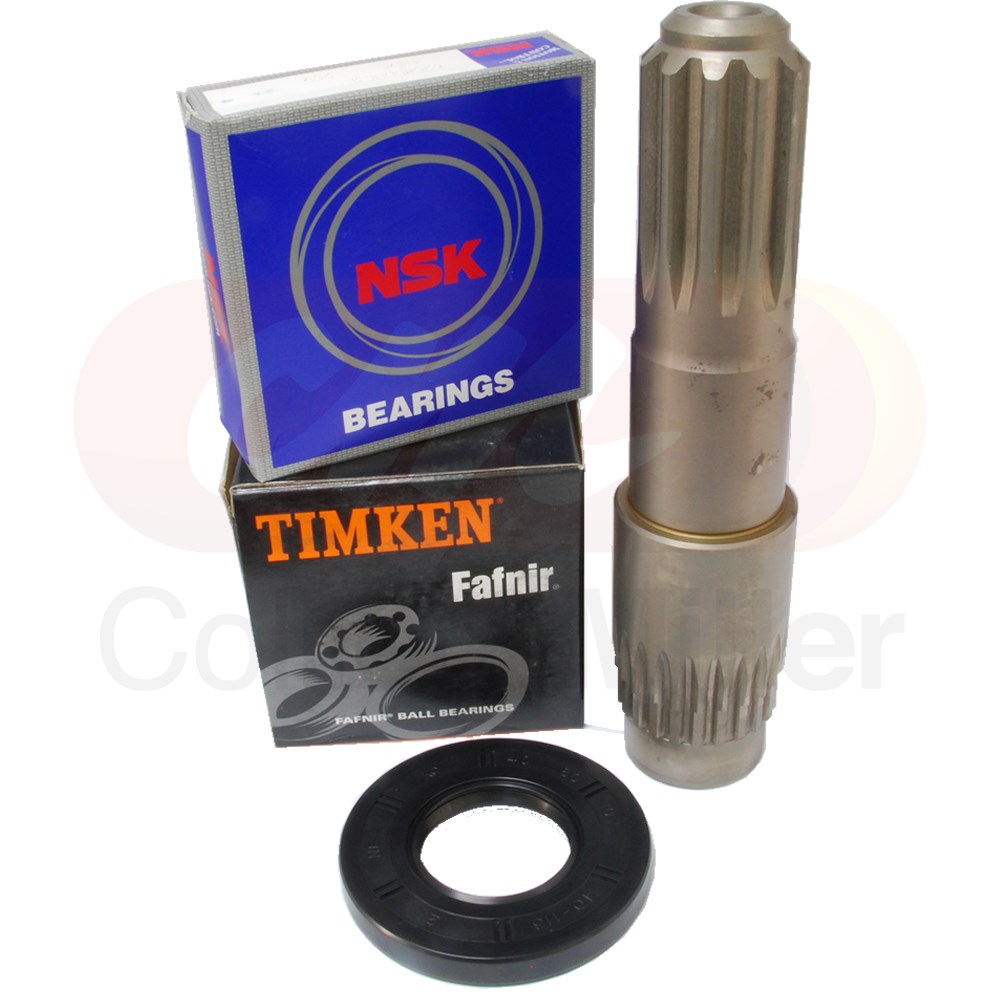

| Drive Shaft |
CM87282003 |
87282003 |
Feed Conveyor Drive Shaft |
| Bearing |
CM86995212 |
86995212, 301164 |
Bearing - Sproket RH End |
| Bearing |
6208DDUC3 |
301164 |
Bearing - Gearbox |
| Oil Seal |
M40X80 |
87612665 |
Seal - Gearbox |
Technical Specifications & Features
- Quality Assurance: Proudly C&M Australian made to keep your equipment in top condition.
- Roll-Serrated U-Bars: Premium 6mm electroplated slats. Unlike laser-cut bars, our roll-serrated bars consolidate the metal during manufacturing, eliminating micro-fractures and creating a significantly stronger slat less prone to cracking.
- Premium Chain: Grade CAA557 chrome pin chain for maximum extended service life and wear resistance.
- Sprocket Construction: Special heavy-wall seamless tube designed to handle high radial loading.
- Spline Technology: Nitride-hardened spline and hub for superior driveline integrity.
- Ready to Install: Supplied fully assembled with all connectors, half-links, and high-tensile fasteners.
Expert Maintenance Review
To keep your product feeding system in top condition, accurate gearbox output shaft alignment is critical. Standard preventative maintenance for the 7120 series requires precise alignment performed in accordance with CNH recommendations to ensure optimum service life of the splined components.
Damage to splined bushes and shafts is directly associated with incorrect alignment during installation.
Recommended Maintenance Upgrade
For a total feeder house restoration, we specifically recommend inspecting your Feeder Floor and Lower Idler Drum bearings when installing this drive kit.
Warranty Policy
Collier & Miller’s warranty complies with the Australian Consumer Law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.
This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.
Conditions of warranty
| SPROCKET DRIVE SPLINE AND HUB SERVICE LIFE IS DIRECTLY AFFECTED BY INSTALLATION. ACCURATE GEARBOX OUTPUT SHAFT ALIGNMENT PERFORMED IN ACCORDANCE WITH CNH RECOMMENDATIONS WILL ENSURE OPTIMUM SERVICE LIFE. WEAR OF THE SPLINED HUB AND SHAFT IS DIRECTLY ASSOCIATED WITH THE MISALIGNMENT OF THE GEARBOX AND FEEDER CHAIN TOP SPROCKET DURING INSTALLATION AND/OR OPERATION. ANY WEAR ASSOCIATED WITH THESE PARTS WILL BE CONSIDERED NORMAL WEAR, TEAR OR AN INSTALLATION/OPERATION ISSUE AND WILL NOT BE COVERED BY WARRANTY. |
Process
In the event of a defect which may result in a warranty claim:
- The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
- At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller factory or other location advised by a Collier & Miller authorised representative.
- The Warranty is not transferable to any third party or subsequent purchaser.
- Components and conditions not covered by warranty include: Spline drive shaft and splined hub (This is a wear part and subject to installation and operational variables)
