CASE-IH® Compatible

Feeder House Chain Assembly (Non Rock-Trap)

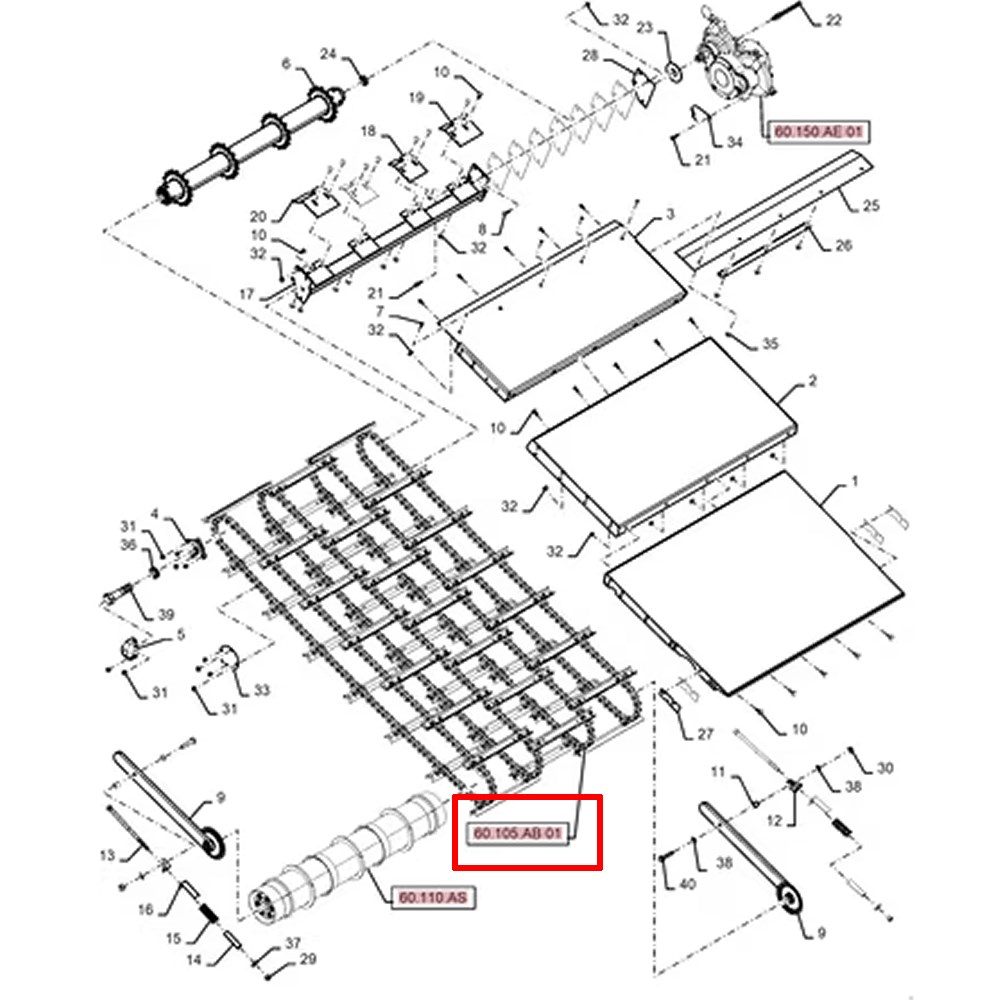

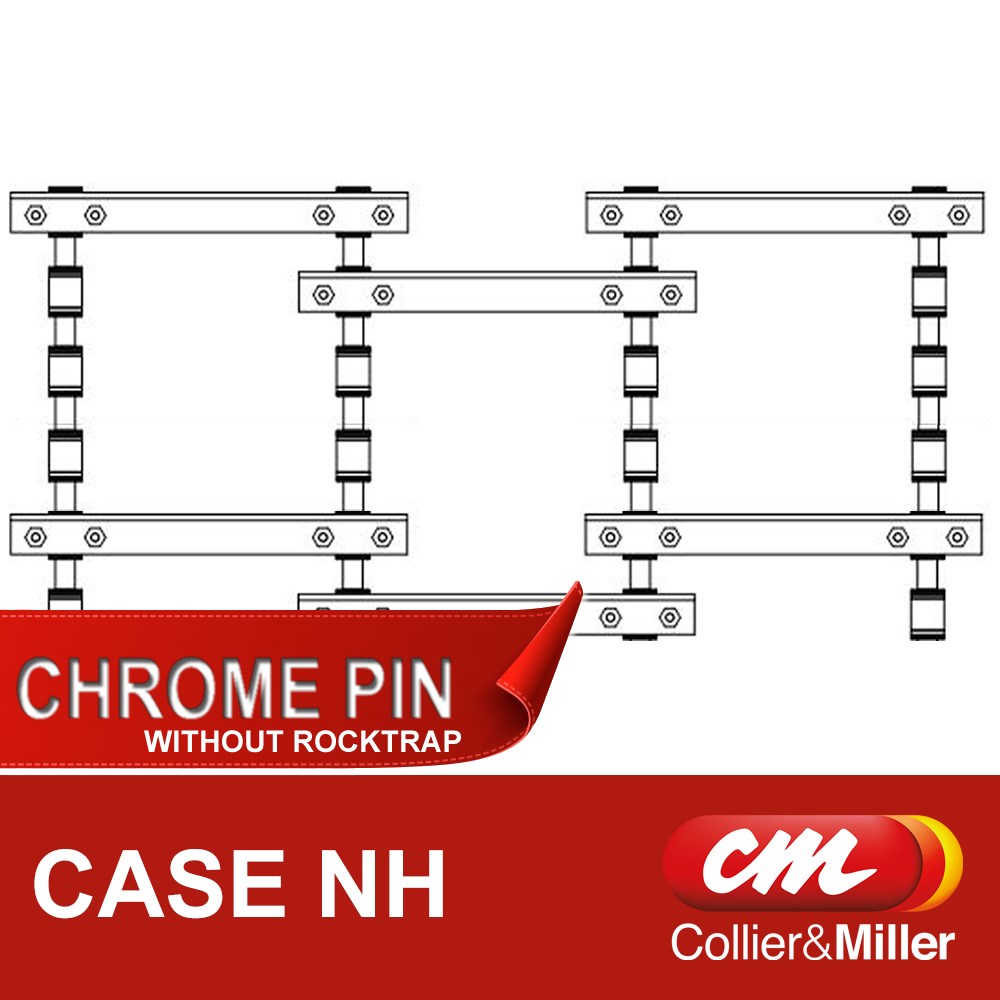

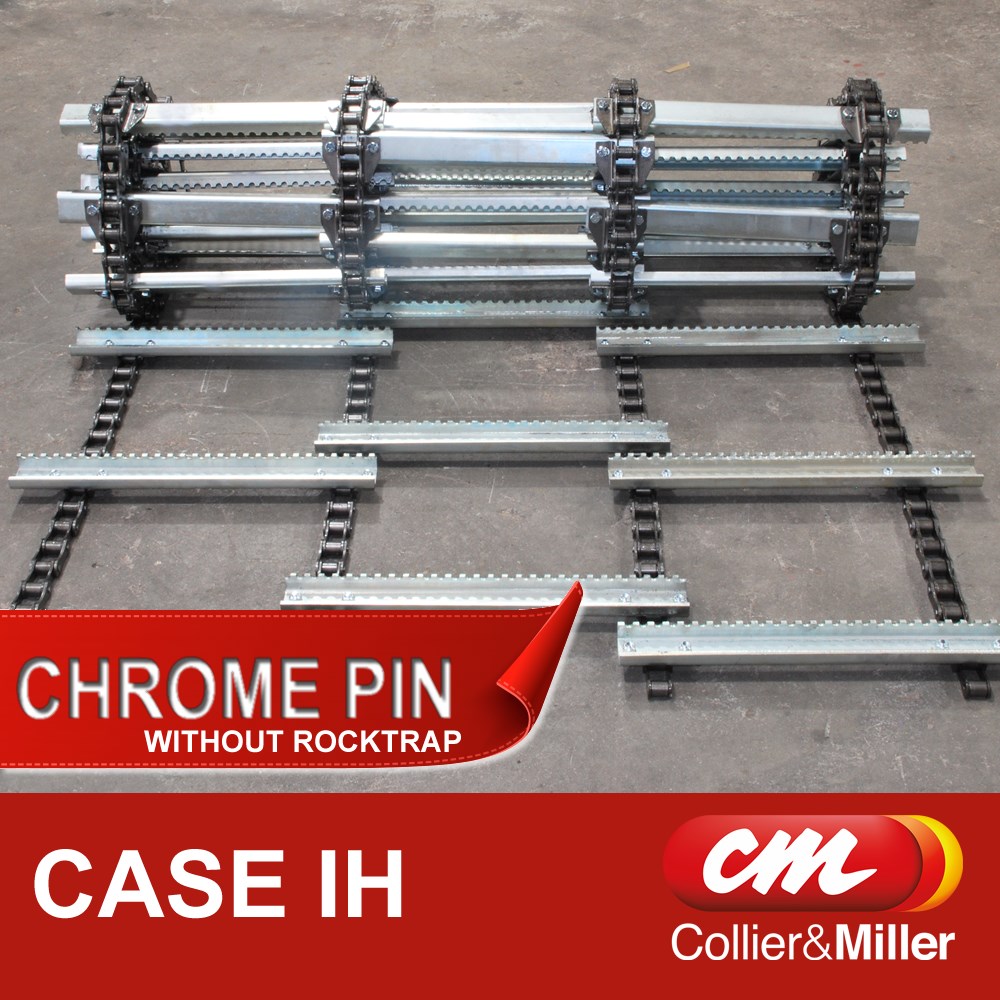

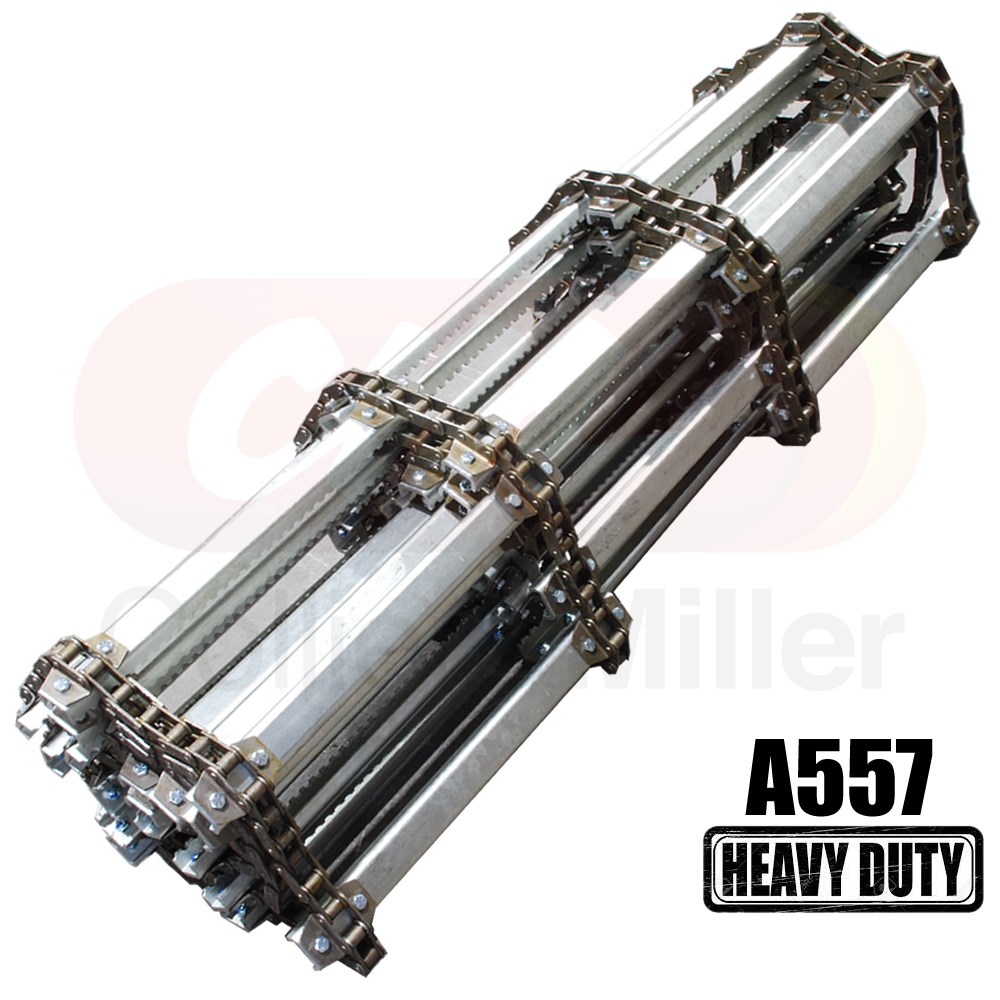

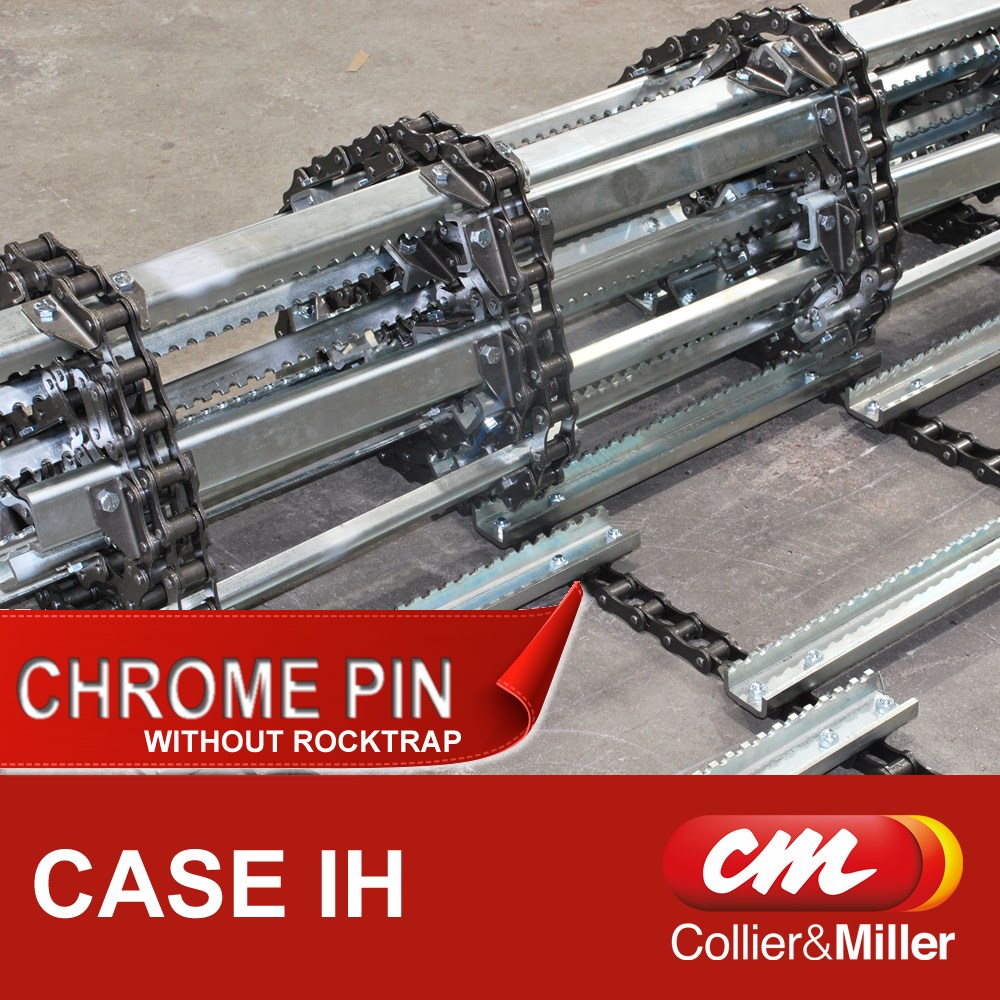

C&M replacement complete feeder house chain assembly to suit the front feeder house on CASE-IH® 120, 230 & 240 flagship series combine harvesters (non rock-trap). This is a set of four (4) replacement chains fiited with G350 electroplated 6mm roll-serrated u-bar slats with the same spacing as the CASE-IH® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chrome pin chain and high performance roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

Part Numbers

• 84222952 84179642

Series	Models	Serial/Year
CASE-IH® 120 Series	7120, 8120, 9120
CASE-IH® 230 Series	7230, 8230, 9230
CASE-IH® 240 Series	7240, 8240, 9240

Features

• Fits Feeder House without Rock-Trap
• Premium grade chrome pin chain
• Zinc plated 6mm roll-seratted U-Bar
• Connectors & Half Links Included
• Bolted assembly ready to install

Technical Specifications

Assembly Code	CM039OEMCP
Assembly Width
Chain Type	A557	AMEC INC
Chain Attachment	K50
Chain Strands	4
Chain Length	112L	Inc Connectors
Chain Connectors	4	Threaded
Chain Offset Links	8	Threaded
Bar Length	480mm	18.89"
Bar Quantity	42  x 6mm Roll-Serrated U-Bars	All bars the same - punched for Left & Right
Bar Chain Center
Fastener Specs	M10X25 Zinc Class 10.9 Loctite	M10 Zinc torque prevailing cone lock nut

Open Build Sheet


* Contact Collier & Miller as access is restricted to build data sheets

10829328 84179642 87646005
