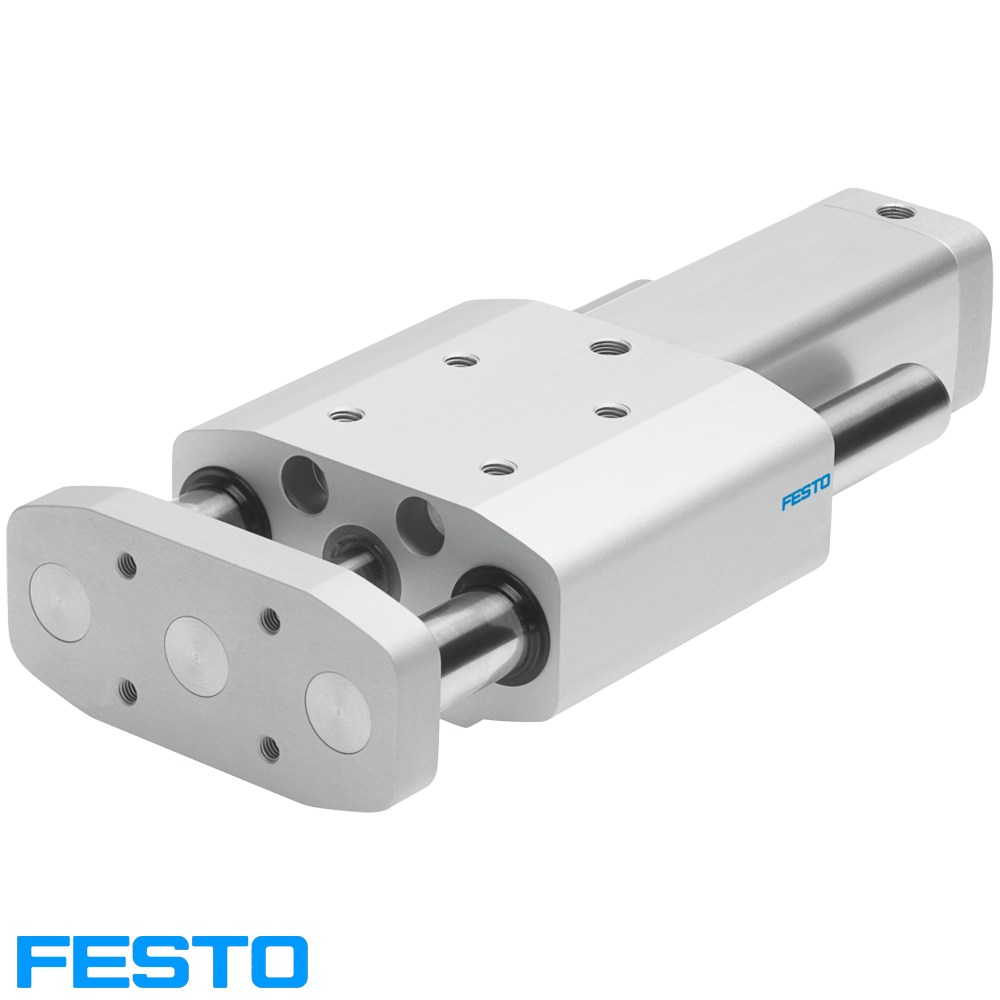

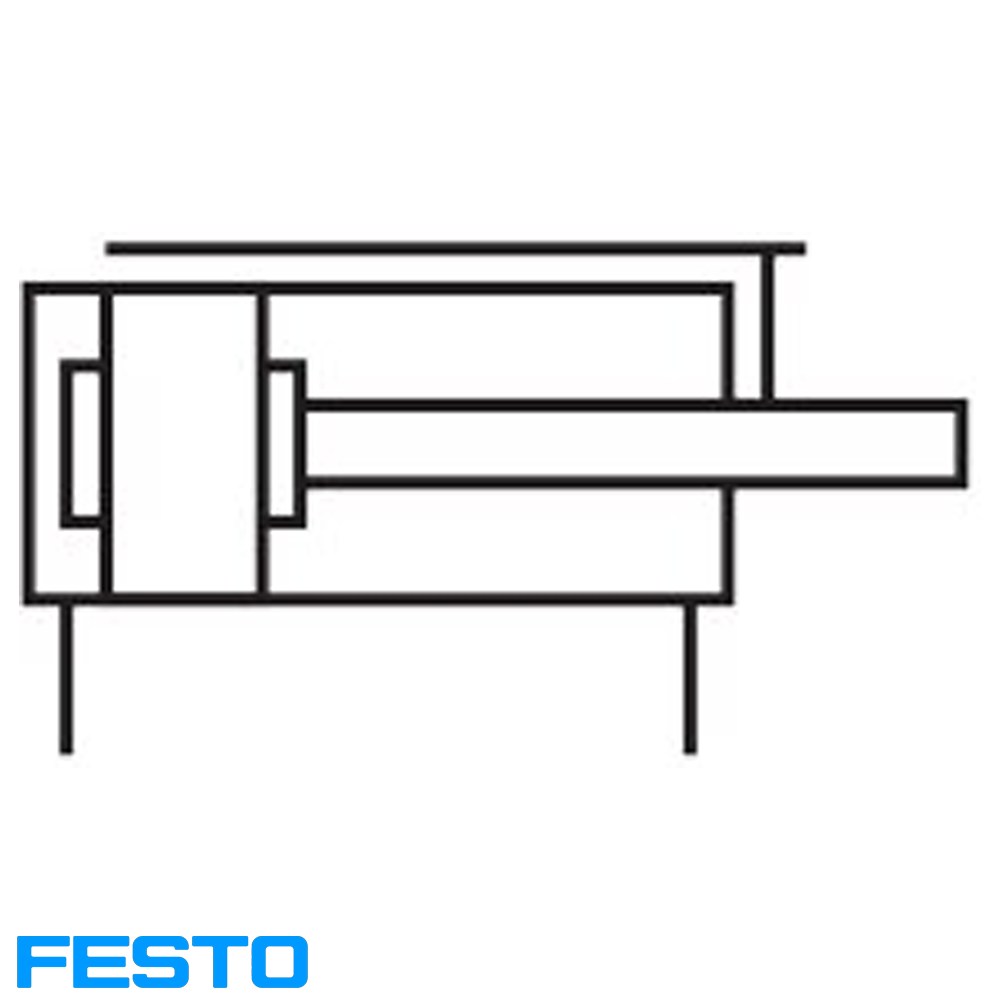

Festo Guided Drive Cylinder – Yoke Type, Ø20 mm
The Festo Guided Drive Cylinder is a compact, high-precision pneumatic solution designed for controlled linear motion with excellent guidance and stability. Featuring a yoke-style drive unit and plain-bearing guide, it delivers smooth, accurate movement even under high corrosion stress, making it ideal for automation, handling, and light assembly applications.
Features
- Guided drive design for improved stability and reduced torsional backlash
- Double-acting operation for controlled advance and return strokes
- Elastic cushioning at both ends for smooth, low-impact end positions
- Plain-bearing guide for reliable, low-maintenance performance
- Suitable for unlubricated operation, with option for lubricated use
- High corrosion resistance (CRC 3) for demanding industrial environments
- Food-industry suitability (refer to supplementary material information)
- Optional mounting position for flexible installation
Specifications
- Stroke range: 10 mm to 400 mm
- Piston diameter: 20 mm
- Operating pressure: 0.2 MPa to 1 MPa (2 to 10 bar)
- Operating medium compressed air to ISO 8573-1:2010 [7:4:4]
- Theoretical force at 6 bar: 189 N advance, 141 N return
- Torsional backlash: 0.125°
- Ambient temperature range: -20 °C to +80 °C
- Impact energy in end positions: 0.2 J
- Pneumatic connection: M5
- Mounting type through-hole via female thread
- Materials: wrought aluminium alloy housing and barrel, high-alloy stainless steel guide rod and piston rod
- RoHS-compliant, LABS (PWIS) conformity VDMA24364-B2-L
