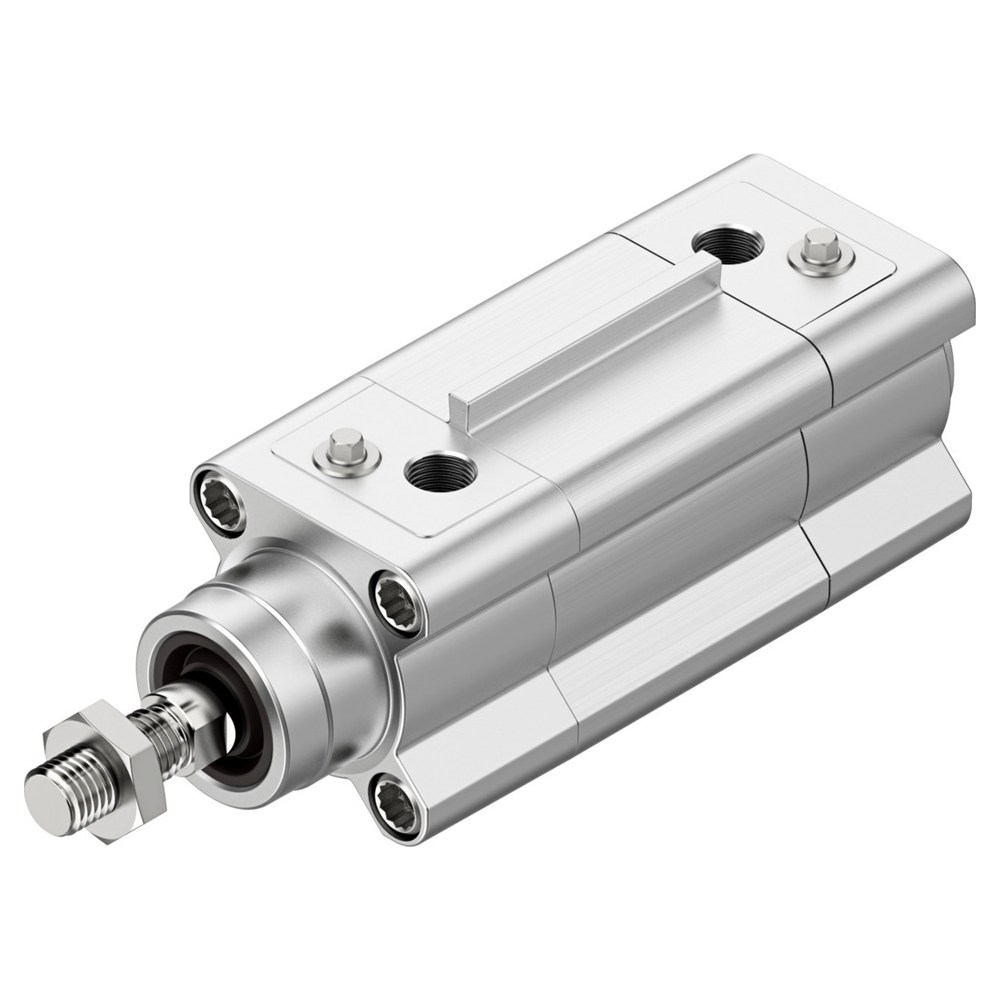

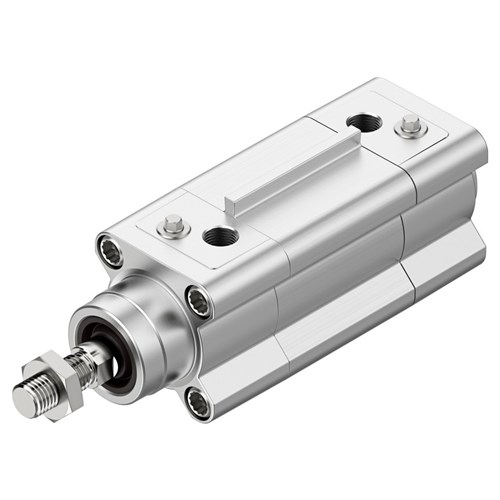

Festo Double Acting Cylinder – Square Body 32mm Bore x 25mm Stroke (DSBF-C-32-25-PPVA-N3-R)
The Festo DSBF Series Double Acting Cylinder is a high-performance pneumatic actuator designed for precision, durability, and versatility in industrial automation applications. Featuring a 32mm bore, 25mm stroke, and ISO 15552 compliance, this square-body cylinder delivers reliable force output with adjustable pneumatic cushioning for smooth end-position control, even in demanding environments.
Features
- Double-acting operation for controlled advance and return motion
- ISO 15552 compliant for easy integration and interchangeability

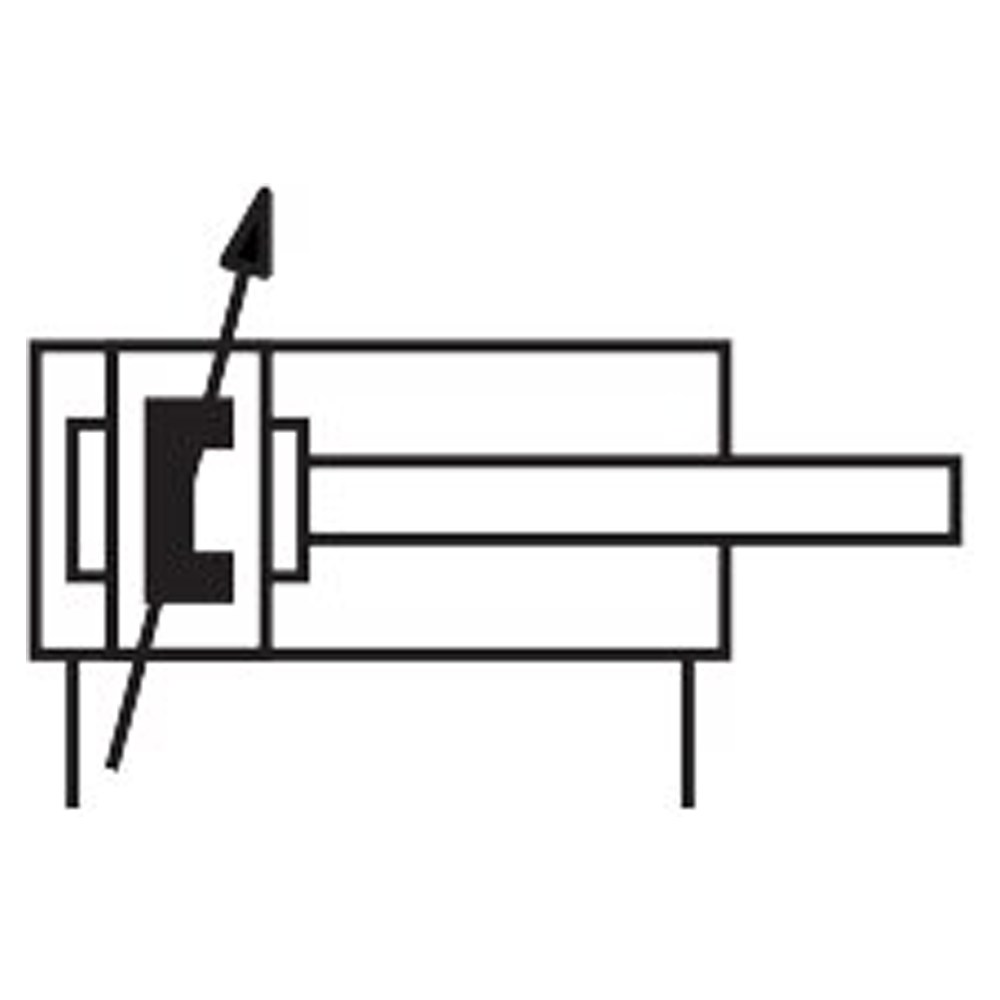

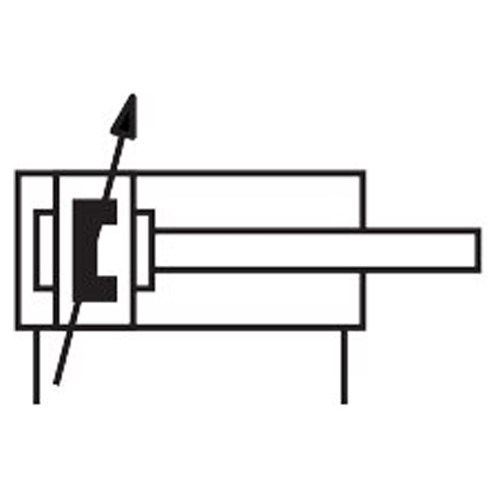

- Adjustable pneumatic cushioning at both ends for smooth, low-impact operation
- High corrosion resistance (CRC 3) suitable for harsh industrial environments
- Cleanroom suitable (ISO Class 5) for sensitive applications
- Proximity switch compatibility for position detection
- Optional mounting position for flexible installation
Specifications
- Bore: 32 mm
- Stroke: 25 mm
- Mode of operation: Double acting
- Operating pressure: 0.6 to 12 bar (0.06 to 1.2 MPa)
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Cushioning: Pneumatic, adjustable at both ends
- Piston rod thread: M10 x 1.25 (male)
- Theoretical force at 6 bar: 483 N (advance), 415 N (return)
- Ambient temperature: -20 °C to +80 °C
- Pneumatic connection: G1/8
- Mounting type: Via female thread (with accessories)
- Position detection: Via proximity switch
- Corrosion resistance class: CRC 3
- Product weight: 542 g
- Cylinder barrel material: Anodised wrought aluminium alloy
- Piston rod material: High-alloy stainless steel
- Cover material: Coated die-cast aluminium
- Standards compliance: ISO 15552, RoHS compliant
