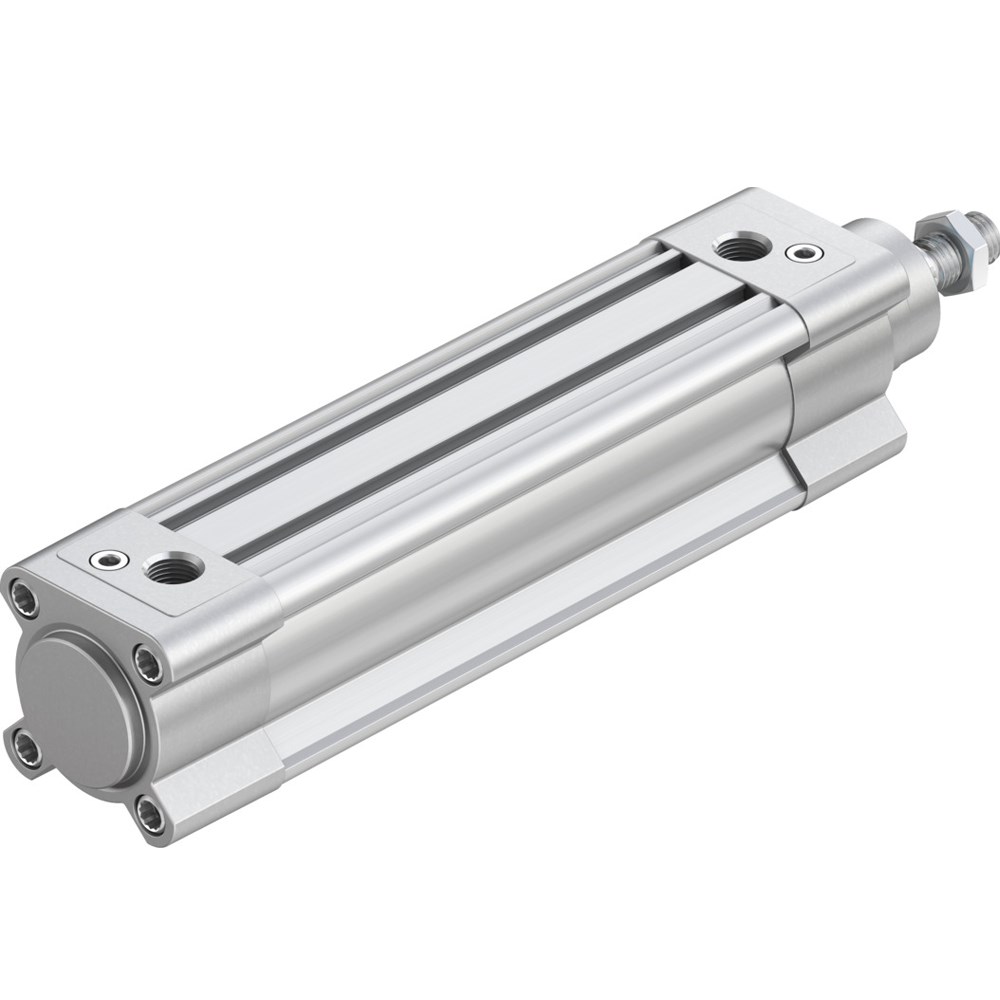

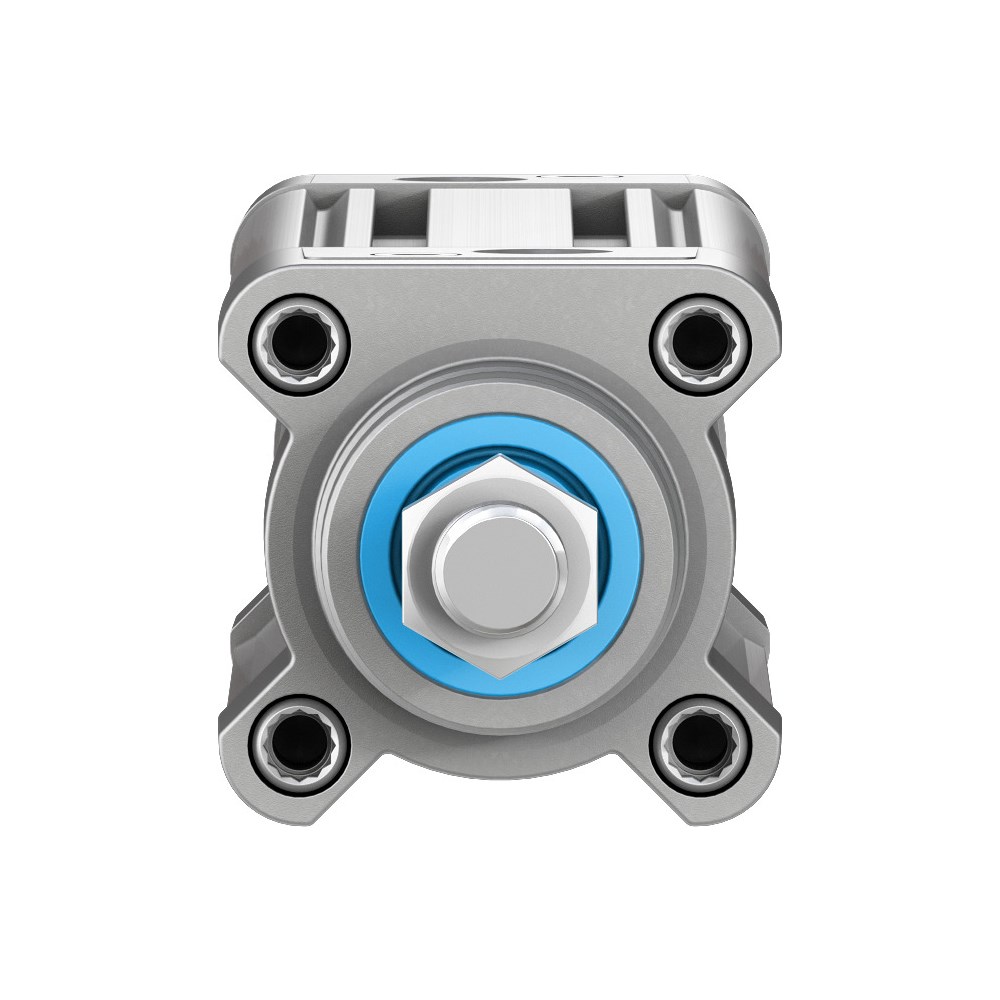

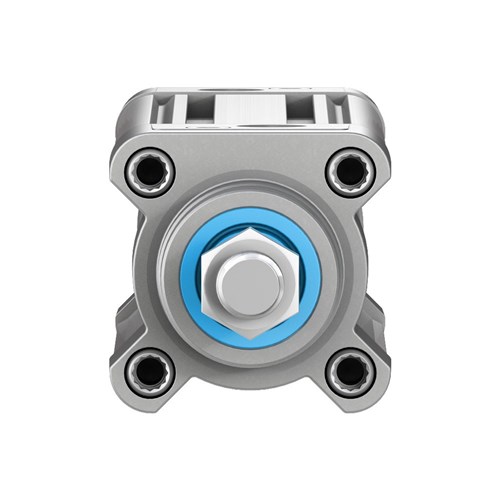

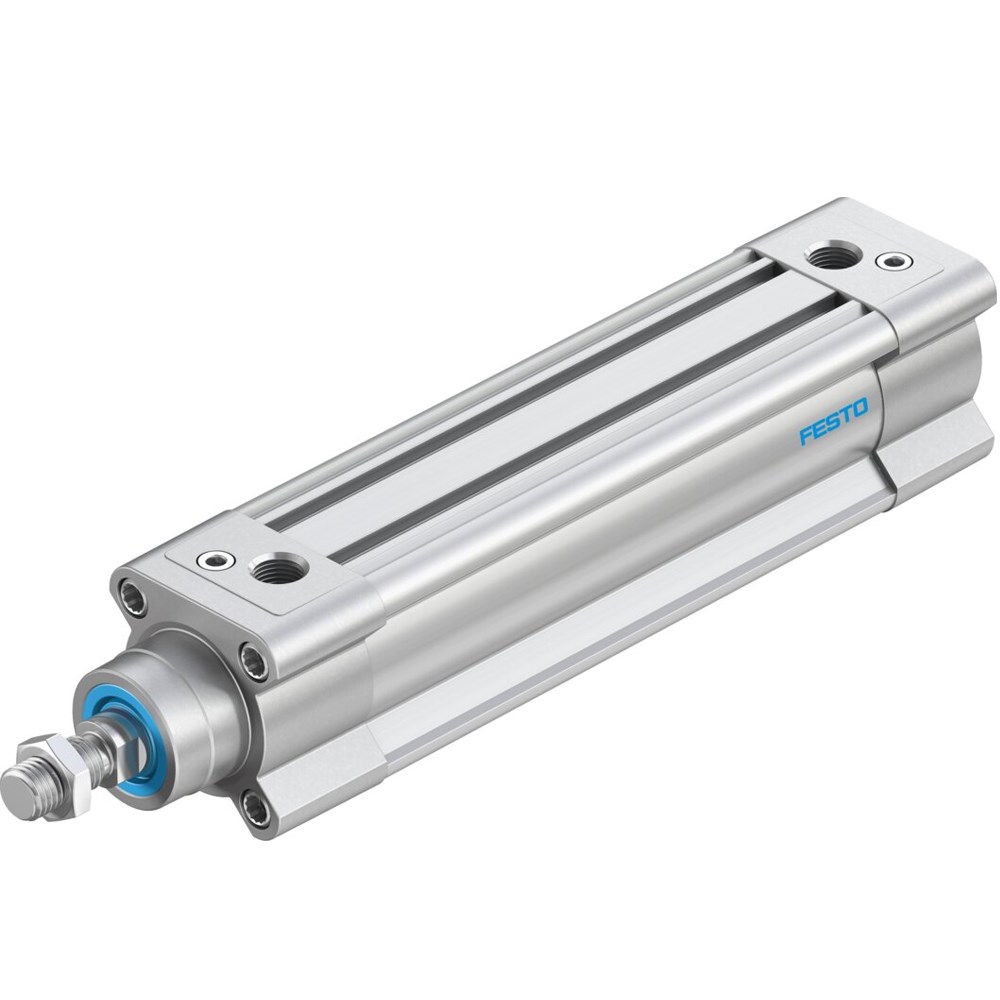

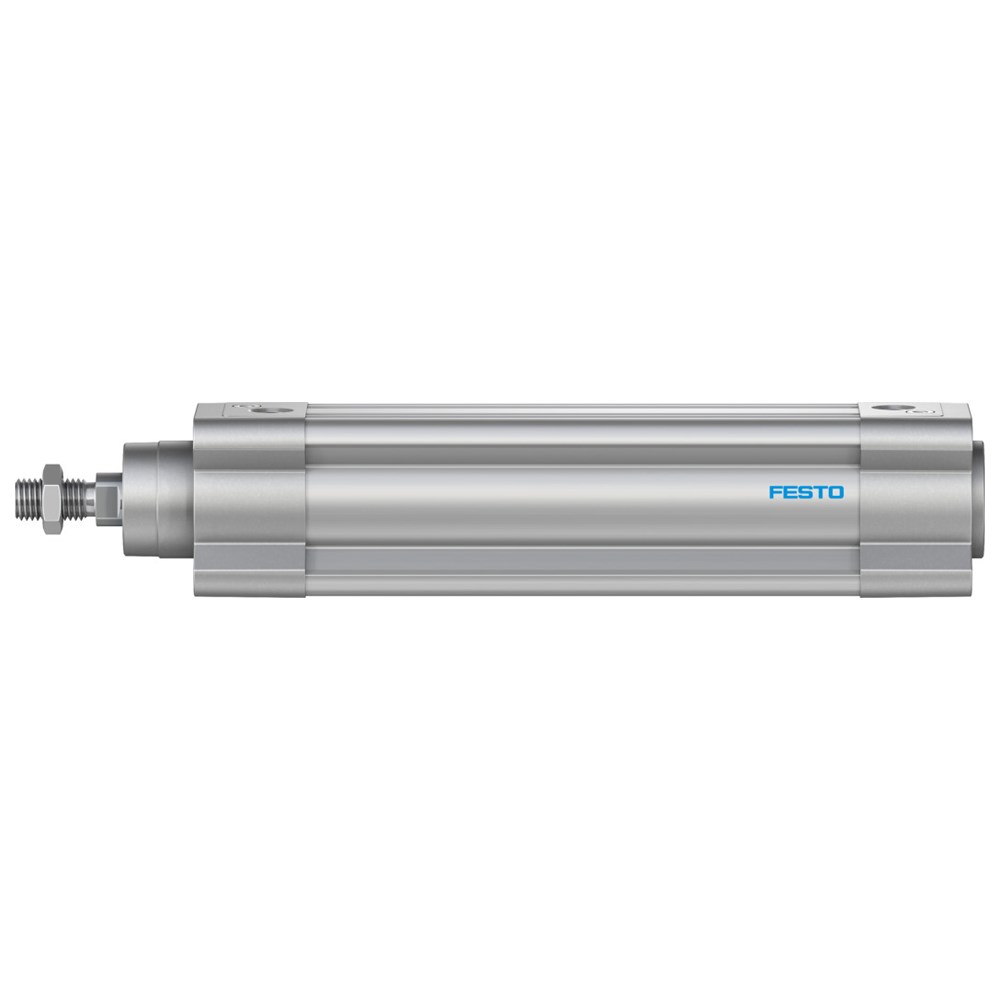

FESTO DSBC-40-125 Double Acting Cylinder – 40mm Bore x 125mm Stroke
The FESTO DSBC-40-125 is a reliable ISO 15552 pneumatic cylinder designed for precise, consistent motion in automation environments. Featuring a durable square profile barrel, adjustable end cushioning, and compatibility with proximity switch position detection, it delivers stable performance and long service life.
Features

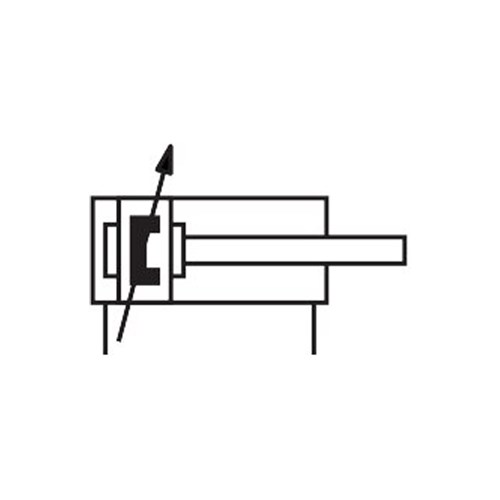

- Double-acting operation for controlled actuation
- Adjustable pneumatic cushioning at both ends
- ISO 15552 compliant for easy mounting and interchangeability
- Square profile barrel design for stability and strength
- Proximity switch compatible for position feedback
- Suitable for lubricated or non-lubricated compressed air systems
Specifications
- Bore Size: 40 mm
- Stroke Length: 125 mm
- Piston Rod Thread: M12 x 1.25 (male)
- Operating Pressure: 0.6 to 12 bar
- Operating Medium: Compressed air to ISO 8573-1 (7:4:4)
- Pneumatic Connection: G1/4
- Temperature Range: -20°C to +80°C
- Corrosion Class: CRC 2 (Moderate)
- Cleanroom Rating: ISO Class 5
- Theoretical Force @ 6 bar: 754 N (advance), 633 N (return)
- Cylinder Barrel Material: Smooth-anodised aluminium
- Piston Rod Material: High-alloy steel
- Product Weight: Approx. 1.20 kg
