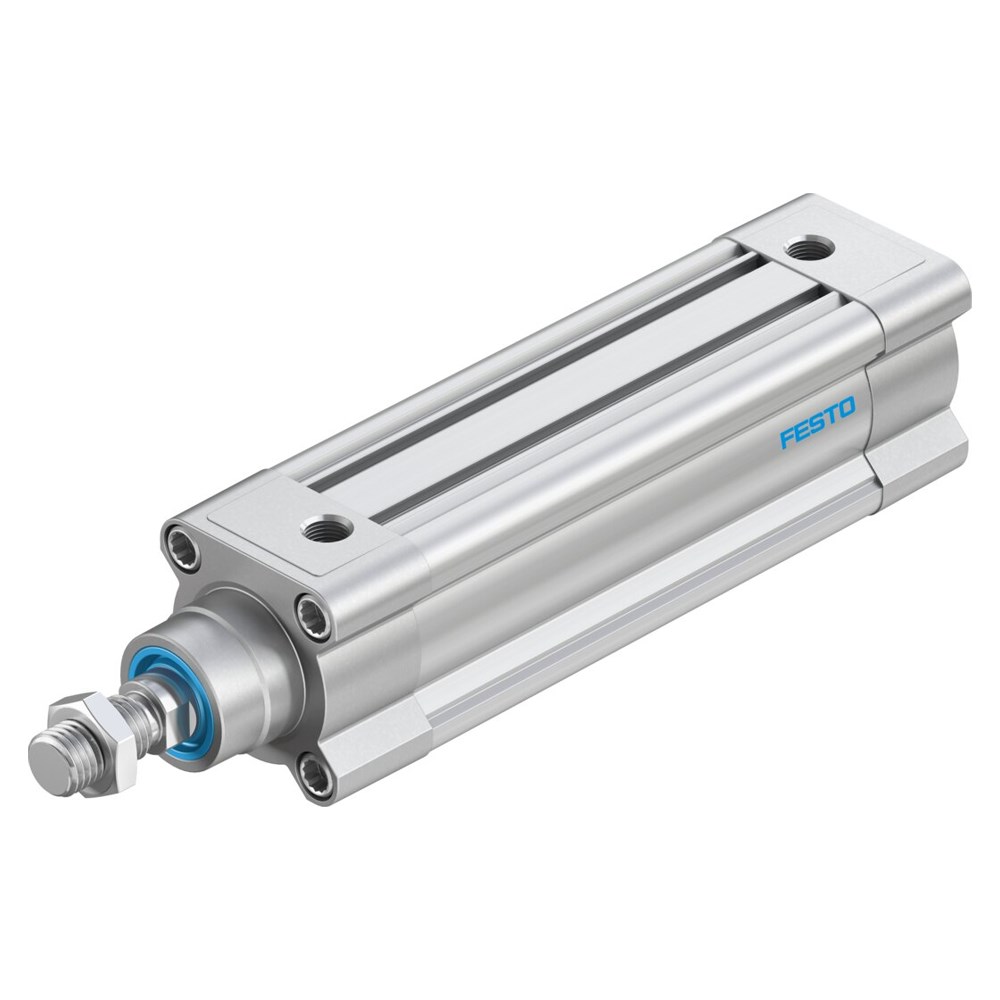

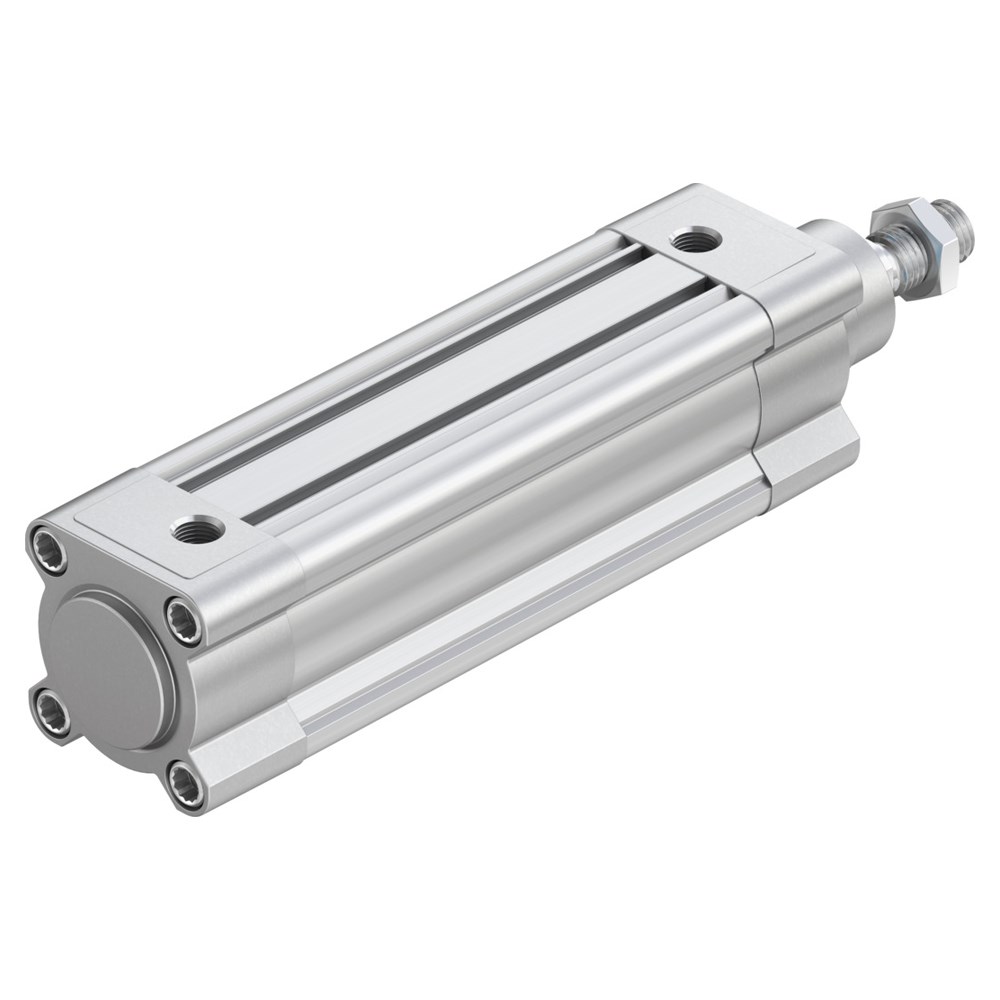

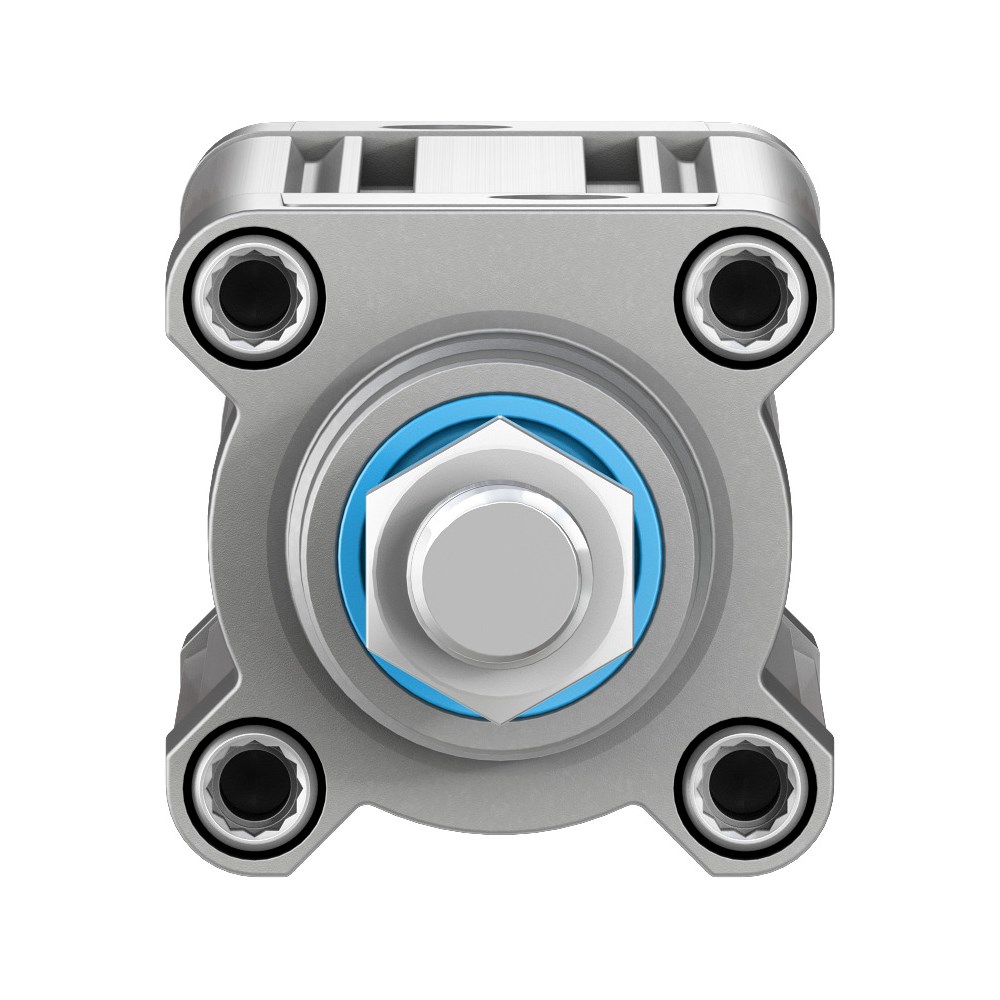

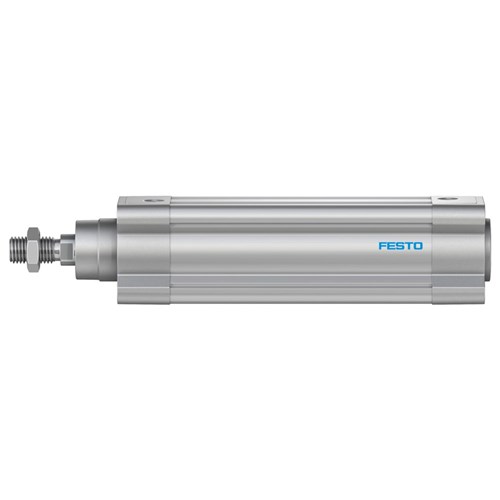

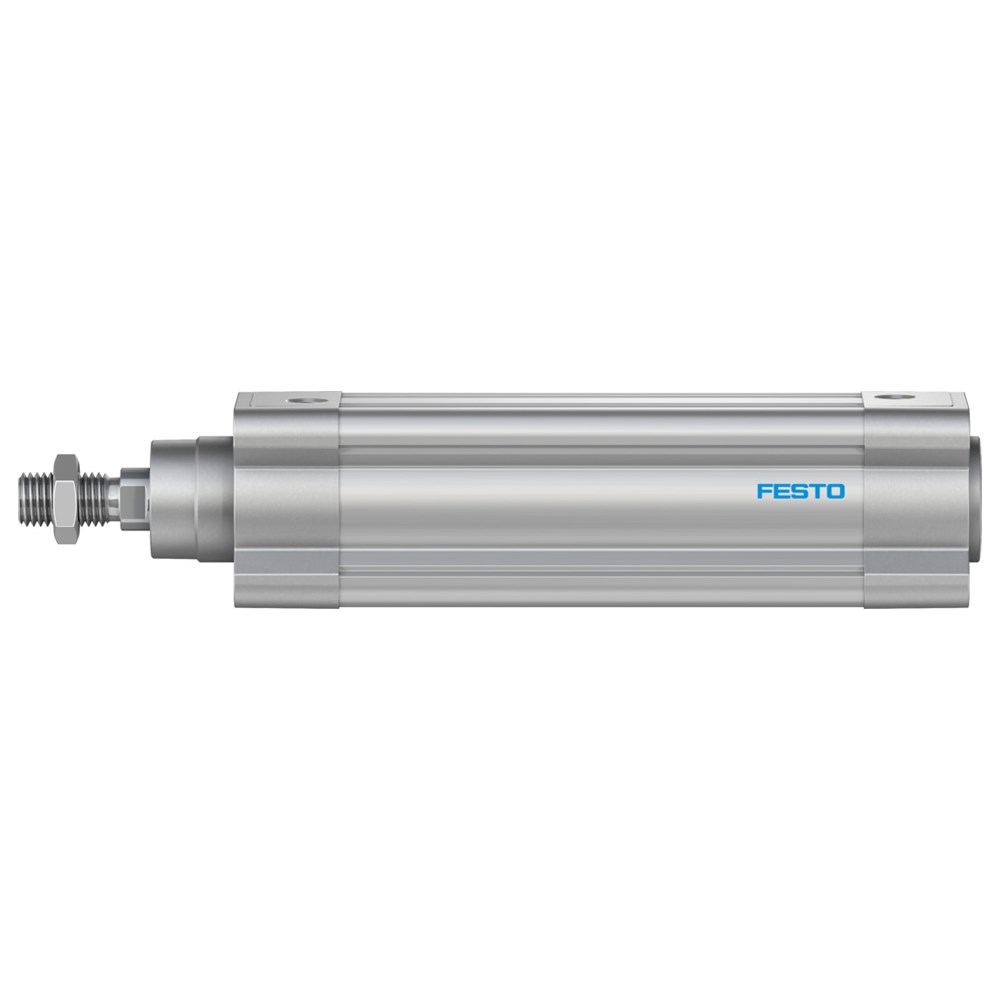

FESTO DSBC-50-125 Double Acting Cylinder – 50mm Bore x 125mm Stroke
The FESTO DSBC-50-125 is a robust, ISO 15552-compliant pneumatic cylinder designed for reliable and efficient performance in a wide range of industrial automation applications. With a strong square profile barrel, adjustable cushioning at both ends, and compatibility with proximity switch position detection, it offers both durability and precise motion control.
Features

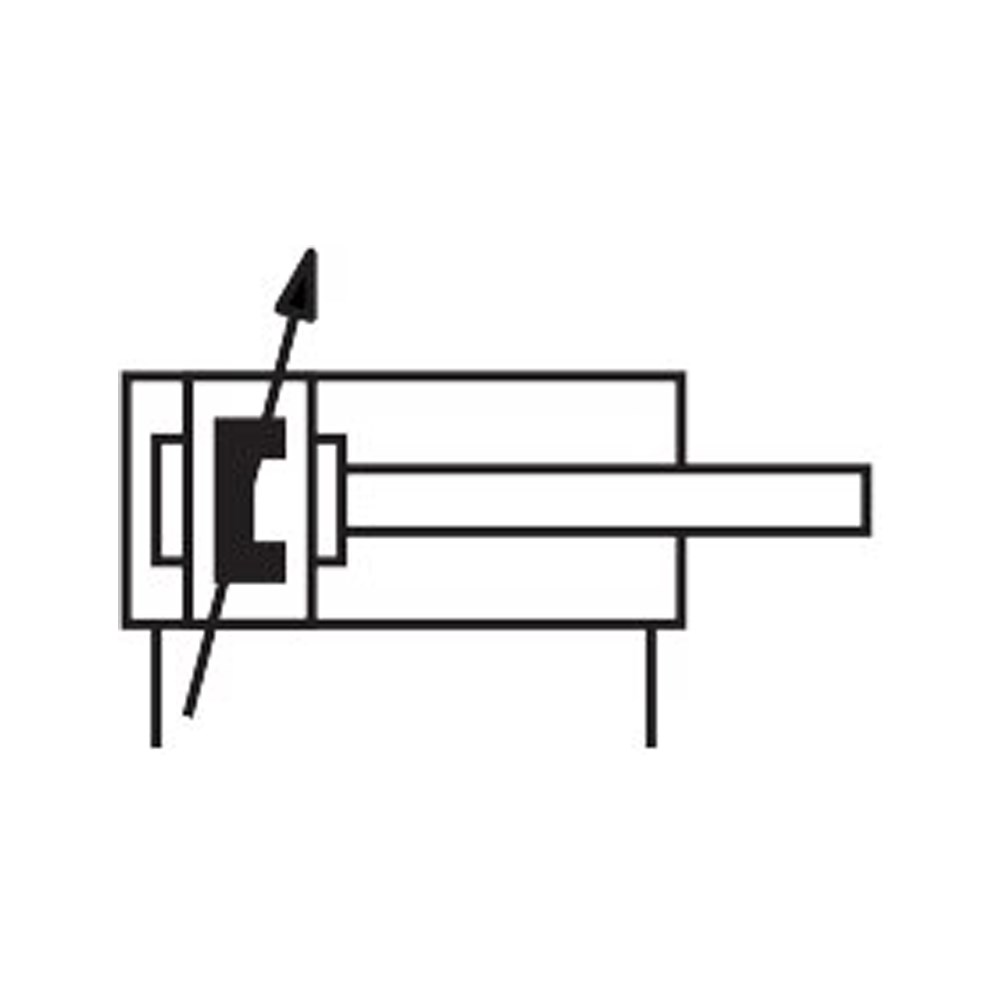

- Double-acting operation for controlled forward and return strokes
- Adjustable pneumatic cushioning at both ends
- ISO 15552 standard for universal mounting and interchangeability
- Square profile barrel design for stability and rigidity
- Compatible with proximity switches for position sensing
- Suitable for both lubricated and non-lubricated air systems
Specifications
- Bore Size: 50 mm
- Stroke Length: 125 mm
- Piston Rod Thread: M16 x 1.5 (male)
- Operating Pressure: 0.4 to 12 bar
- Operating Medium: Compressed air to ISO 8573-1 (7:4:4)
- Pneumatic Connection: G1/4
- Temperature Range: -20°C to +80°C
- Corrosion Class: CRC 2 (Moderate)
- Cleanroom Rating: ISO Class 5
- Theoretical Force @ 6 bar: 1178 N (advance), 990 N (return)
- Body Material: Smooth-anodised aluminium barrel with high-alloy steel rod
- Total Weight: Approx. 1.89 kg
