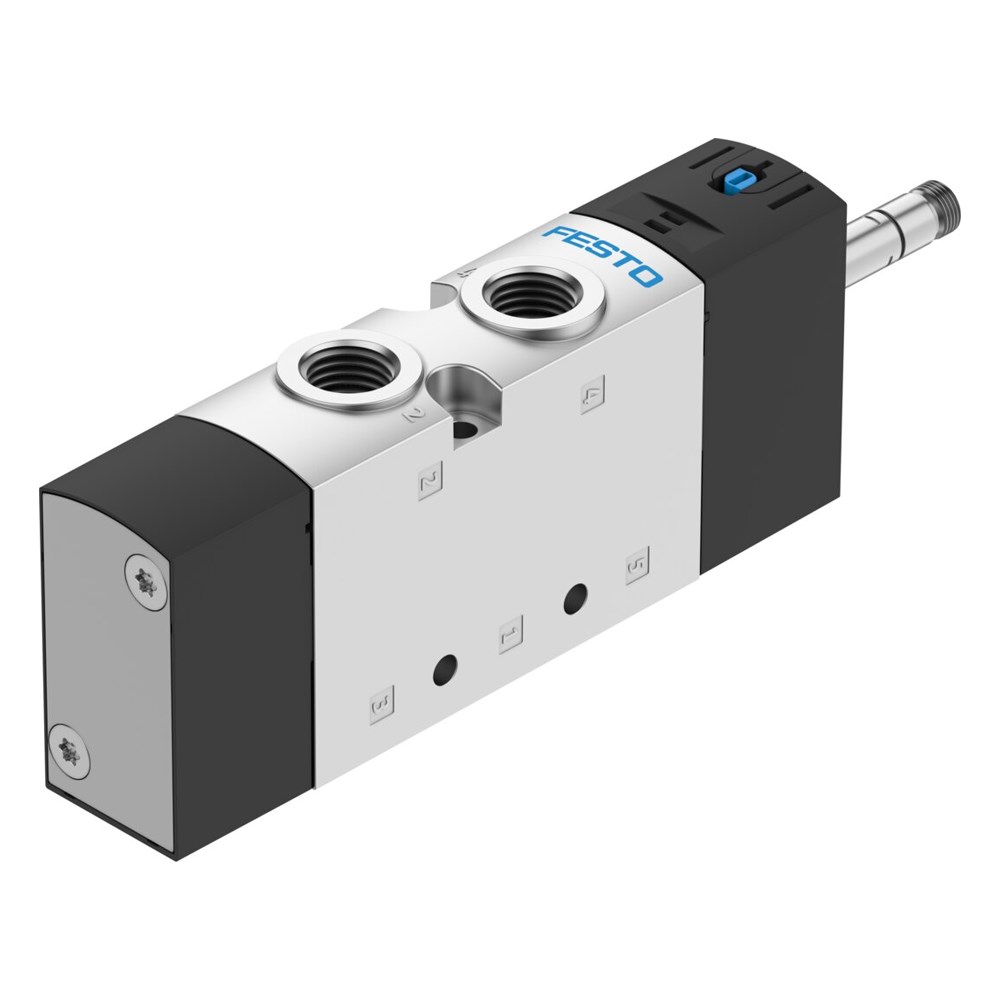

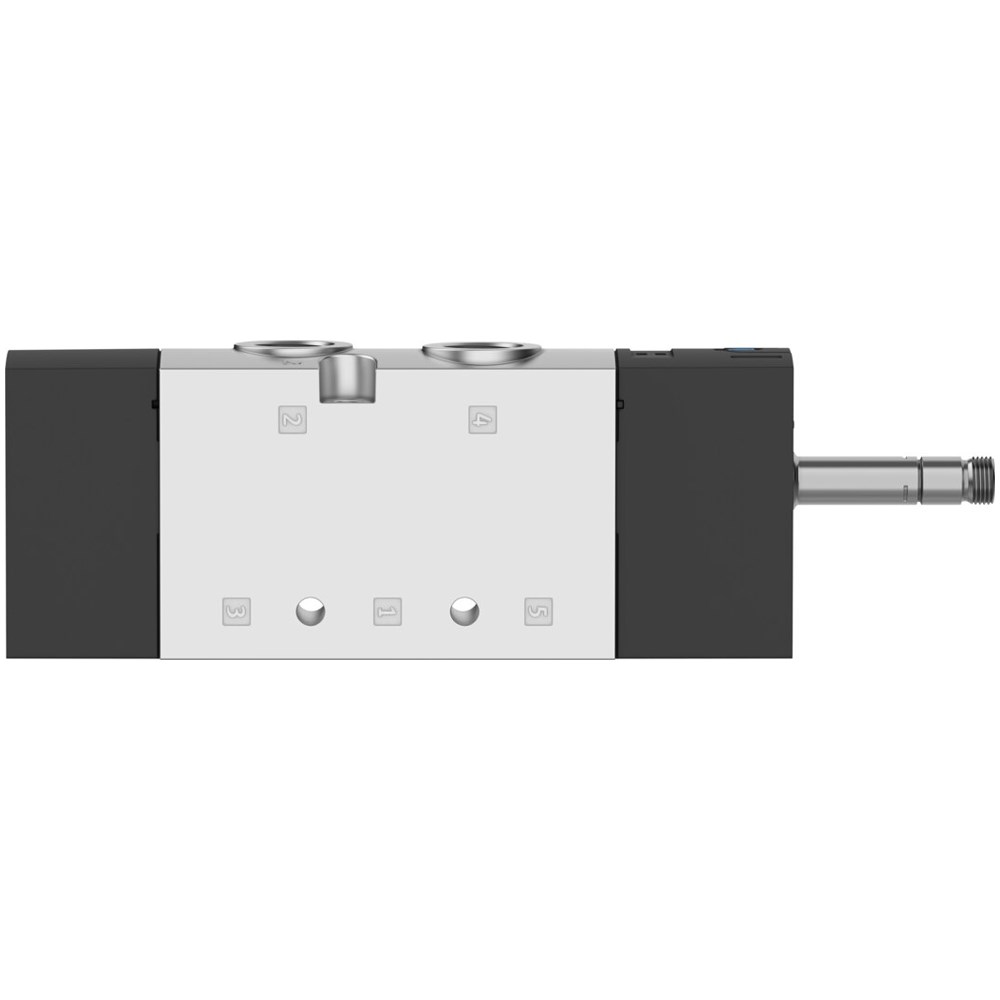

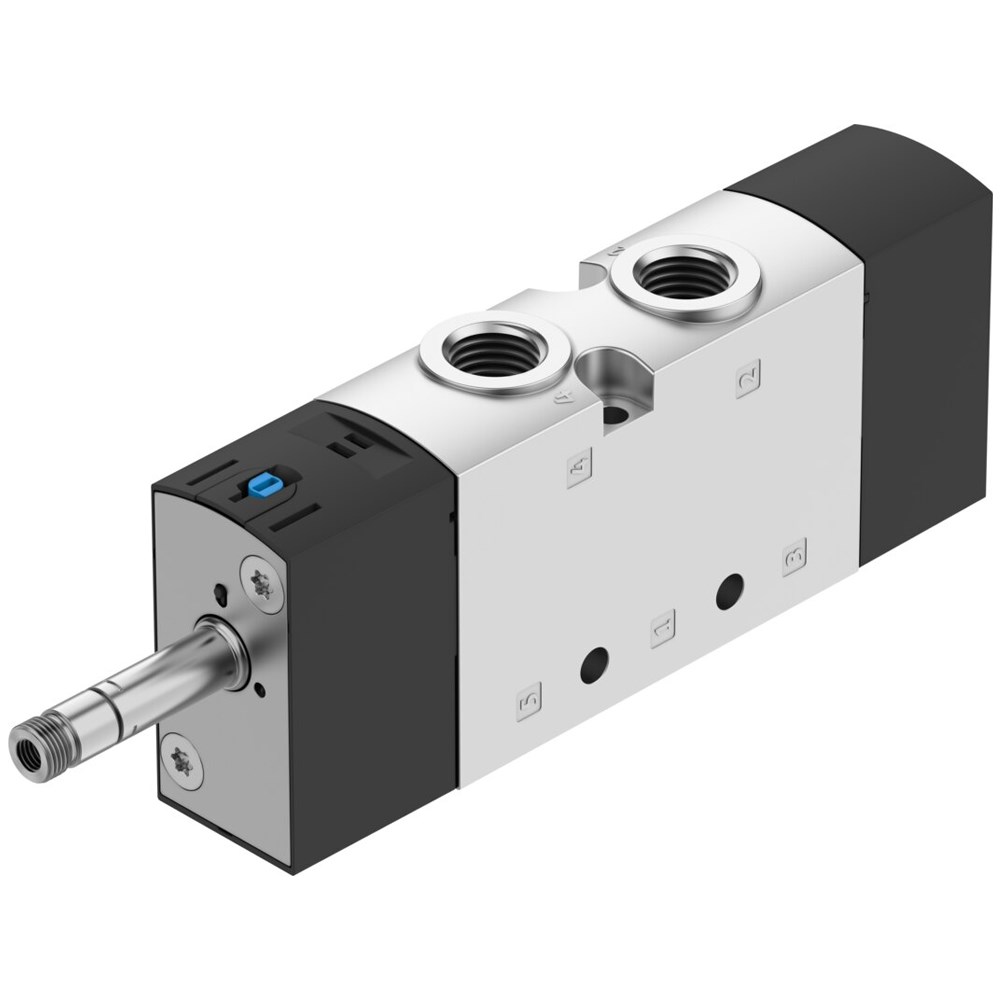

FESTO VUVS-L25-M32C-MD-G14-F8 Single Solenoid 3/2 Normally Closed Valve – 1/4" Port, Without Coil
The FESTO VUVS-L25-M32C-MD-G14-F8 is a compact 3/2-way monostable valve designed for precise pneumatic control in industrial automation. With an electrically actuated piston gate design, mechanical spring reset, and optional flow control on the exhaust, it provides reliable performance under vibration, shock, and moderate corrosion conditions.
Features
- Electrically actuated single solenoid for controlled pneumatic operation
- Mechanical spring reset ensures dependable return
- Exhaust flow control option for system flexibility
- Detenting or non-detenting manual override
- Pilot actuated with internal pilot air supply
- Soft-sealing principle for leak-free operation
- Transport-tested vibration and shock resistance
Specifications
- Valve Size: 26.5 mm
- Nominal Port Size: G1/4
- Standard Nominal Flow Rate: 1000 l/min (DIN 1343)
- Operating Pressure: 2.5–10 bar
- Switching Time On/Off: 11 ms / 40 ms
- Operating Medium: Compressed air to ISO 8573-1 [7:4:4]
- Temperature Range: -10°C to +60°C
- Cleanroom Class: ISO 14644-1 Class 6
- Housing Material: Painted
- Piston Material: Wrought aluminium alloy
- Seal Material: HNBR/NBR
- Screws Material: Galvanised steel
- Mounting: On manifold rail with through-hole
- Pilot Exhaust Port: 82M5
- Product Weight: 244 g
- Maritime Certification: DNVGL-TAA000011J
- UL Approval: c UL us Recognized
