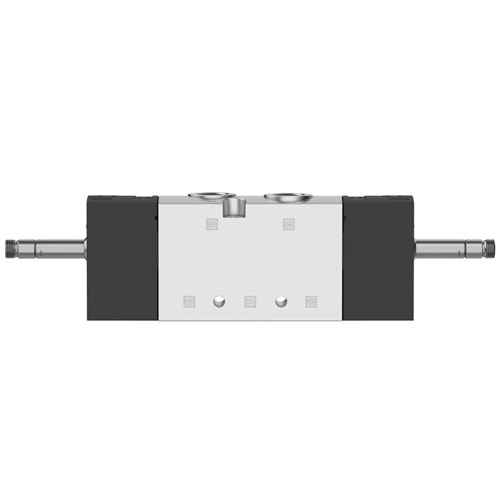

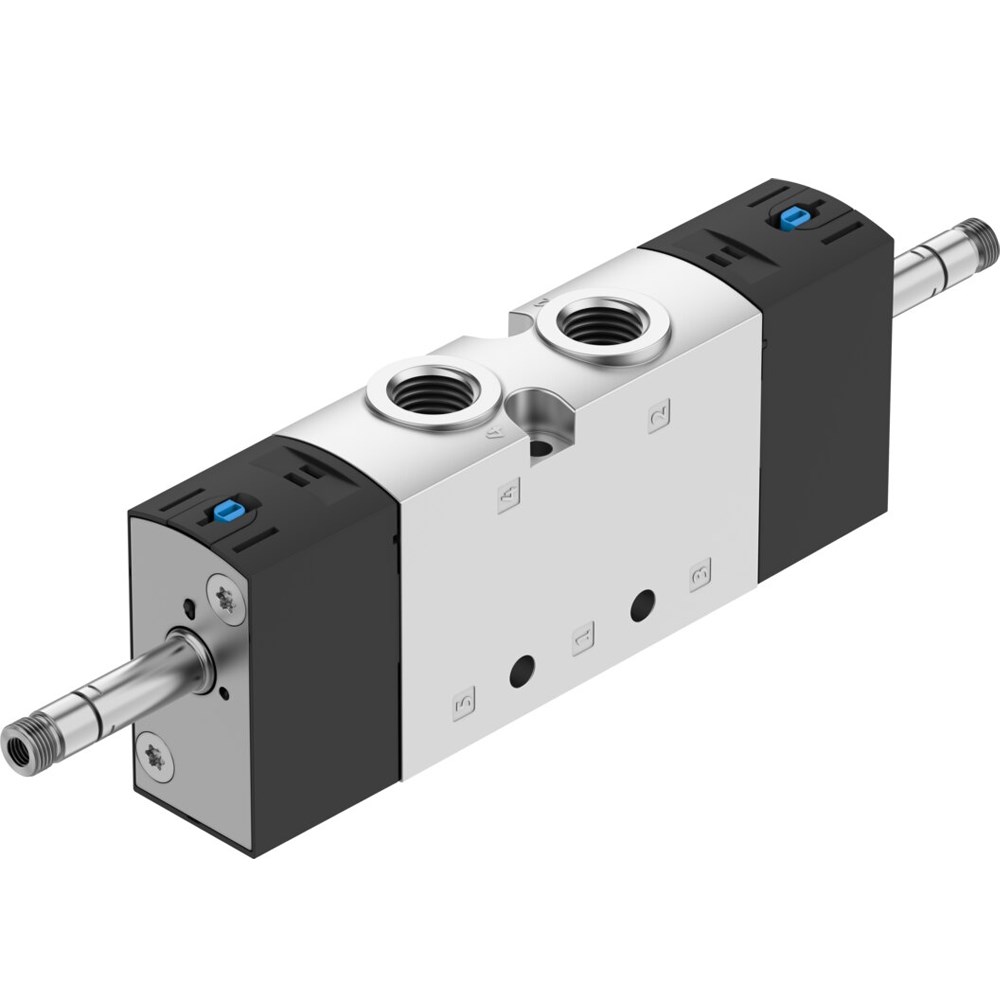

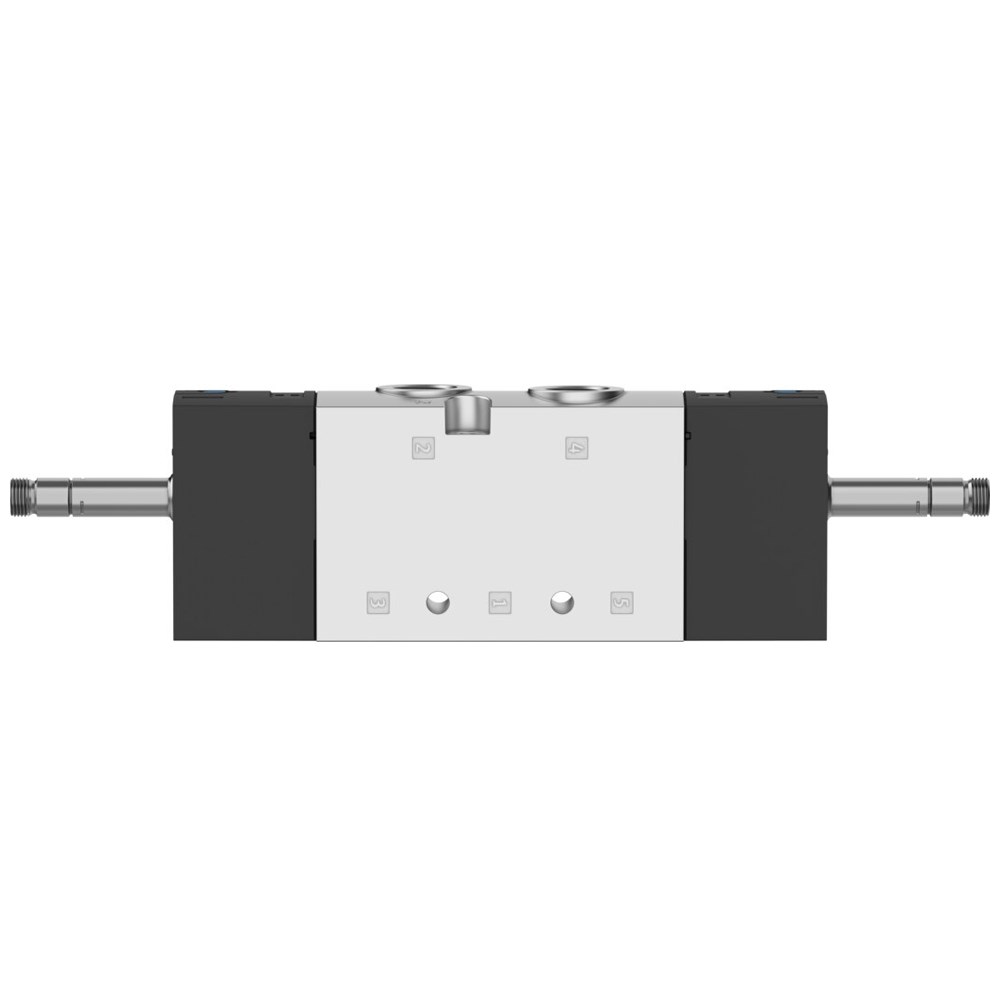

FESTO VUVS-L25-B52-D-G14-F8 Double Solenoid 5/2 Valve – 1/4" Port, Without Coil
The FESTO VUVS-L25-B52-D-G14-F8 is a bistable 5/2-way valve engineered for precise pneumatic control in demanding industrial applications. Featuring a piston gate design, pilot actuation, and optional exhaust flow control, it ensures reliable performance with fast switching and minimal leakage under moderate corrosion and vibration conditions.
Features
- Electrically actuated double solenoid for accurate bistable operation
- Pilot actuated with internal air supply for efficient control
- Optional flow control on exhaust ports for system flexibility
- Detenting or non-detenting manual override
- Soft-sealing principle for leak-free operation
- Vibration and shock tested for transport and industrial reliability
Specifications
- Valve Size: 26.5 mm
- Nominal Port Size: G1/4
- Standard Nominal Flow Rate: 1300 l/min (DIN 1343)
- Operating Pressure: 1.5–10 bar
- Switching Time Reversal: 11 ms
- Operating Medium: Compressed air to ISO 8573-1 [7:4:4]
- Temperature Range: -10°C to +60°C
- Cleanroom Class: ISO 14644-1 Class 6
- Housing Material: Painted
- Piston Material: Wrought aluminium alloy
- Seal Material: HNBR/NBR
- Screws Material: Galvanised steel
- Mounting: On manifold rail with through-hole

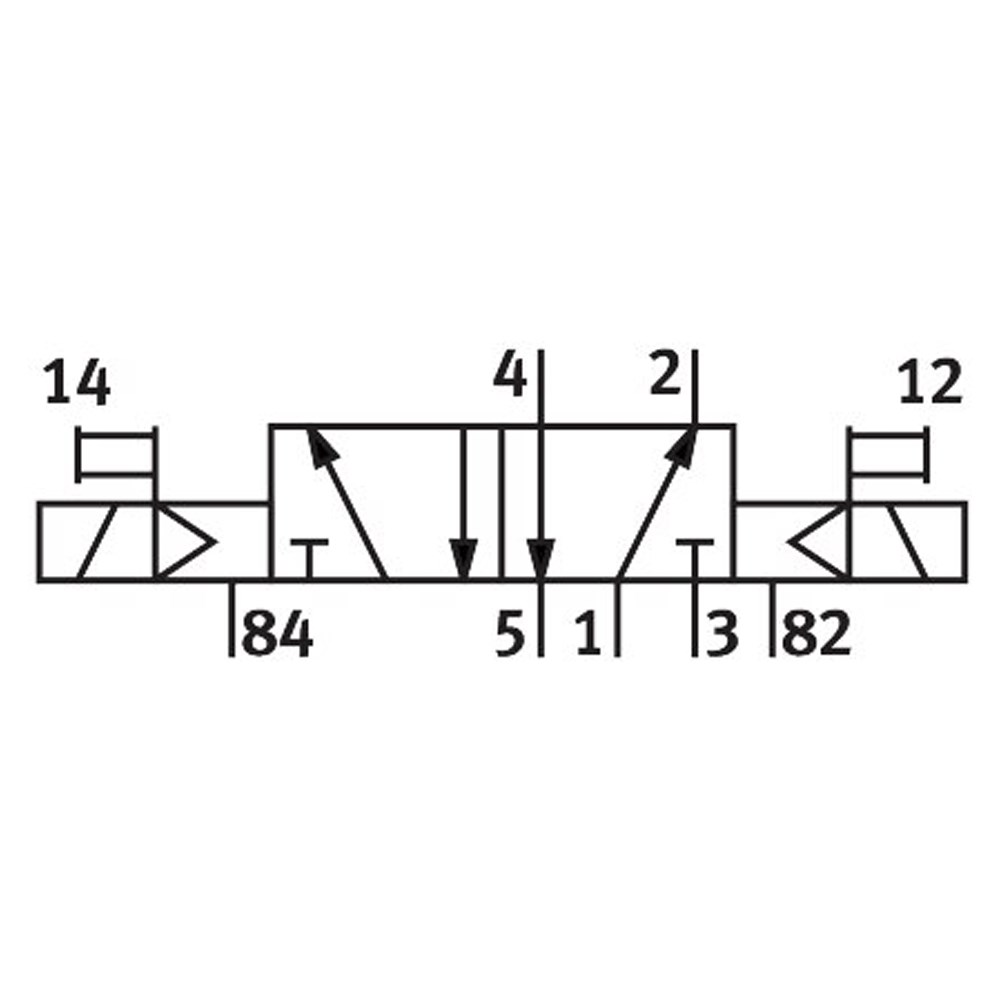

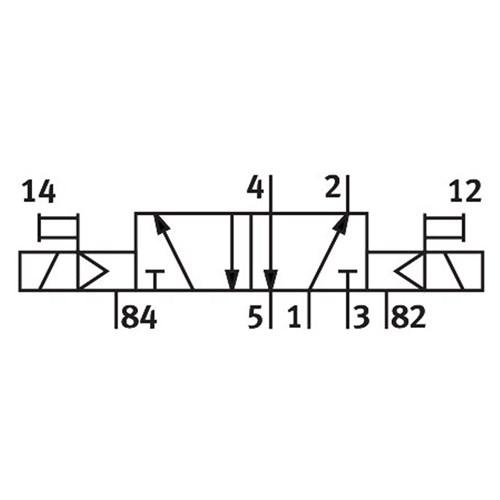

- Pilot Exhaust Ports: 82M5 and 84M5
- Product Weight: 322 g
- Maritime Certification: DNVGL-TAA000011J
