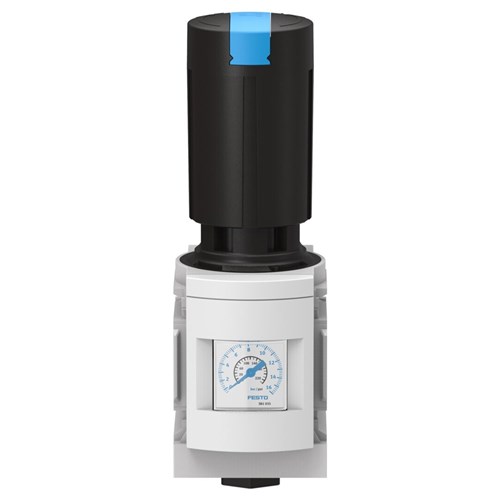

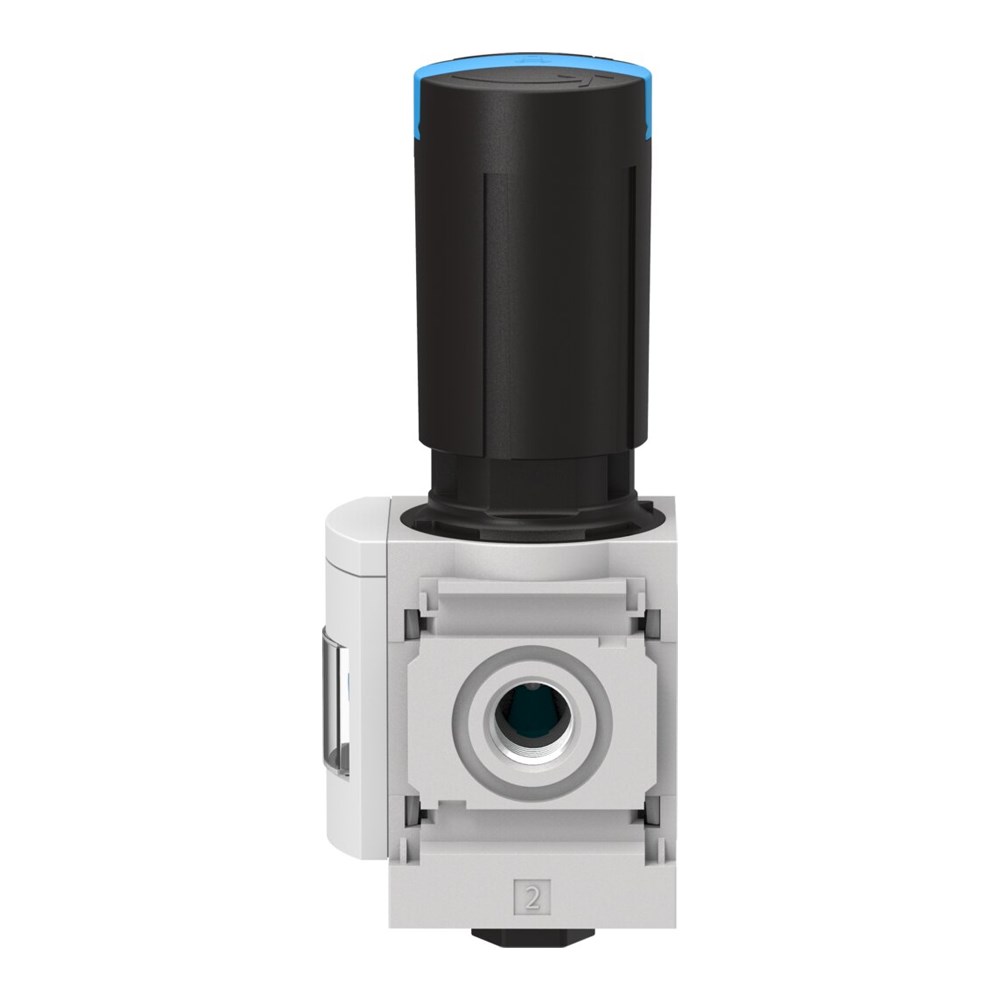

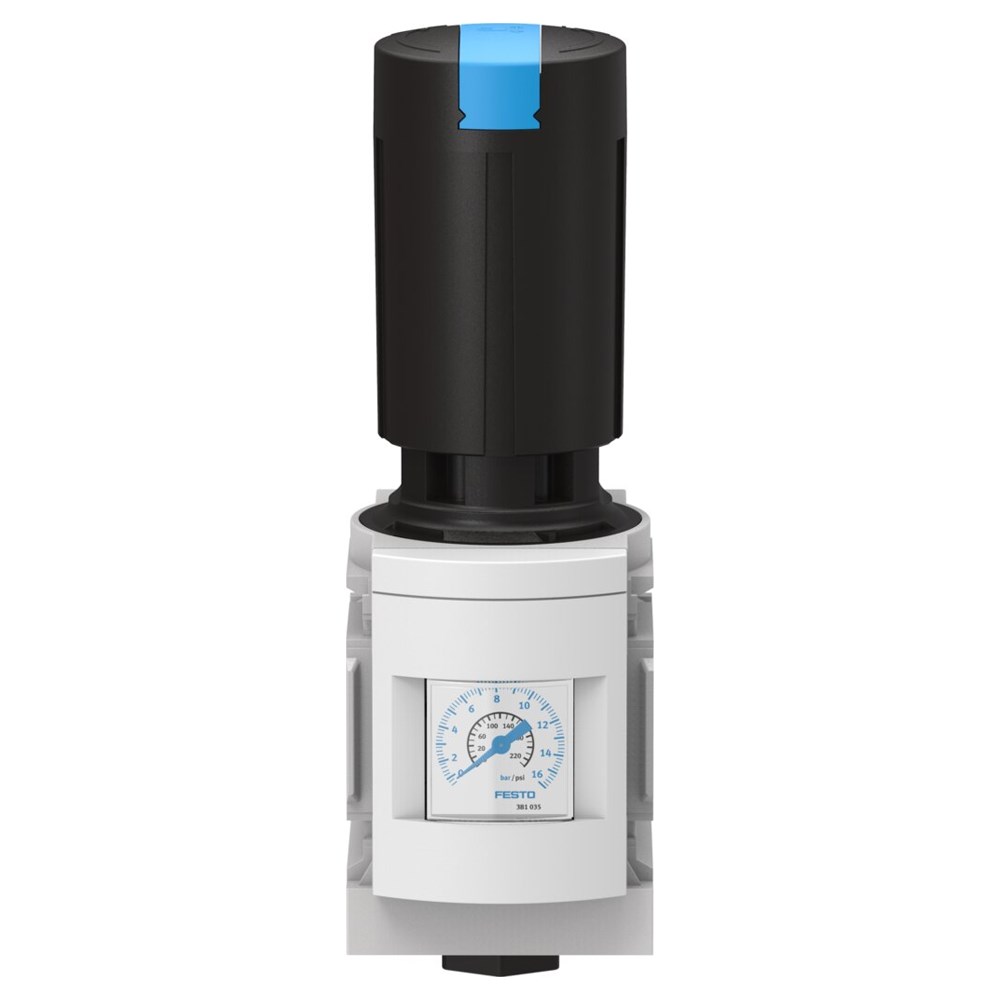

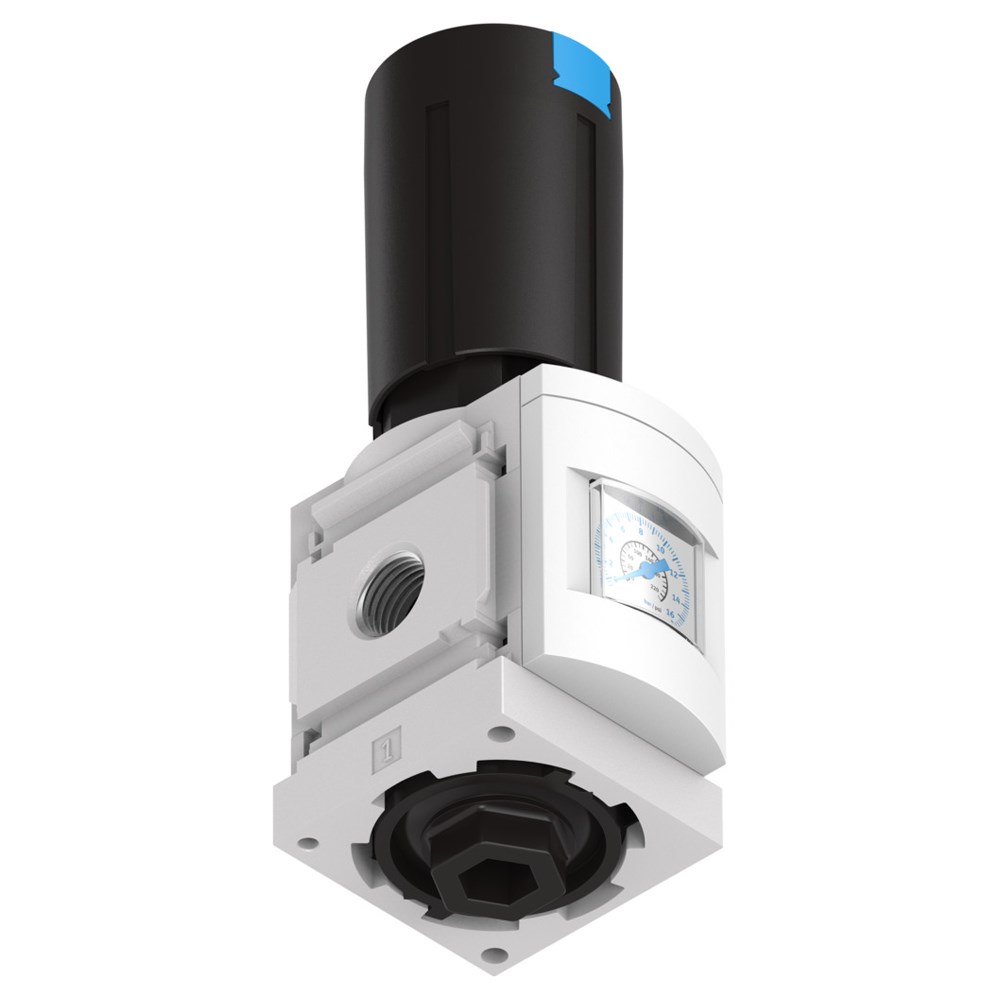

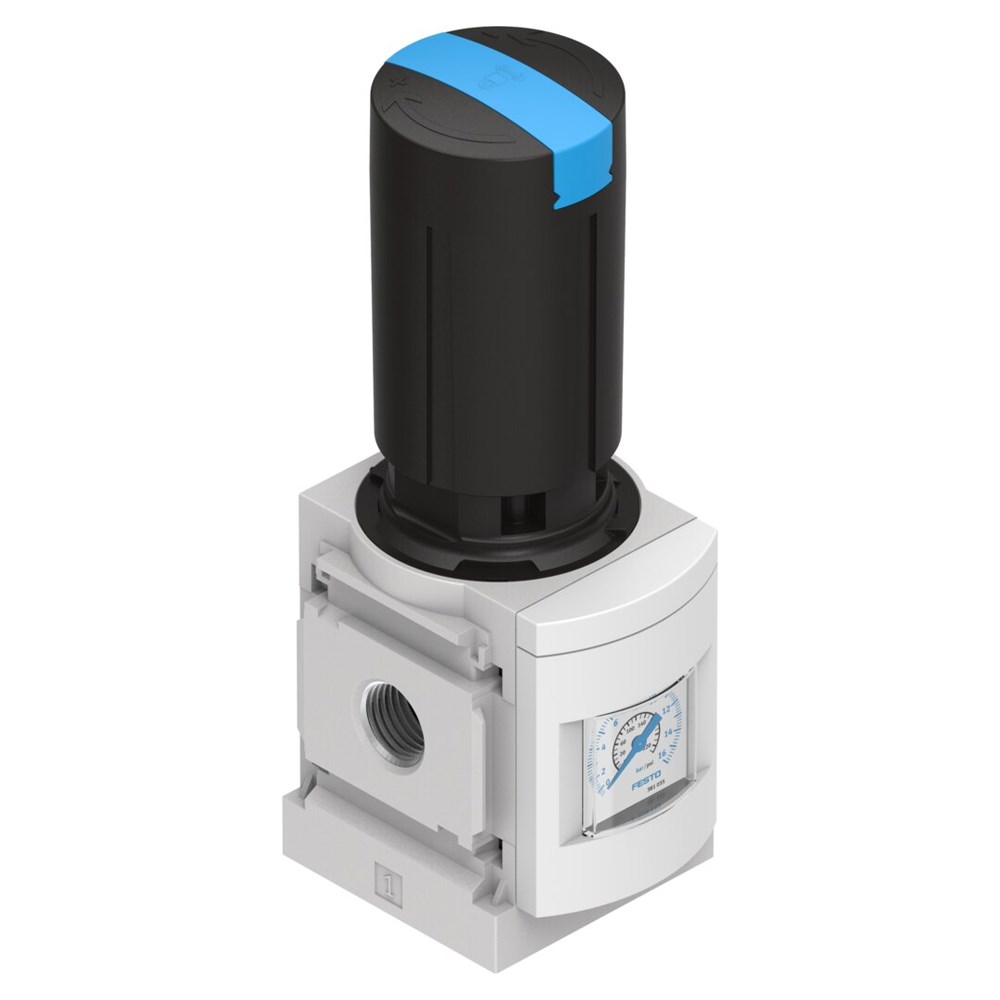

FESTO MS6-LR-1/2-D7-AS Pressure Regulator with Pressure Gauge – 1/2"
The FESTO MS6-LR-1/2 provides precise and stable pressure control for compressed air systems, featuring a built-in pressure gauge and rotary knob actuator lock. Designed for moderate corrosion resistance and easy installation, it ensures consistent output pressure for industrial automation and pneumatic applications.
Features
- Pressure regulator with integrated pressure gauge for accurate monitoring
- Rotary knob actuator lock with detent for safe adjustment
- Maintains constant output pressure via primary compensation and secondary venting
- Front panel or in-line mounting for versatile installation
- Suitable for lubricated or non-lubricated compressed air systems
- Corrosion-resistant design for reliable performance
Specifications
- Series Size: 6
- Operating Pressure: 0.8–20 bar
- Pressure Regulation Range: 0.5–12 bar
- Nominal Flow Rate: 5500 l/min (DIN 1343)
- Operating Medium: Compressed air to ISO 8573-1 [7:4:4], inert gases
- Temperature Range: -10°C to +60°C
- Pneumatic Connections: G1/2 port 1 and 2
- Housing Material: Die-cast aluminium
- Control Panel Material: PA POM
- Seal Material: NBR
- Membrane Material: NBR
- Separating Plate Material: POM
- Product Weight: 730 g
