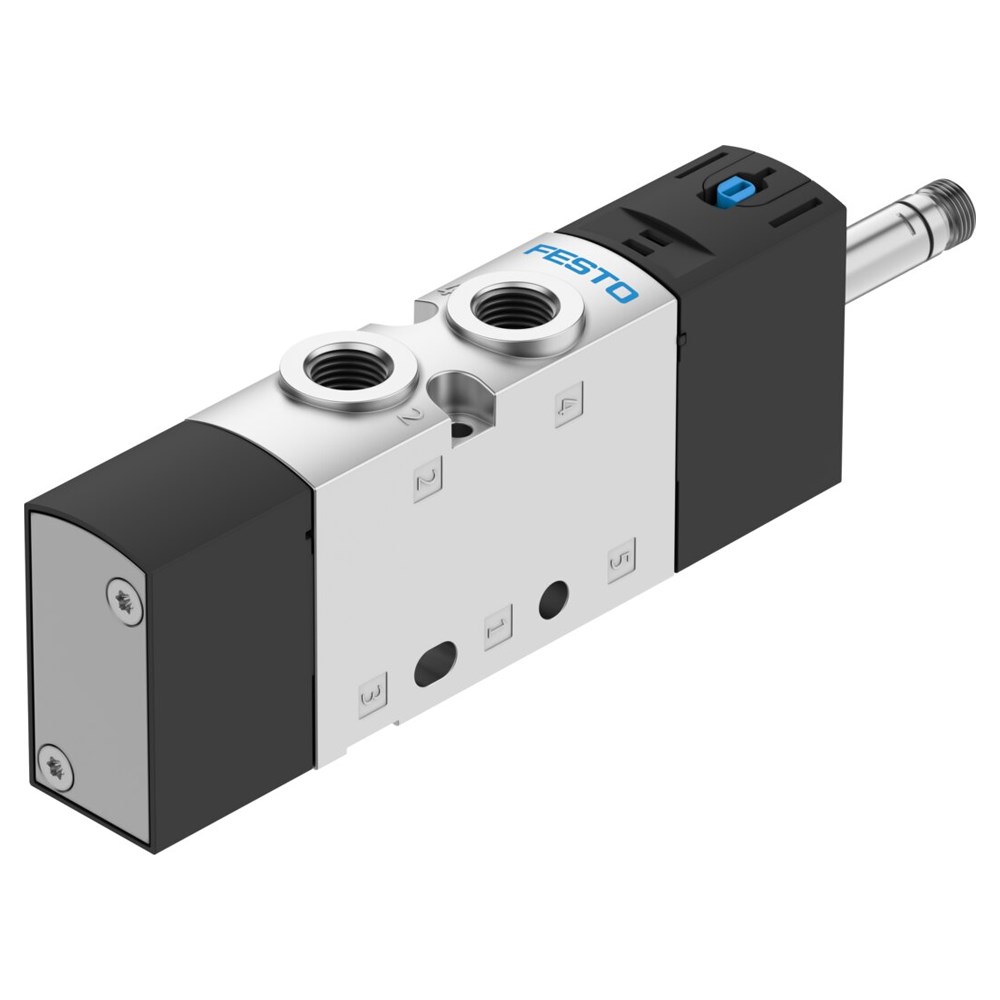

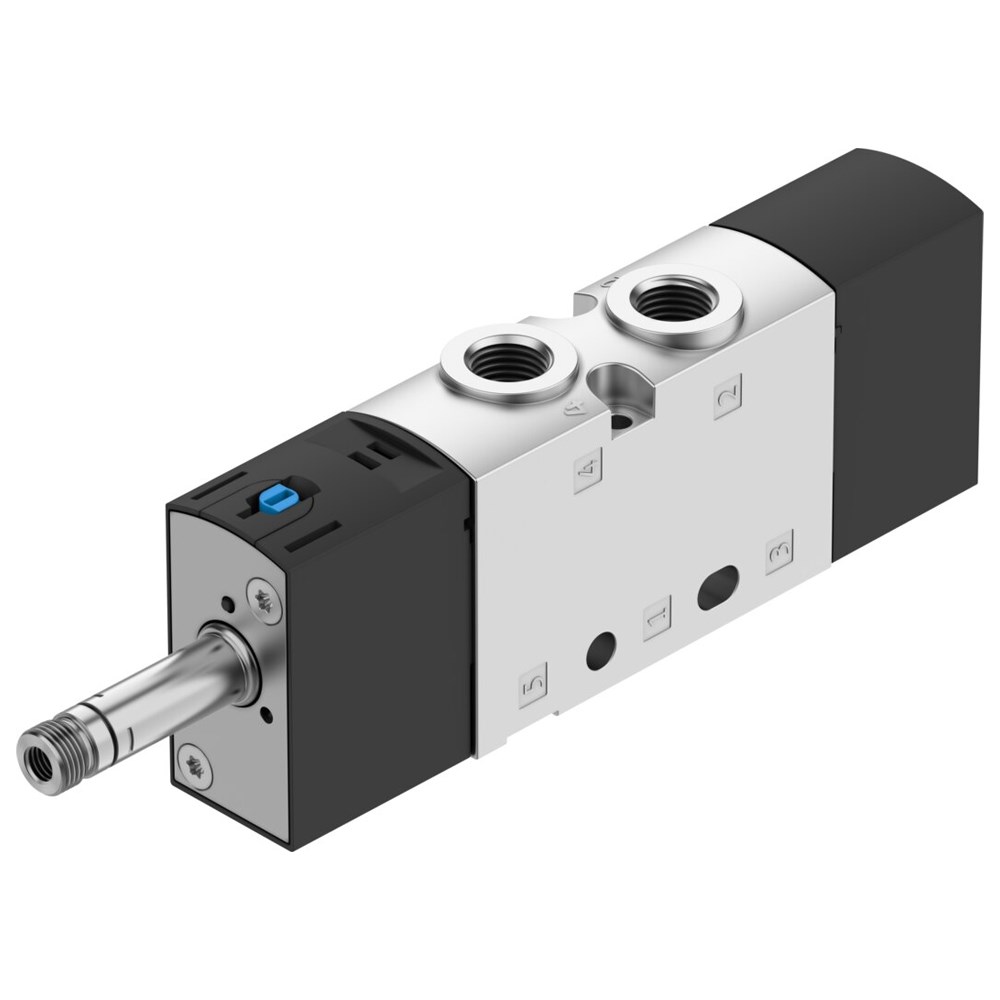

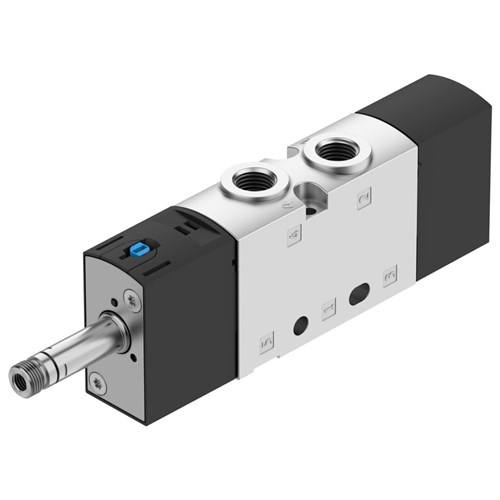

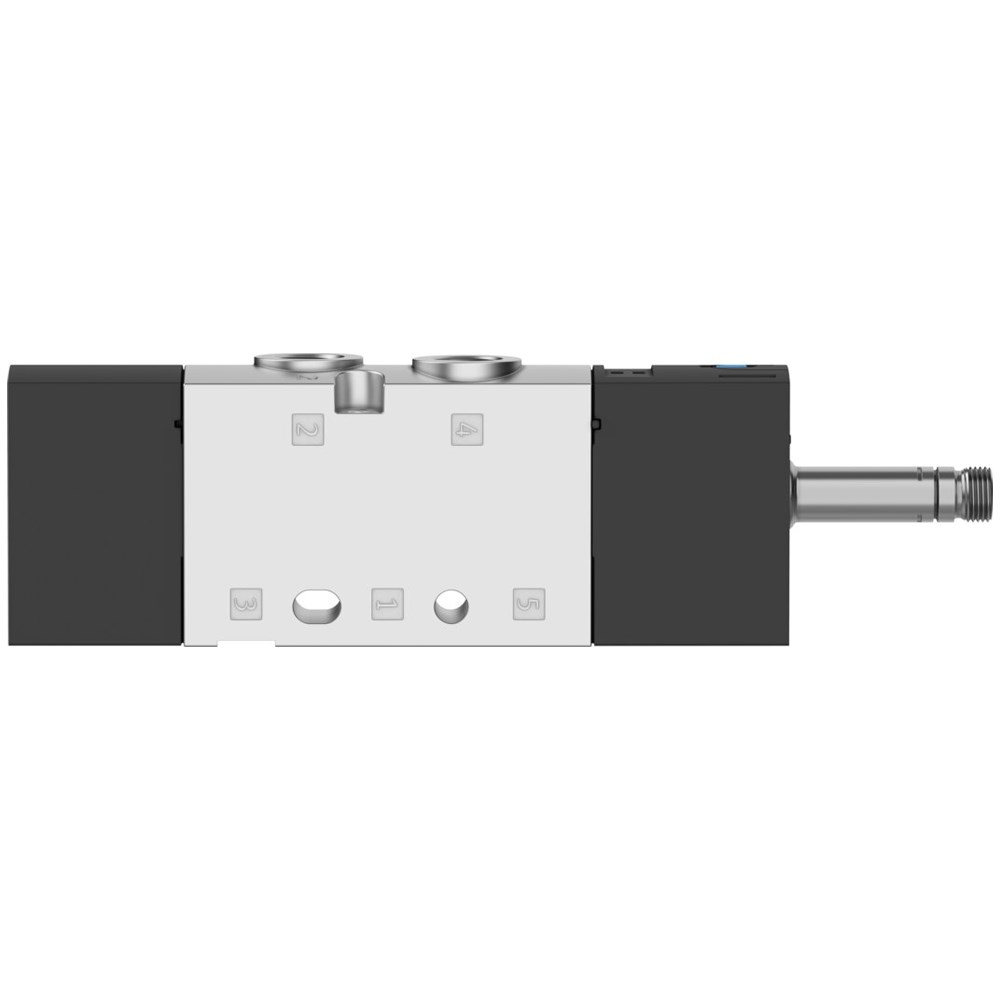

FESTO VUVS-L20-M52-MD-G18-F7 Single Solenoid 5/2 Valve – 1/8" Port, Without Coil

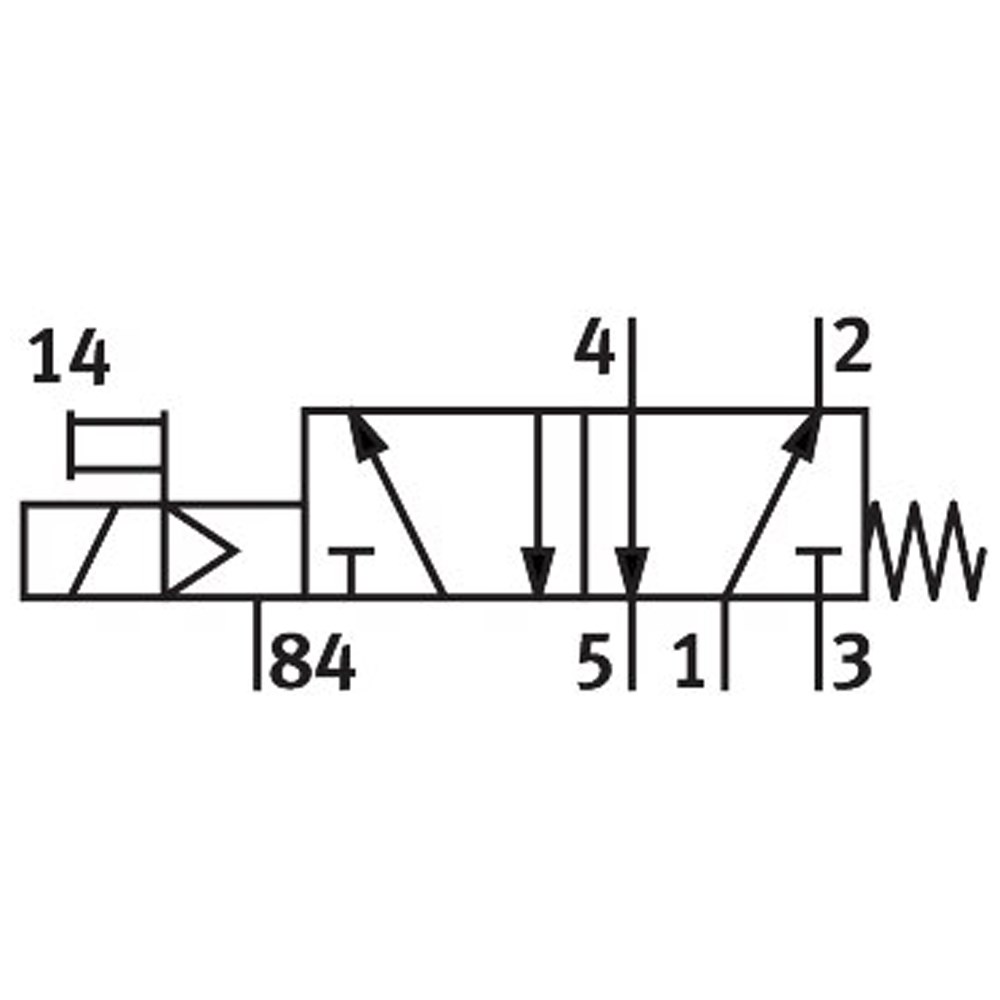

The FESTO VUVS-L20-M52-MD-G18-F7 is a compact, electrically actuated 5/2-way monostable valve designed for precise pneumatic control. With a piston gate design, mechanical spring reset, and optional flow control on the exhaust, it delivers reliable performance in automation and industrial applications, even under vibration and moderate corrosion conditions.
Features
- Electrically actuated single solenoid for controlled pneumatic operation
- Mechanical spring reset ensures reliable return
- Optional flow control on exhaust air for system flexibility
- Detenting or non-detenting manual override options
- Pilot actuated with internal pilot air supply
- Transport-tested vibration and shock resistance
- Soft-sealing principle for leak-free operation
Specifications
- Valve Size: 21 mm
- Nominal Port Size: G1/8
- Standard Nominal Flow Rate: 700 l/min (DIN 1343)
- Operating Pressure: 2.5–10 bar
- Switching Time On/Off: 12 ms / 44 ms
- Operating Medium: Compressed air to ISO 8573-1 [7:4:4]
- Temperature Range: -10°C to +60°C
- Cleanroom Class: ISO 14644-1 Class 6
- Housing Material: Painted
- Piston Material: Wrought aluminium alloy
- Seal Material: HNBR/NBR
- Screws Material: Galvanised steel
- Mounting: On manifold rail with through-hole
- Product Weight: 183 g
