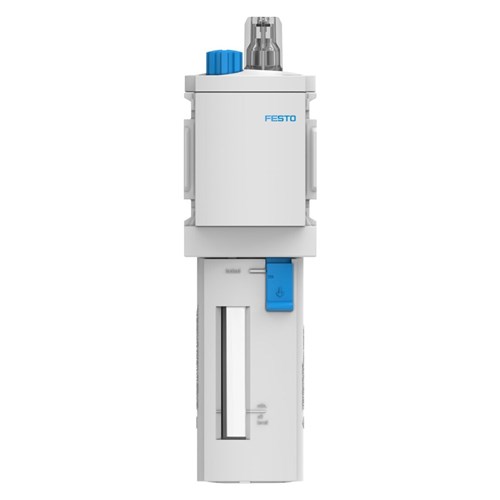

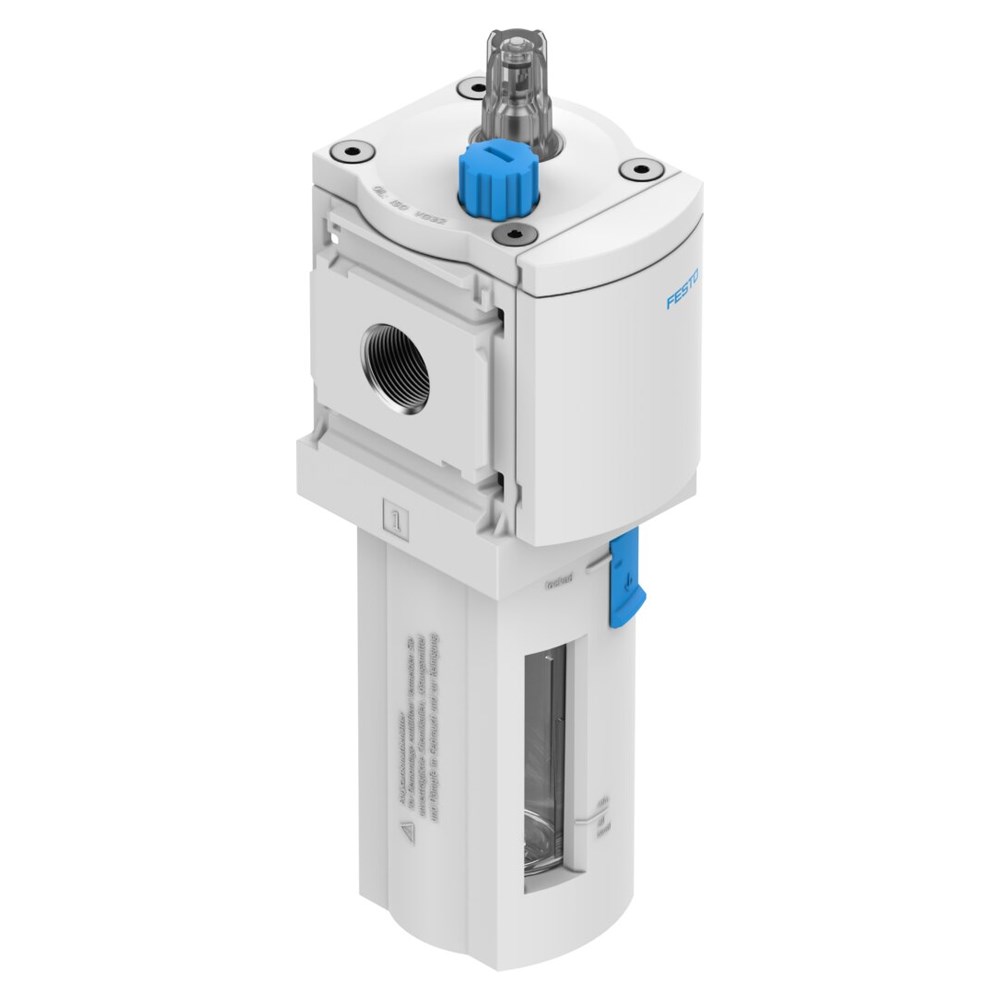

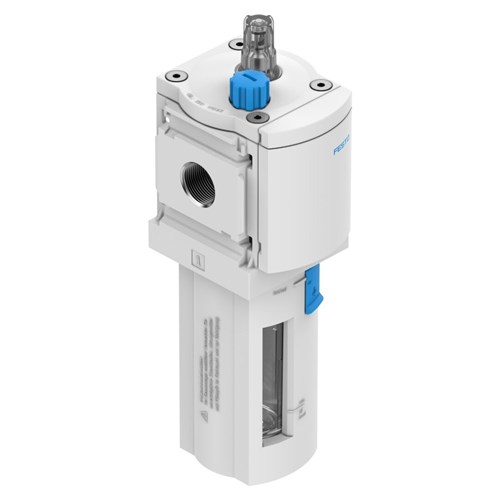

FESTO MS6-LOE-1/2-R Modular Lubricator – 1/2" MS Series
The FESTO MS6-LOE-1/2-R is a proportional mist lubricator designed to deliver precise lubrication for compressed air systems, helping to extend component life and reduce maintenance. With a 75 cm³ oil capacity, plastic bowl guard, and robust die-cast aluminium housing, it provides reliable operation and easy installation.
Features
- Proportional standard mist lubrication for consistent performance
- Plastic bowl guard for protection and safety
- Supports lubricated operation for system components
- In-line installation with flexible mounting options
- Suitable for compressed air and inert gases
- Corrosion-resistant design for moderate stress environments
Specifications
- Series Size: 6
- Operating Pressure: 1–16 bar
- Standard Nominal Flow Rate: 7200 l/min (DIN 1343)
- Minimum Flow Rate for Lubricator Function: 50 l/min
- Oil Capacity: 75 cm³
- Operating Medium: Compressed air to ISO 8573-1 [7:4:4], inert gases
- Oil Viscosity: ISO VG 32
- Temperature Range: -10°C to +60°C
- Pneumatic Connections: G1/2 port 1 and 2
- Housing Material: Die-cast aluminium
- Bowl Material: PC
- Product Weight: 600 g
