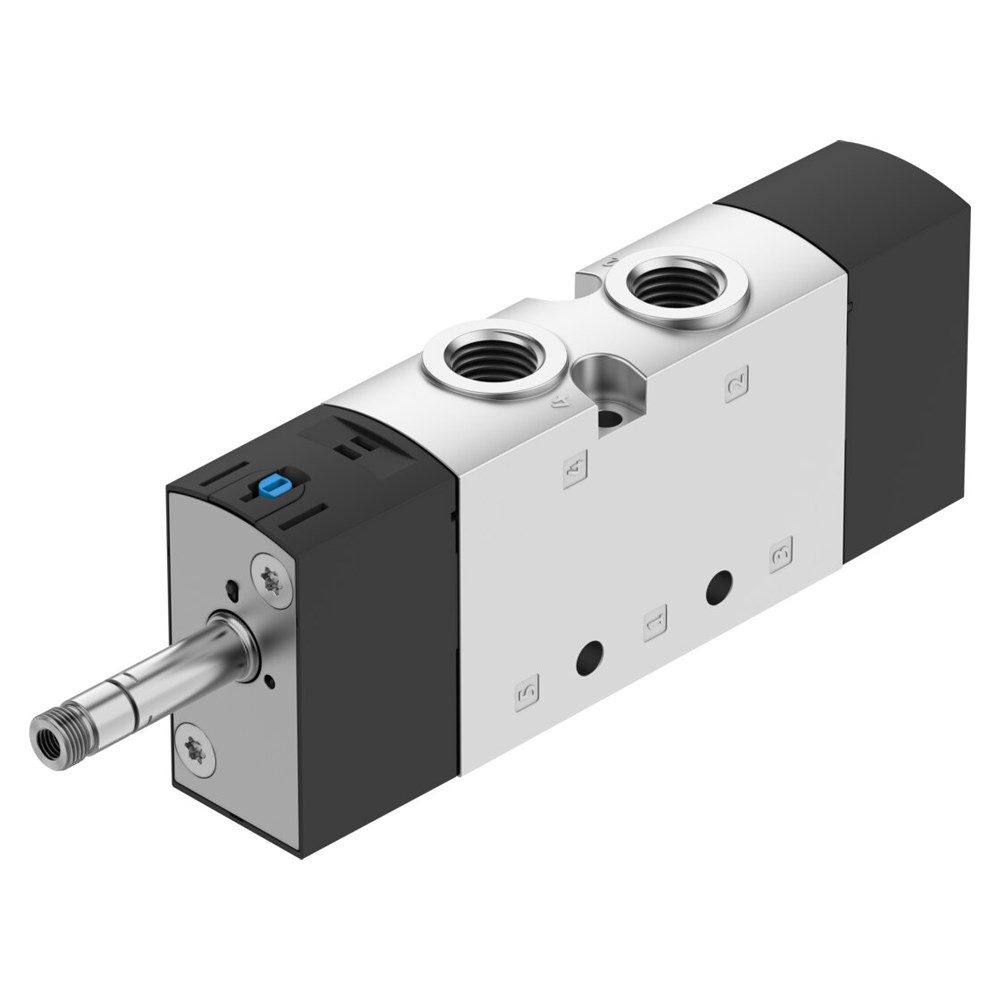

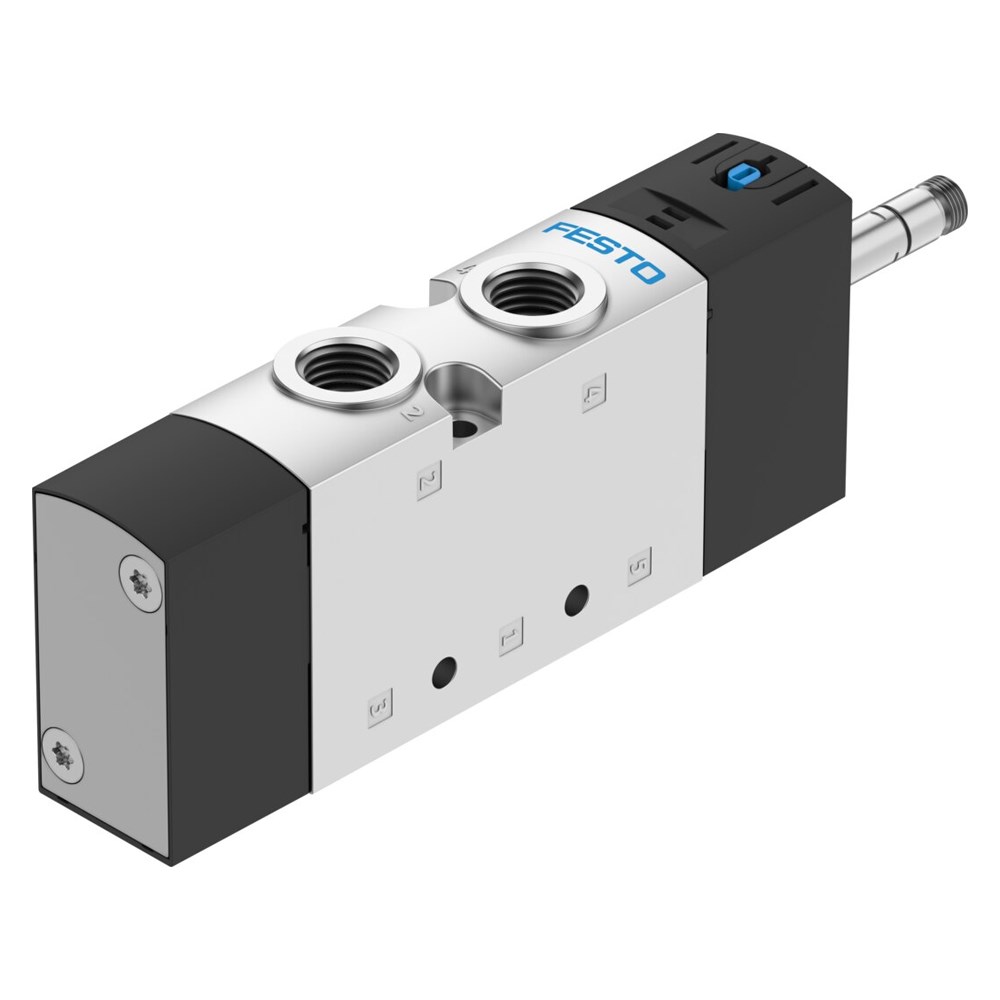

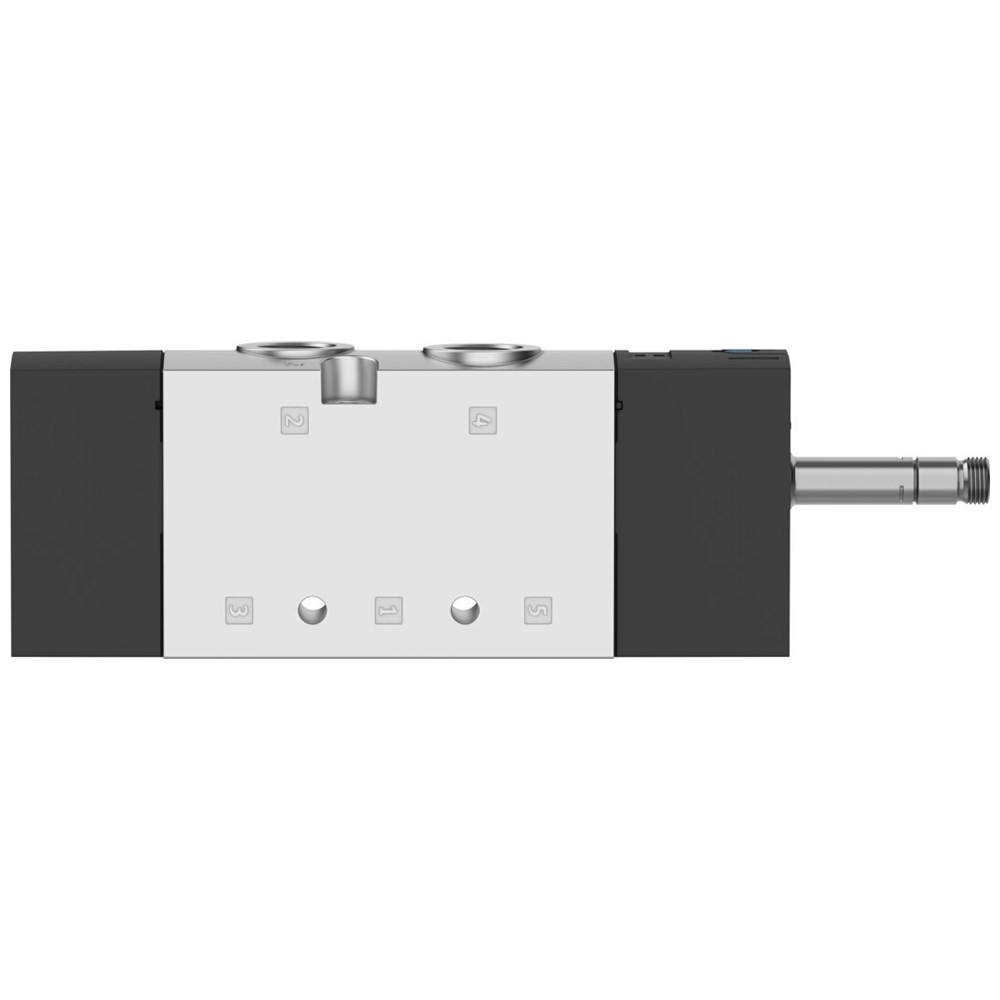

FESTO VUVS-L25-M52-MD-G14-F8 Single Solenoid 5/2 Valve – 1/4" Port, Without Coil

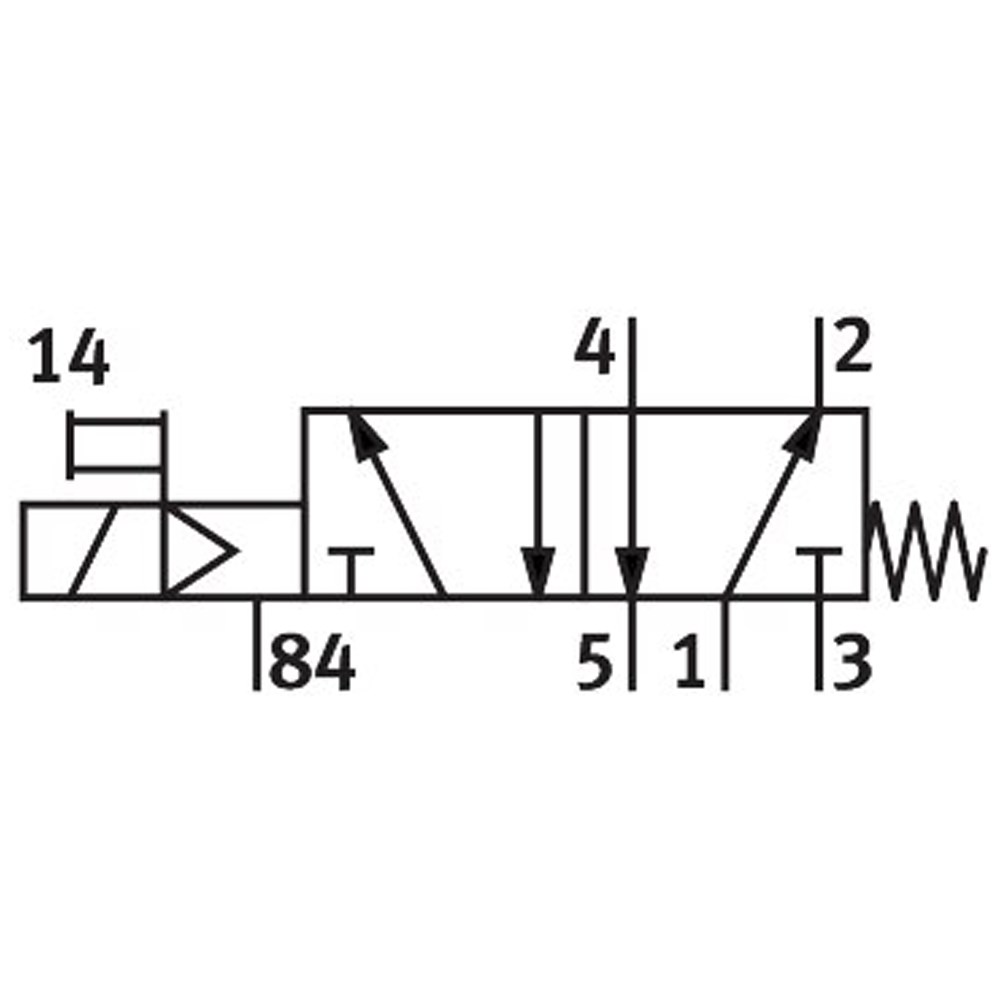

The FESTO VUVS-L25-M52-MD-G14-F8 is a reliable 5/2-way monostable valve designed for precise pneumatic control in industrial applications. Featuring a piston gate design, mechanical spring reset, and optional exhaust flow control, it ensures efficient, leak-free operation under vibration, shock, and moderate corrosion conditions.
Features
- Electrically actuated single solenoid for accurate pneumatic operation
- Mechanical spring reset for dependable return
- Optional flow control on exhaust air for system flexibility
- Detenting or non-detenting manual override
- Pilot actuated with internal pilot air supply
- Soft-sealing principle for reliable leak-free performance
- Tested for vibration and shock resistance
Specifications
- Valve Size: 26.5 mm
- Nominal Port Size: G1/4
- Standard Nominal Flow Rate: 1300 l/min (DIN 1343)
- Operating Pressure: 2.5–10 bar
- Switching Time On/Off: 12 ms / 47 ms
- Operating Medium: Compressed air to ISO 8573-1 [7:4:4]
- Temperature Range: -10°C to +60°C
- Cleanroom Class: ISO 14644-1 Class 6
- Housing Material: Painted
- Piston Material: Wrought aluminium alloy
- Seal Material: HNBR/NBR
- Screws Material: Galvanised steel
- Mounting: On manifold rail with through-hole
- Pilot Exhaust Port: 84M5
- Product Weight: 311 g
- Maritime Certification: DNVGL-TAA000011J
- UL Approval: c UL us Recognized
