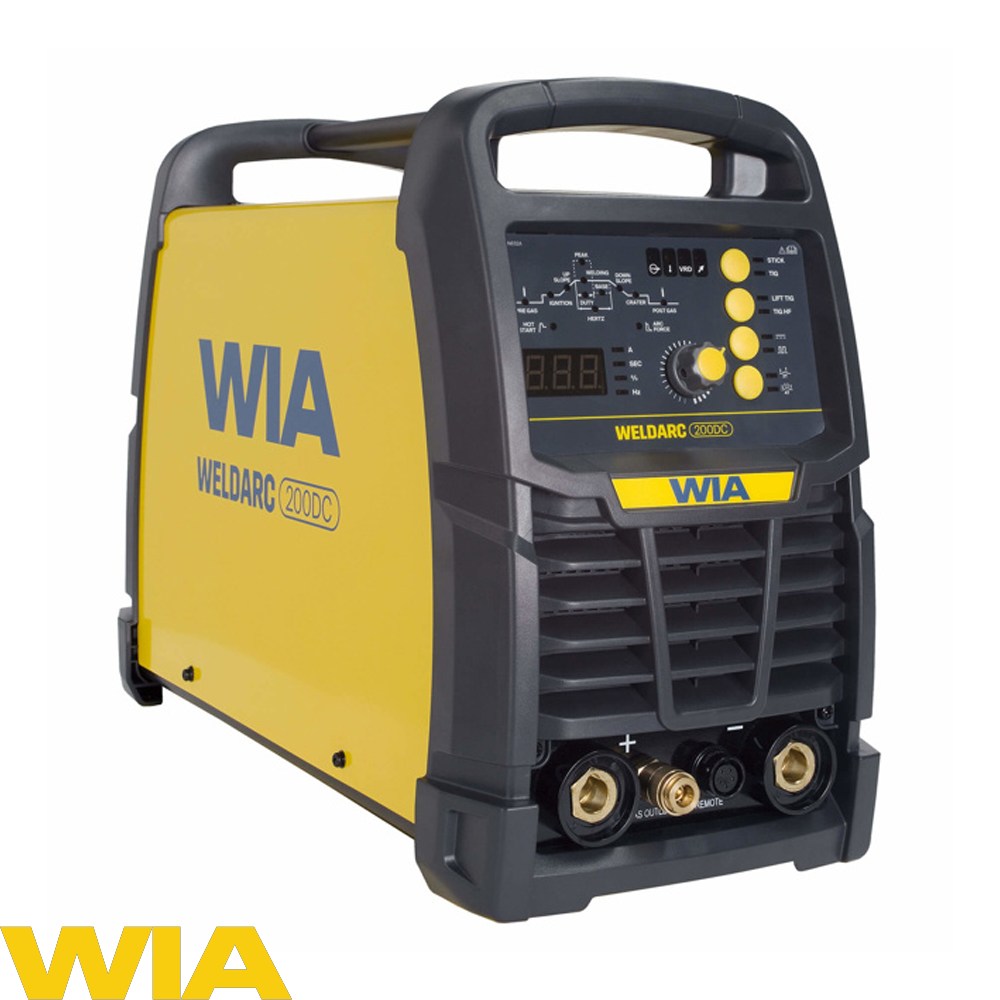

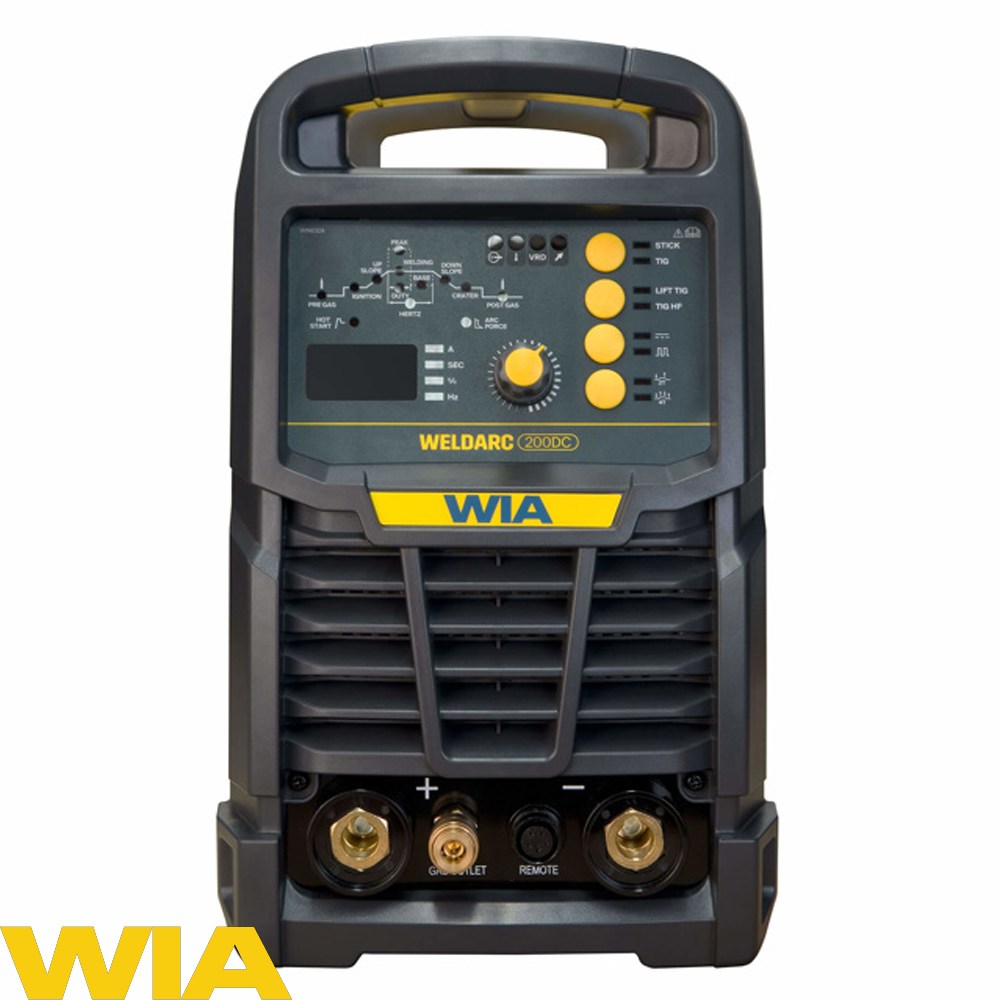

Weldarc 200 DC Stick/TIG Welder
Take control of your weld quality with the Weldarc 200 DC Stick/TIG Welder. Designed for intermediate to professional welders, this versatile unit delivers smooth, stable arc performance with HF Start and Pulse TIG for superior heat control and clean, consistent results. Whether you're fabricating stainless steel, working in motorsports, or handling repair and maintenance jobs, the Weldarc 200 DC offers professional-grade capability in a compact, portable 12kg machine. Built with quality components and backed by a 3-year warranty, it’s the smart choice for welders who want performance without compromise.
Features
- HF Start TIG for non-contact arc starting
- Pulse TIG for improved heat control and weld penetration
- Dual Stick & TIG functionality
- Supports optional foot control for precise amperage adjustment
- Compact, portable 12kg design
- 240V single-phase operation
- 3-year warranty

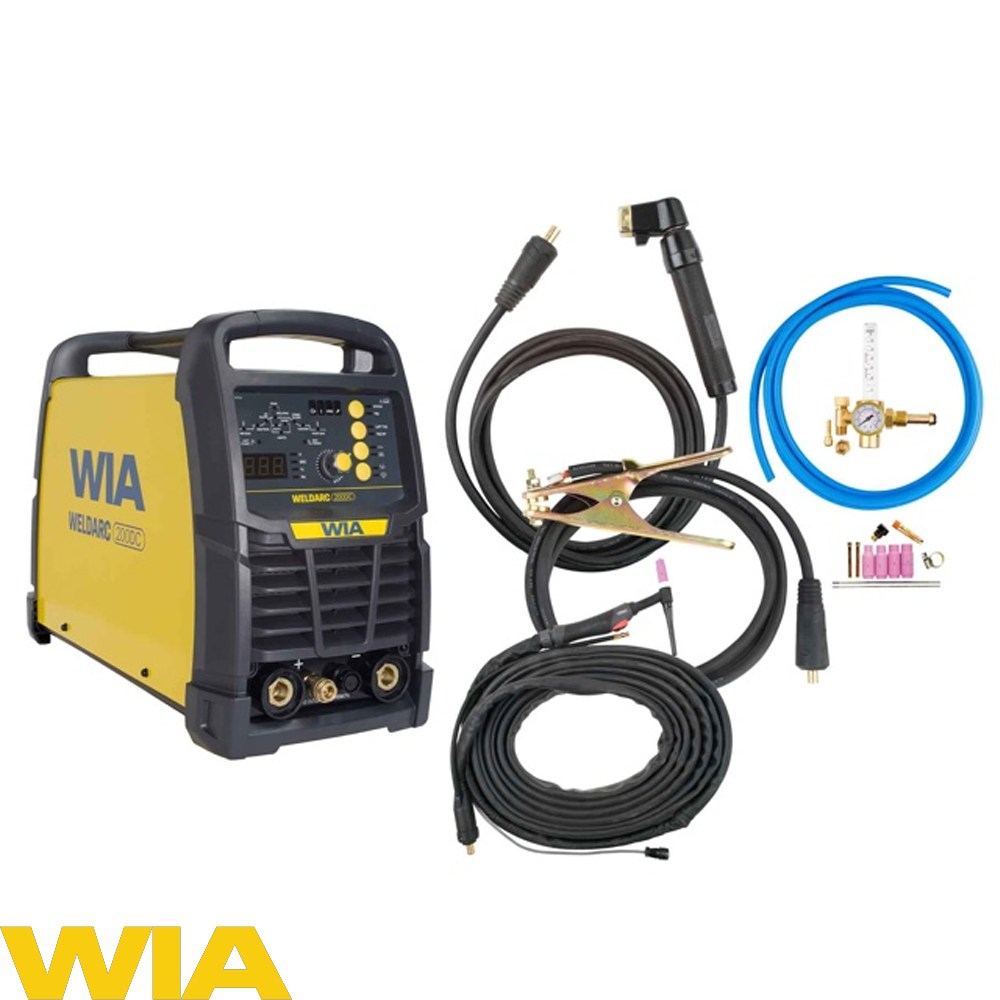

Includes
- Work Clamp – 3m
- Industrial Twist Lock Electrode Holder – 4m
- TIG Torch – 8m
- TIG Starter Kit
- Argon Gas Regulator
- Gas Hose
- Optional Extra: Foot Control (AA76)
Specifications
- Machine
- Primary Voltage 240VAC 50/60Hz
- Rated Primary Current 14A
- Max Primary Current 25A
- Recommended Generator Power 6kVa
- Supply Plug 15A
- Weight 12kg
- Stick Output
- 20A/20.8V – 180A/27.2V
- Rated Output @ 40°C (10min)
- 180A/27.2V @ 30%
- 127A/25V @ 60%
- 99A/24V @ 100%
- TIG Output
- 10A/10.4V – 200A/18V
- Rated Output @ 40°C (10min)
- 200A/18V @ 30%
- 141A/15.6V @ 60%
- 110A/14.4V @ 100%
- Material Thickness Range Welds up to 8mm steel plate, single pass
