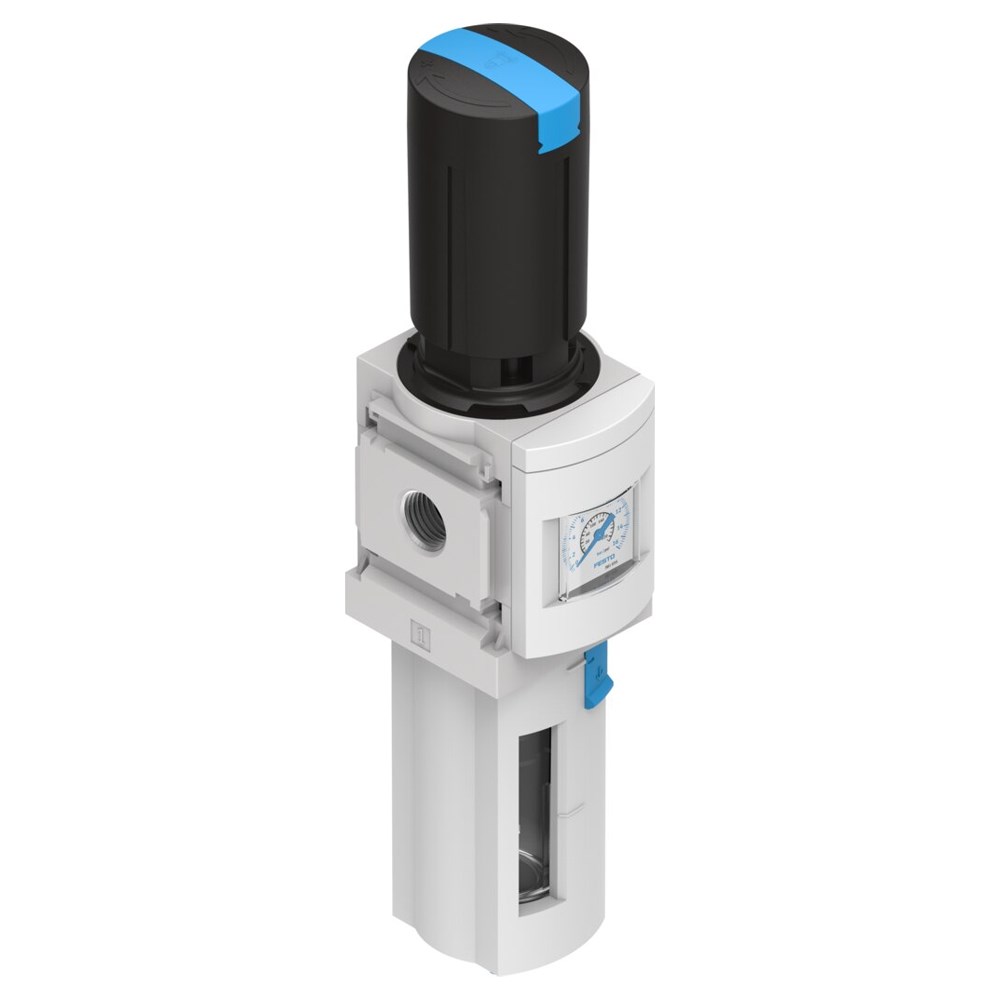

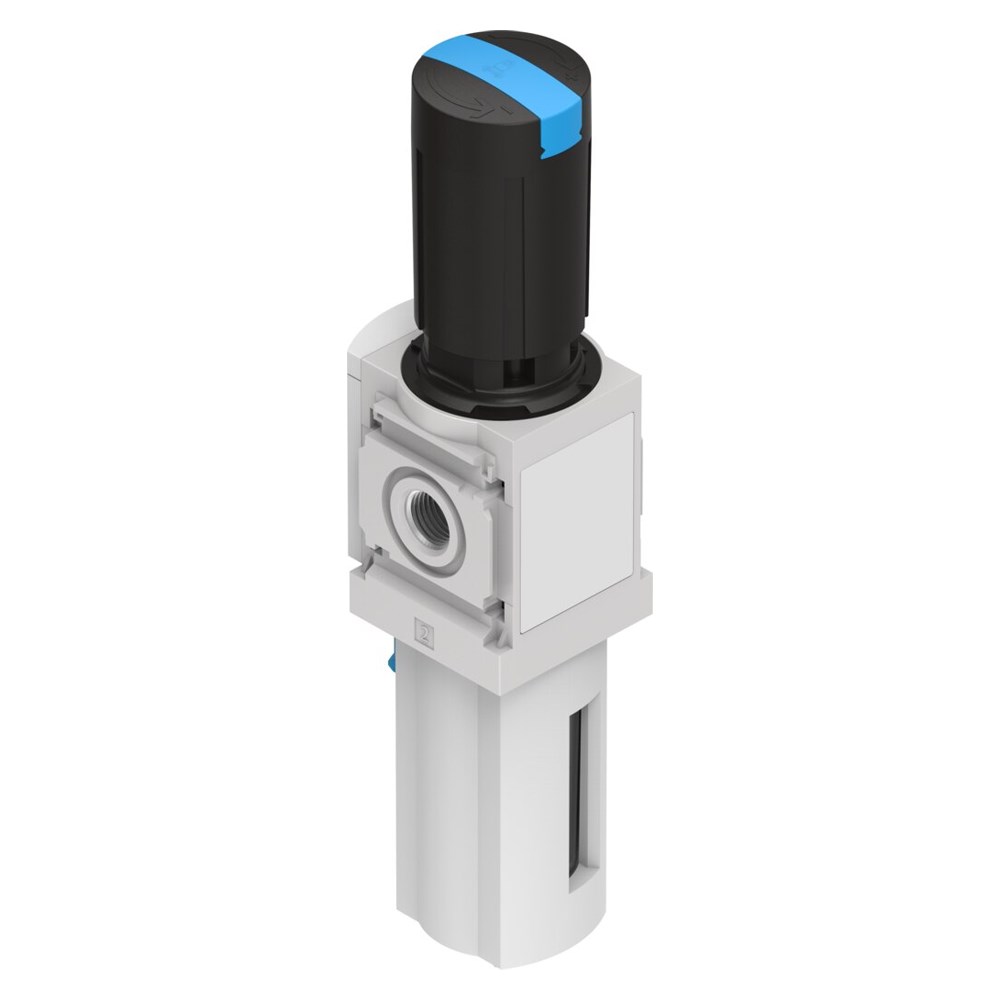

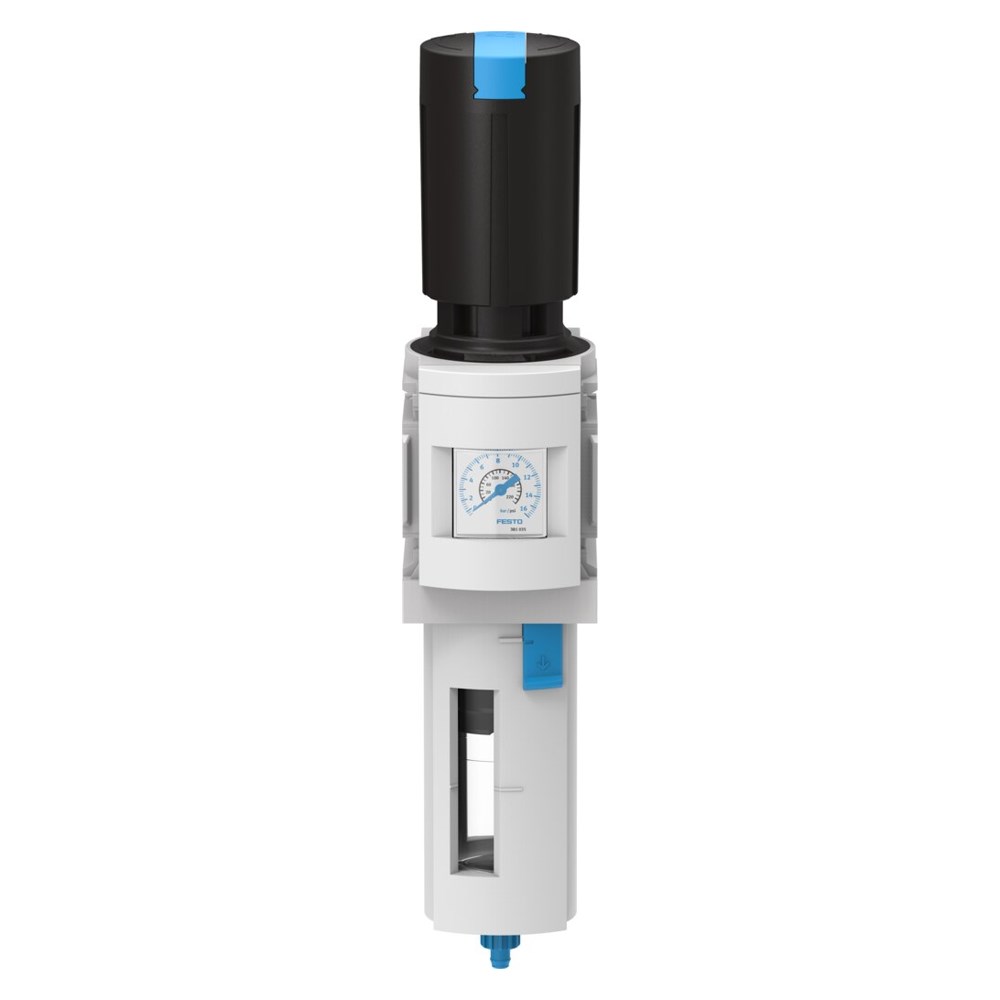

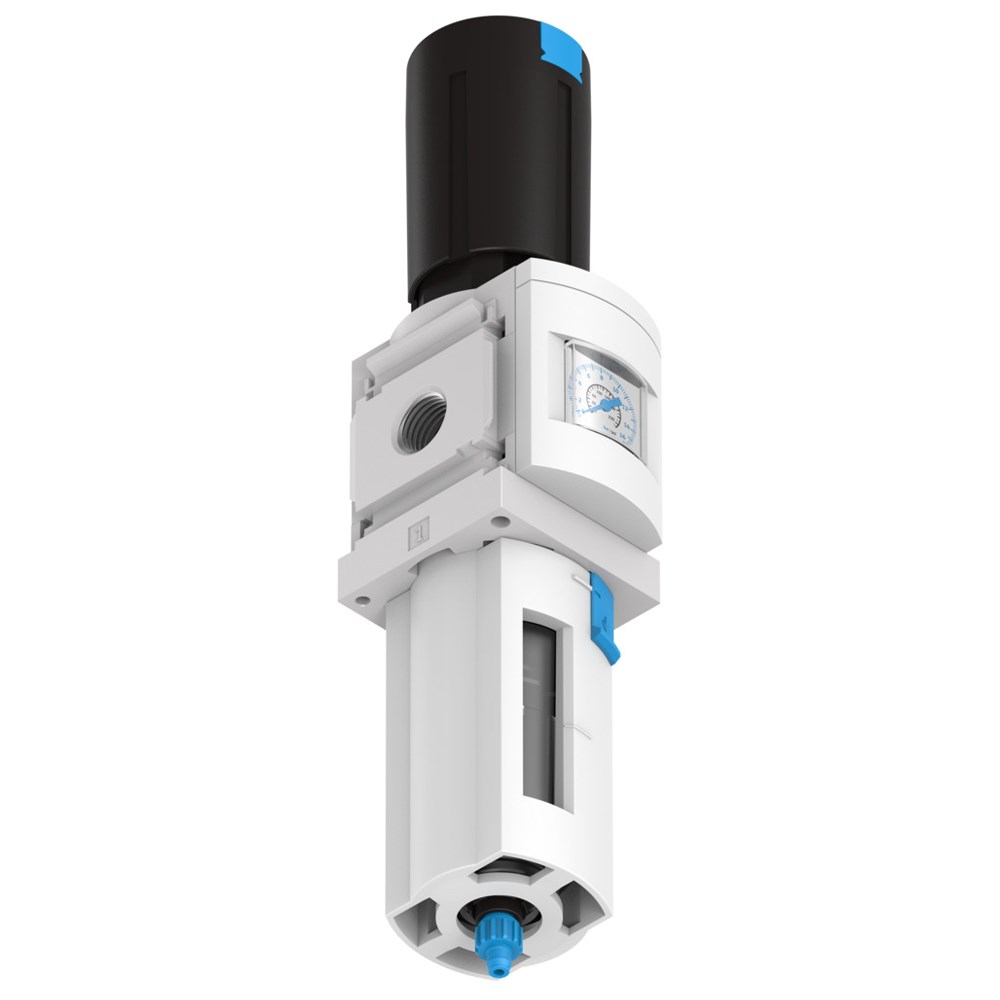

FESTO MS6-LFR-1/2-D7-ERM-AS Filter Regulator with Manual Drain and Pressure Gauge
The FESTO MS6-LFR-1/2 combines a filter and regulator in one compact unit, delivering clean, consistent compressed air for industrial applications. With a 40 µm filtration grade, manual condensate drain, and integrated pressure gauge, it ensures reliable air quality and precise pressure control in systems requiring moderate corrosion resistance.
Features
- Filter regulator with integrated pressure gauge for easy monitoring
- Manual condensate drain for controlled removal of moisture
- Rotary knob actuator lock with detent for safe adjustment
- Plastic bowl guard protects filter and operator
- Maintains constant output pressure with secondary venting
- Front panel or in-line mounting for flexible installation
Specifications
- Series Size: 6
- Operating Pressure: 0.8–20 bar
- Pressure Regulation Range: 0.5–12 bar
- Nominal Flow Rate: 4500 l/min (DIN 1343)
- Condensate Volume: Max. 38 ml
- Filtration Grade: 40 µm
- Degree of Condensate Separation: >75%
- Pneumatic Connections: G1/2 port 1 and 2
- Operating Medium: Inert gases
- Air Purity Class: ISO 8573-1 [7:4:4]
- Temperature Range: -10°C to +60°C
- Housing Material: Die-cast aluminium
- Bowl Material: PC
- Control Panel Material: PA POM
- Seal Material: NBR
- Product Weight: 875 g
